POLE SYSTEM

STABLE POSITIONING OF CAMERA
POLE SYSTEM

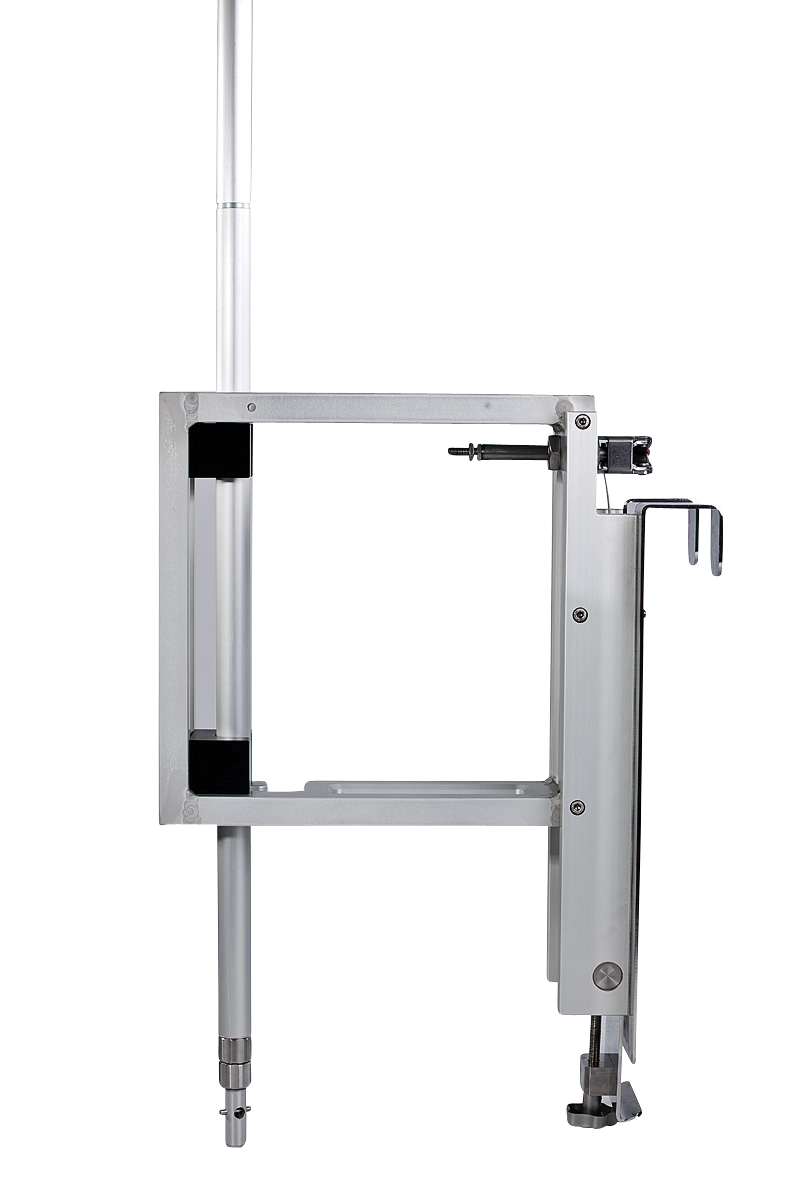

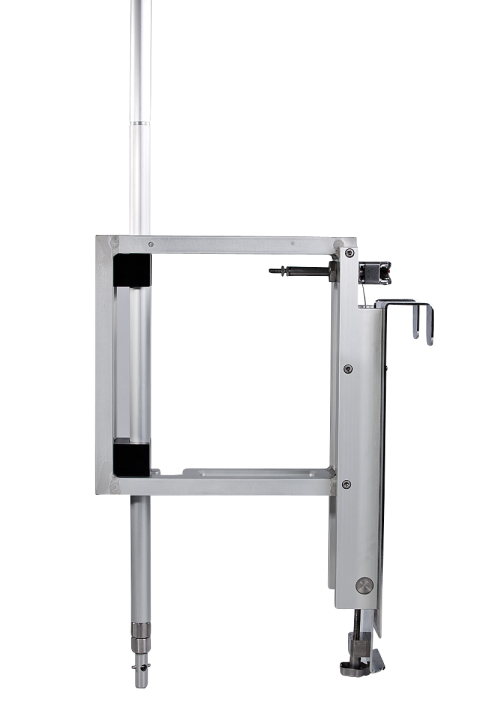

The Ahlberg Cameras camera pole system is a rigid pole system for keeping strict alignment when carrying a camera during underwater inspection use. It is featured with a lifting hook and a camera adapter for easy handling.

Applications

  • Suitable for:
  • -IVVI (In Vessel Visual Inspection)
  • -Fuel assembly inspection
  • -Control rod inspection
  • Rigid system with double security joints for precise alignment

Benefits

  • Available in stainless steel or aluminum
  • Brackets, holders, hooks or other parts can be custom designed by request
  • Possibility to connect additional poles and thus vary the length of the system

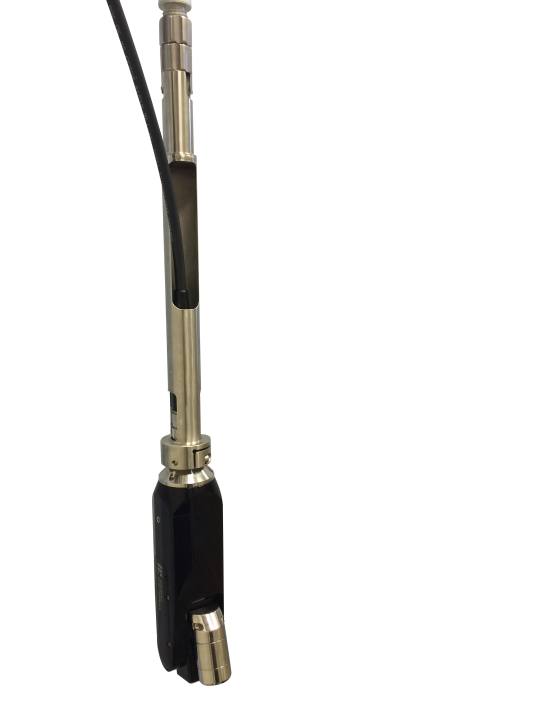

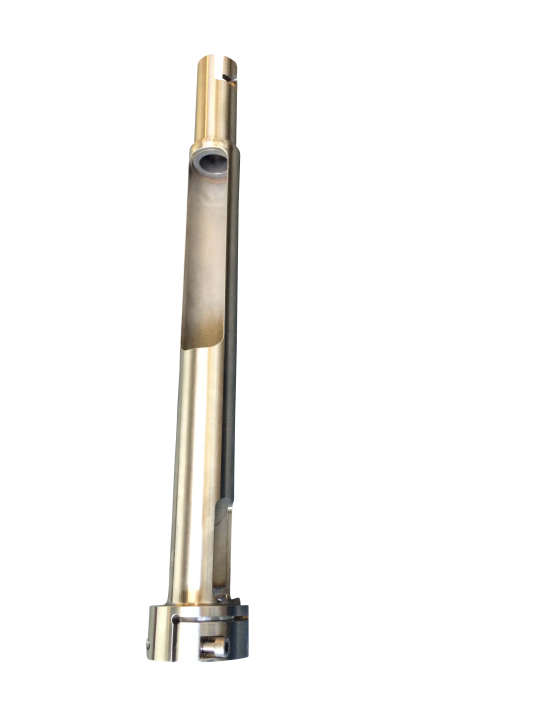

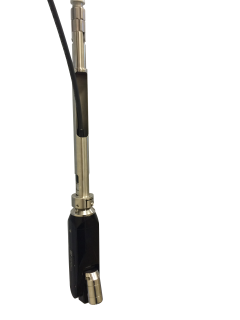

  • The camera adaptor at the end of the pole system is designed to fit to most Ahlberg Cameras models
  • When connected the system has no loose parts
  • The poles are hollow for water inlet/outlet

Specifications

Material
Stainless steel EN 1.4301/AISI 304 or aluminum EN 6082
Pole lengths stainless
1m, 2m, 3m (39.4", 78.8", 118"). Other lengths, up to 6m, can be manufactured on request.
Pole lengths aluminum
1m, 2m (39.4", 78.8"). Other lengths, up to 6m, can be manufactured on request.
Diameter of poles stainless
44 mm (1.73")
Diameter of poles aluminum
35 mm (1.38")
Pole weights stainless
1m = 2.4 kg (5.3lbs) , 2m = 3.9 kg (8.6lbs) and 3m = 5.5kg (12.1 lbs)
Pole weights aluminum
1m = 0.9 kg (1.16lbs) , 2m = 1.5 kg (3.5lbs)
Camera adapter weight
1.3 kg (2.9 lbs)

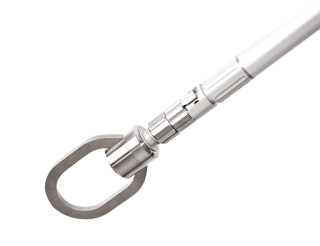

Lifting eye weight
1.2 kg (2.6 lbs)
Maximum recommended lifting weight
100 kg (220 lbs)
