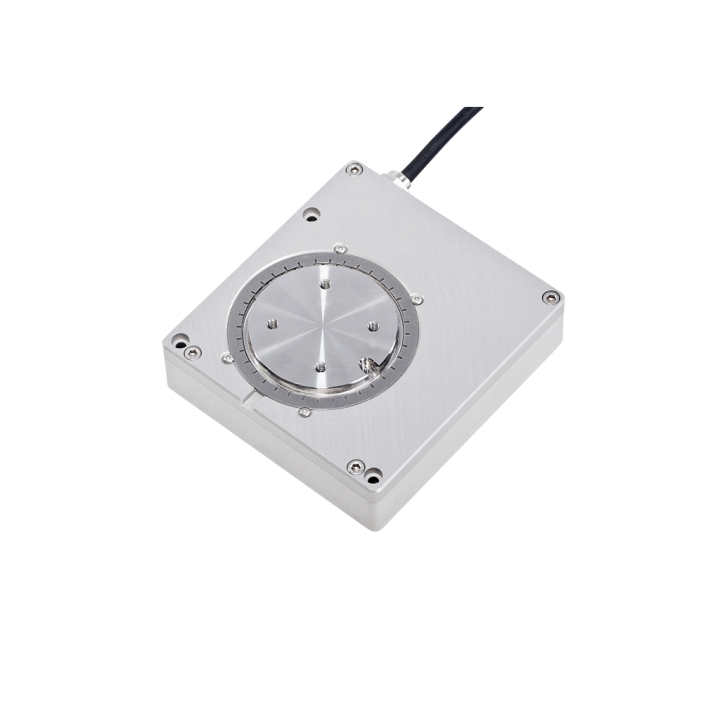

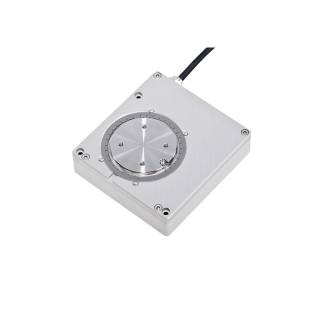

P270

PAN UNIT
P270

P270 is mostly used as pan unit in 4-face fuel inspection installations.

Applications

  • For use in 4-face fuel inspection installations or similar applications

Benefits

  • High radiation tolerance
  • Robust design
  • Working pan angles preset

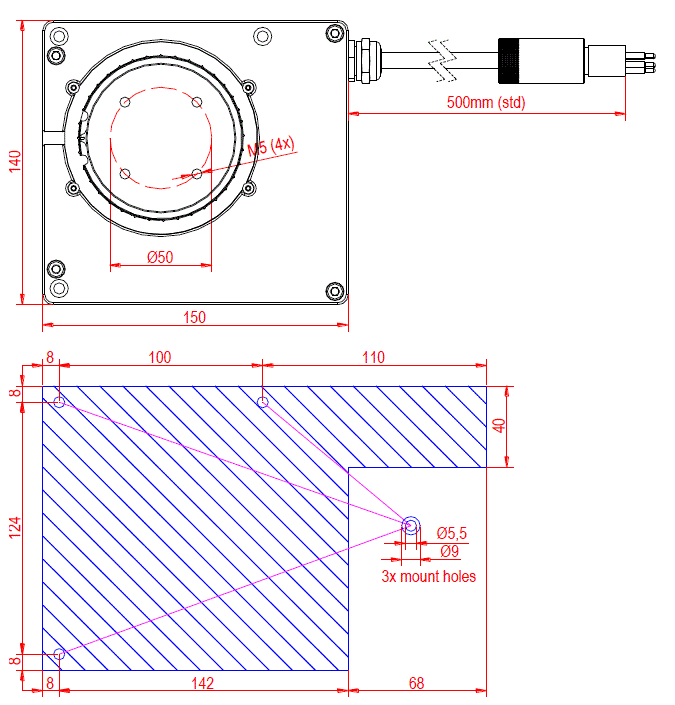

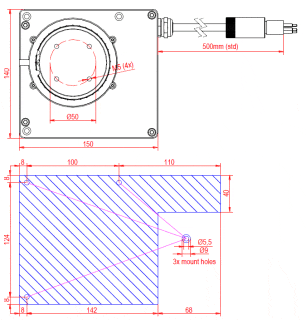

Specifications

Length
140 mm (5,5")
Width
150 mm (5,9")
Height
40 mm (1,6")
Housing material
Stainless steel EN 1.4301 AISI 304 or anodised aluminum
Weight
2,7 kg (Aluminum) (5,8 lbs)
Maximum temperature
70°C (158°F)
Water tightness
min 3,5 bar (35 m), IP68
Pan angle
360°
Radiation tolerance (total dose)
1 000 000 Gy (100 000 000 rad)
