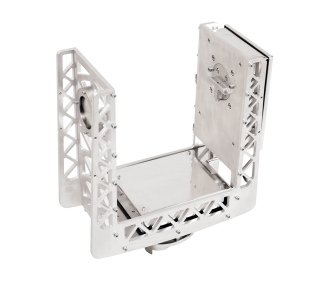

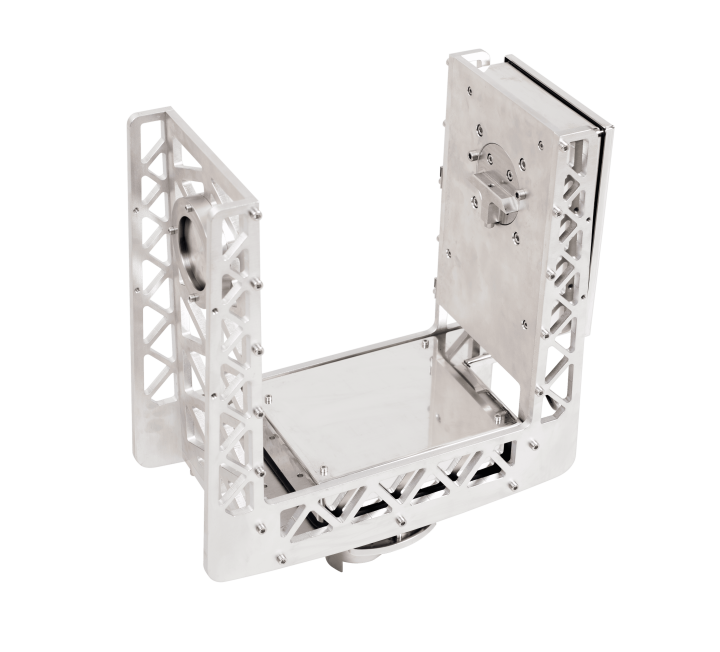

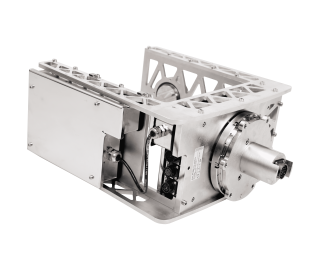

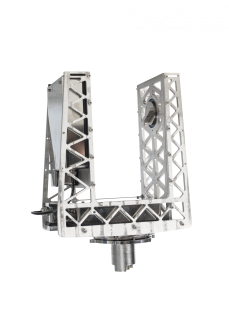

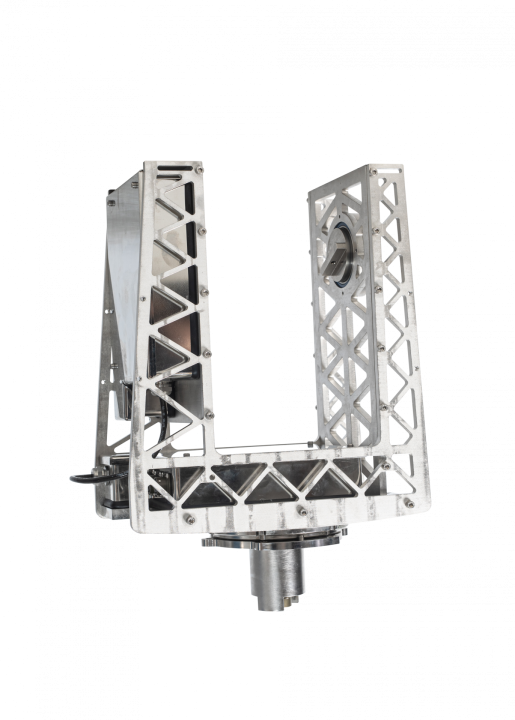

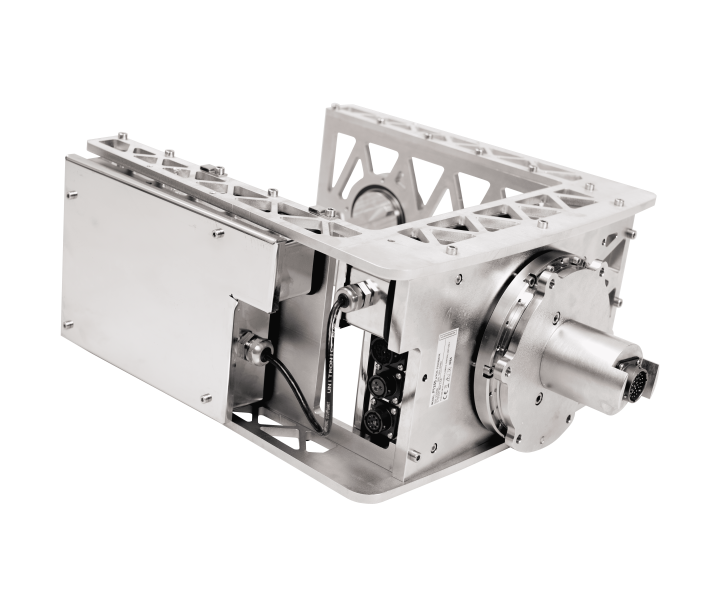

PT255-S
PAN-AND-TILT UNIT FOR THE CCTV129 AND CCTV114 CAMERAS
The PT255-S is a pan-and-tilt unit for the CCTV129 and CCTV114 cameras. It seamlessly regulates its movements and can be equipped with a potentiometer for pan-and-tilt registration.
Applications
- Pan-and-tilt unit for use with the CCTV129 and CCTV114 cameras
Benefits
- High radiation tolerance
- Robust design
- Seismically certified
- Can be equipped with potentiometers for pan&tilt registration

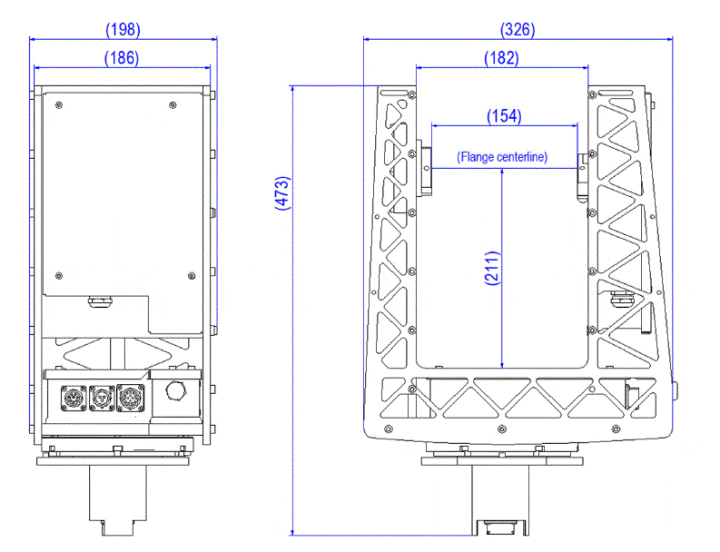

Specifications
- Width
- 325 mm (12.8")
- Length
- 198 mm (7.8")
- Height
- 498 mm (19.6")
- Housing material
- Stainless steel
- Weight
- 24 kg, (53 lbs)
- Temperature range
- 5-70°C (41-158°F)
- IP classification
- IP65
- Pan angle
- 324° (adjustable 84° to 360°)
- Tilt angle
- 180° (90-0-90°)
- Radiation tolerance (total dose)
- 1 000 000 Gy (100 000 000 rad)
