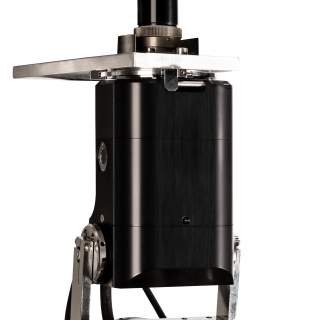

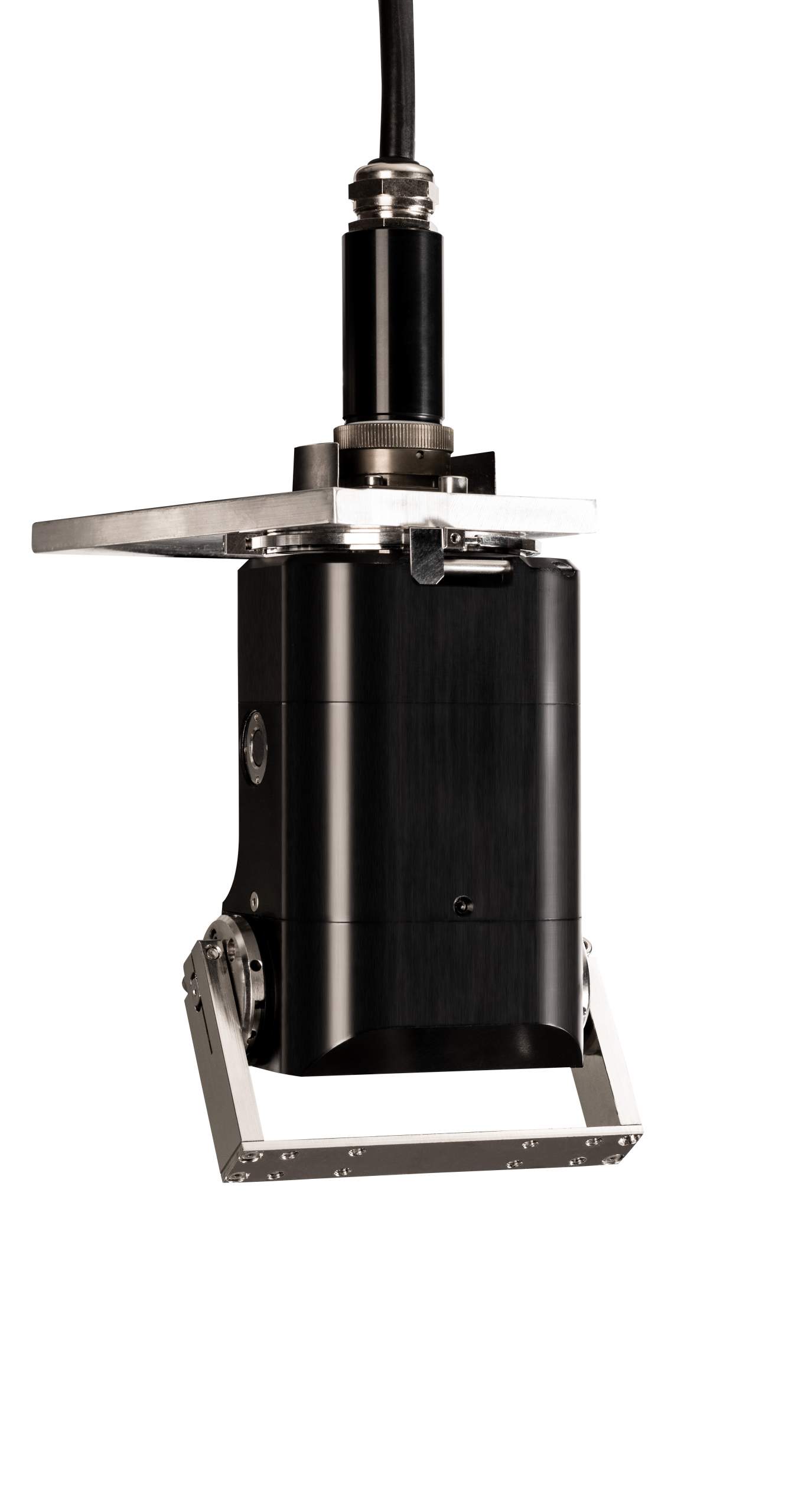

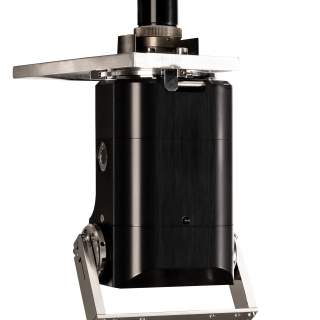

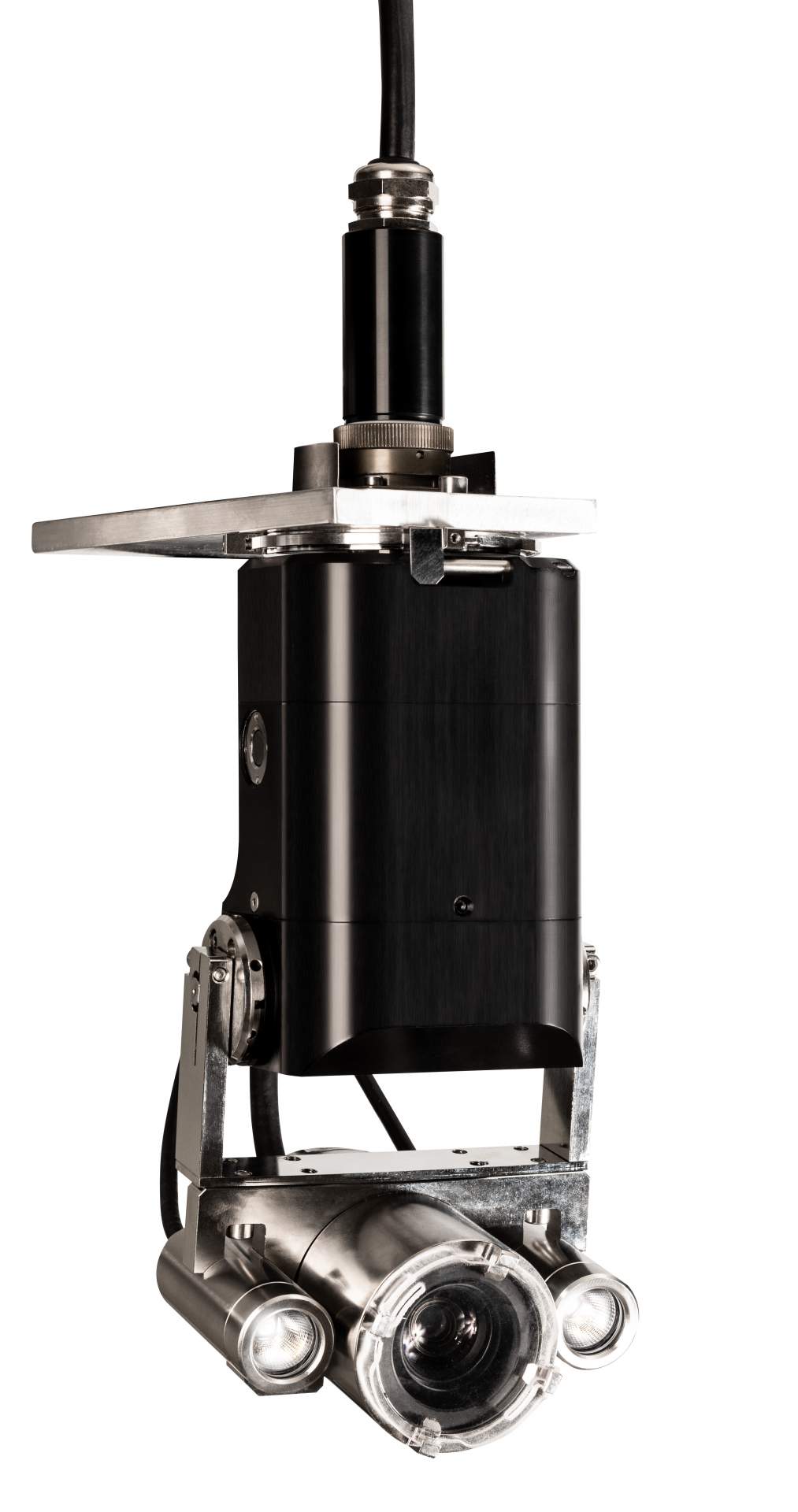

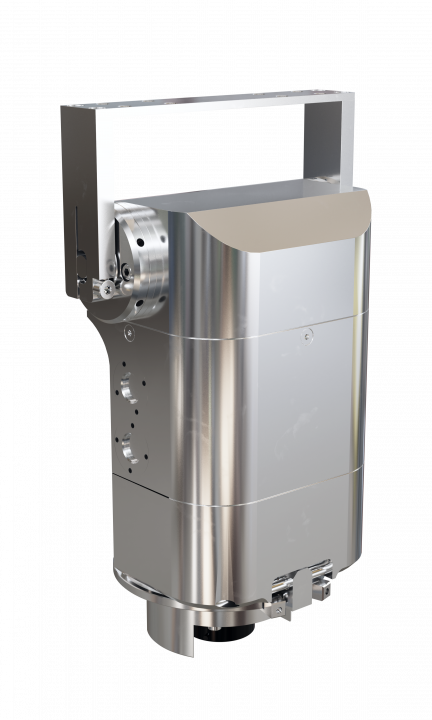

PT90
PAN-AND-TILT UNIT

The PT90 is a pan-and-tilt unit for smaller cameras. It seamlessly regulates its movements and is equipped with potentiometers for pan-and-tilt registration.
Applications
- Pan-and-tilt unit for CCTV62, CCTV71, CCTV110, N35, N66, Z71, Z630 and Mini-Rad 30 HD
Benefits
- High radiation tolerance
- Robust design
- Equipped with potentiometers for pan-and-tilt registration
Specifications
- Width
- 123 mm (4.8")
- Height
- 196 mm (7.7")
- Housing material
- Anodized aluminum. Stainless steel available as option
- Weight
- 3 kg / 6.6 lbs (aluminum). 5 kg / 11 lbs (stainless)
- IP classification, CCTV version
- IP65
- Water tightness, underwater version
- 3,5 bar (35m)
- Pan angle
- 360° seamless
- Tilt angle
- 180° (90-0-90°)
- Radiation tolerance (total dose)
- 1 000 000 Gy (100 000 000 rad)
