CCU210
CAMERA CONTROL UNIT
Prefer units:
Technical specifications
-

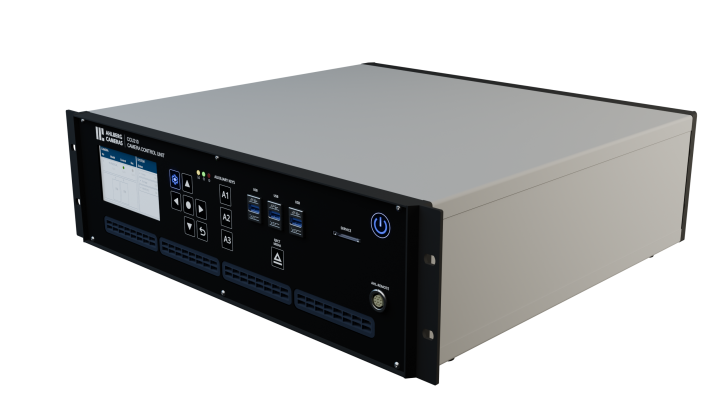

Physical Characteristics
- Width
- 483 mm 19.0"
- Length
- 435 mm 17.1"
- Height
- 133 mm 5.2"
- Weight
- 8.9 kg 19.6 lbs
- Housing material
- Aluminum
-
Environmental Tolerances
- Operating Temperature
- 5°C to 50°C 41°F to 122°F
-
Power
- Power Supply
- 90-250VAC / 47-63 Hz / max 456W
- Inlet
- IEC 320-C14 6,3A Fuse
-

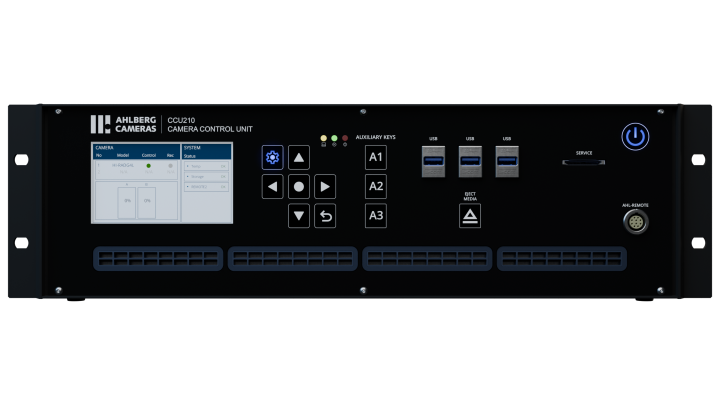

Interfaces Front Panel
- USB
- 3 x USB-A 3.0
- AHL-REMOTE
- 1 x Ahlberg Remote, R100 connector
- SERVICE
- 1 x Service port, Micro SD card reader
-

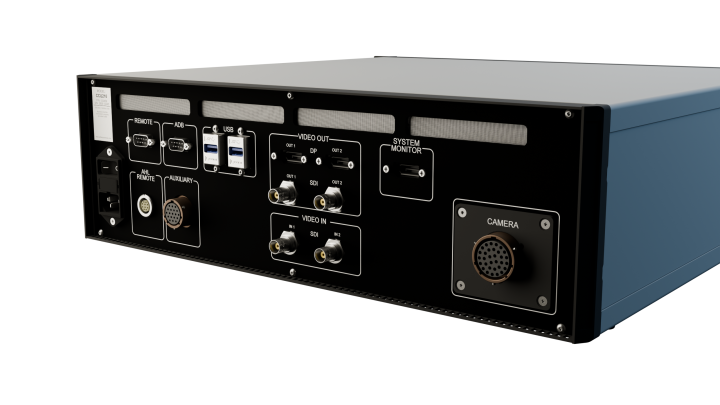

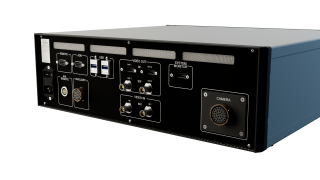

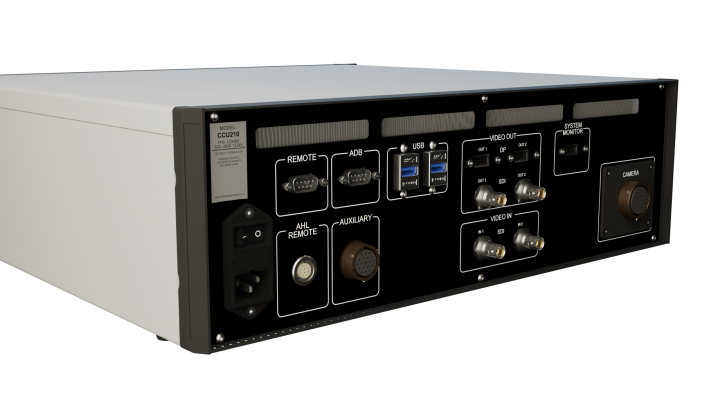

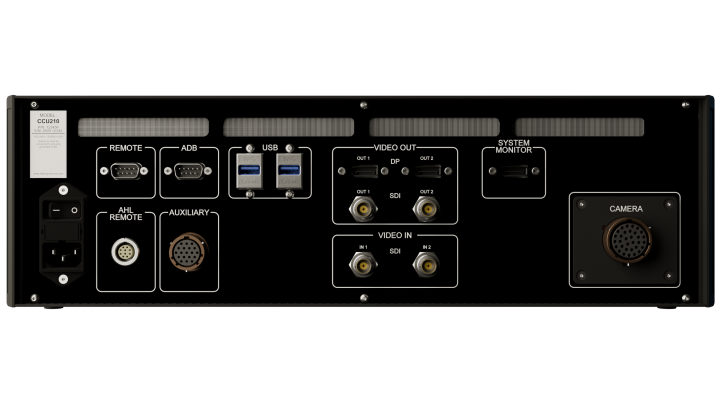

Interfaces Rear Panel
- SDI In
- 2 x SDI In
- SDI Out
- 2 x SDI Out
- Video Out
- 3 x Video Out, DisplayPort
- USB
- 2 x USB-A 3.0
- Camera & light
- 1 x camera & light, MIL-spec connector 18-32s
- AUX
- 1 x Auxiliary, MIL-spec connector 14-19sw
- ADB
- 1 x Ahlberg device bus, D-sub (male, 9-pin)
- AHL-REMOTE
- 1 x Ahlberg Remote, R100 connector
- REM
- 1 x Remote control (e.g. via Pelco), D-sub (male, 9-pin)
- ON/OFF
- 1 x ON/OFF button
- POWER
- 1 x Power connector, C14 IEC connector
-
Internal Storage
- Internal Storage (SSD)
- 2 TB
-
Features
- Video overlay
- Free text, date, time, zoom, focus distance, pan and tilt values on screen display
- Video format
- Video format/color space used for video streams 10-bit YUV422
- Recordings
- Recordings are mp4 with h.264 encoded 10-bit YUV422 video stream and MPEG2 audio stream
- Remote control
- E.g. control via Pelco
Areas of application
More information about PIS210
Applications
· Remote visual inspections
· Under water inspections
· Hot Cell / In-air surveillance
· Robotics and manipulators
· FOSAR – Foreign Object Search and Retrieval
· Refueling Machine/ Mast Camera Control Unit
· Non-destructive testing (NDT) and exams
· Real-time core verification
Benefits
· Controls most of Ahlberg Cameras’ FHD, HD, and SD cameras with pan, tilt, and zoom and as well as lights
· To be mounted in a rack, 19″ 3U
· No calibrations required when changing camera or camera cable
· Can be controlled via Pelco interface
