PIS210

PORTABLE INSPECTION SYSTEM

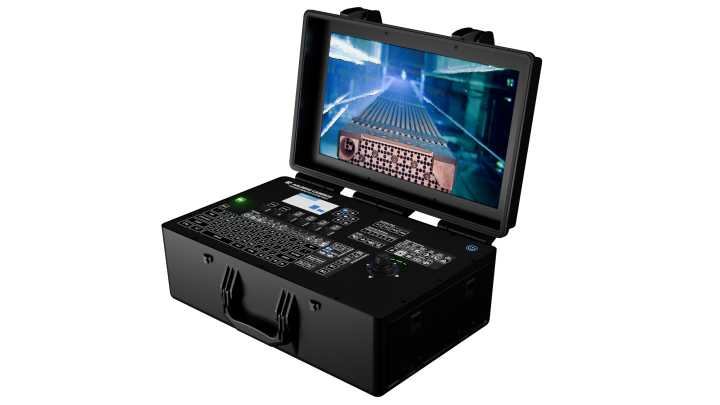

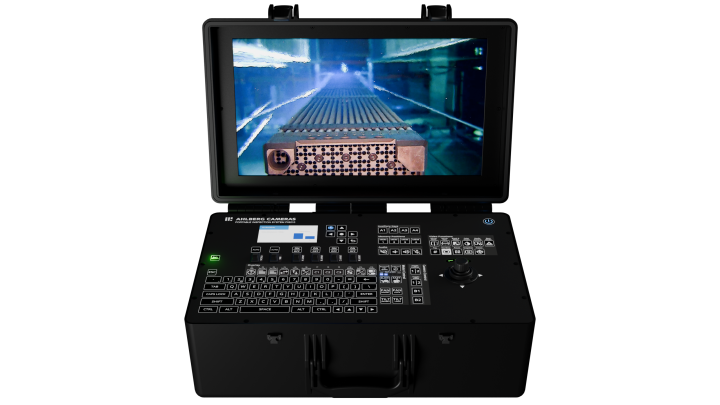

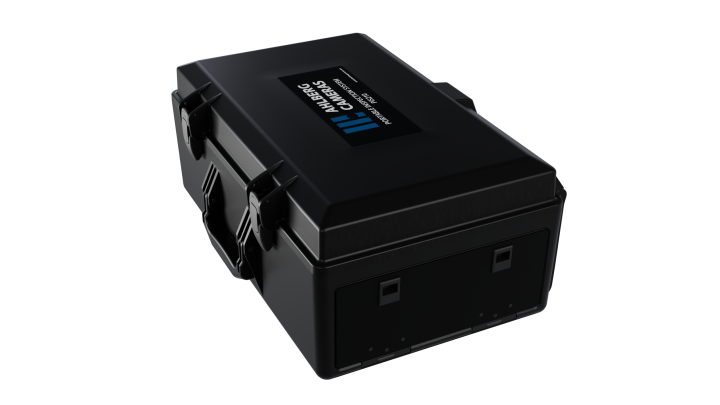

The PIS210 is a Portable Inspection System for use with inspection cameras and lighting. Fitted in a suitcase the PIS210 is a flexible monitoring system that is equipped with a vast number of control features for providing the best possible image. It has a FHD-screen and can record movies and take snapshots, which are stored on an SSD memory.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Housing material
    Polyuretan (PUR)

  • Environmental Tolerances

    Operating Temperature

  • Power

    Power Supply
    90-250VAC / 47-63 Hz / max 456W
    Inlet
    IEC 320-C14 6,3A Fuse

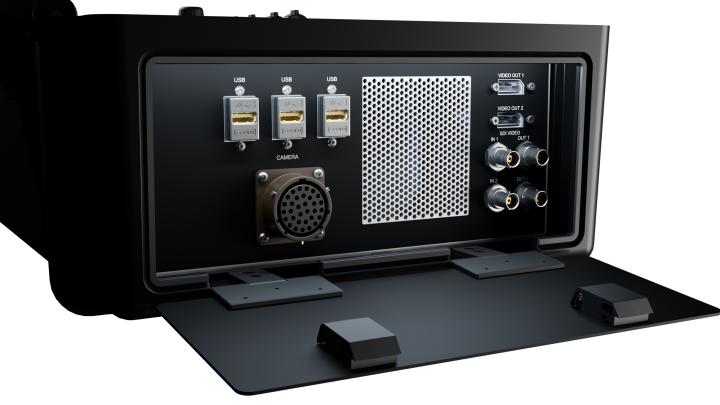

  • Interfaces

    SDI In
    2 x SDI In
    SDI Out
    2 x SDI Out
    USB
    3 x USB-A 3.0
    Camera & light
    1 x camera & light, MIL-spec connector 18-32s

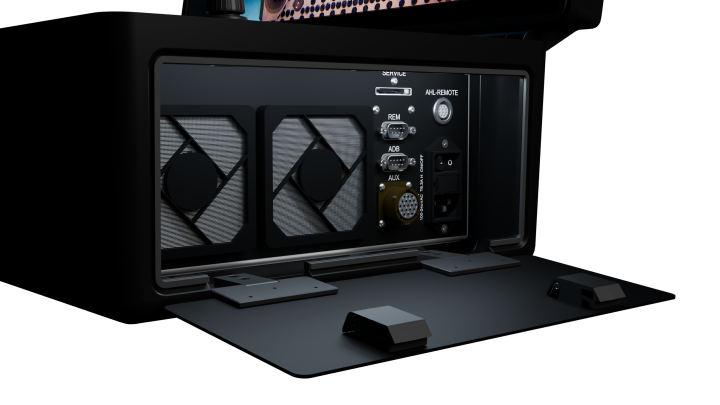

    AUX
    1 x Auxiliary, MIL-spec connector 14-19sw
    ADB
    1 x Ahlberg device bus, D-sub (male, 9-pin)
    AHL-REMOTE
    1 x Ahlberg Remote, R100 connector
    REM
    1 x Remote control (e.g. via Pelco), D-sub (male, 9-pin)
    SERVICE
    1 x Service port, Micro SD card reader
    ON/OFF
    1 x ON/OFF button
    POWER
    1 x Power connector, C14 IEC connector

  • Internal Storage

    Internal Storage (SSD)
    2 TB

  • Display

    Main display
    18.5", 1920x1080
    Settings display
    4.3"

  • Control funcionalitties

    Control funcionalitties

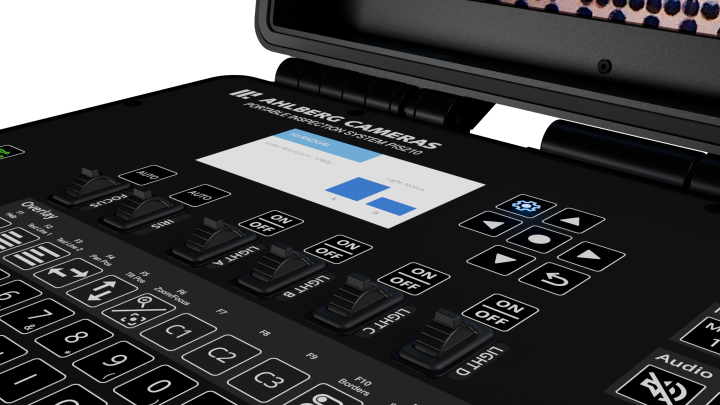

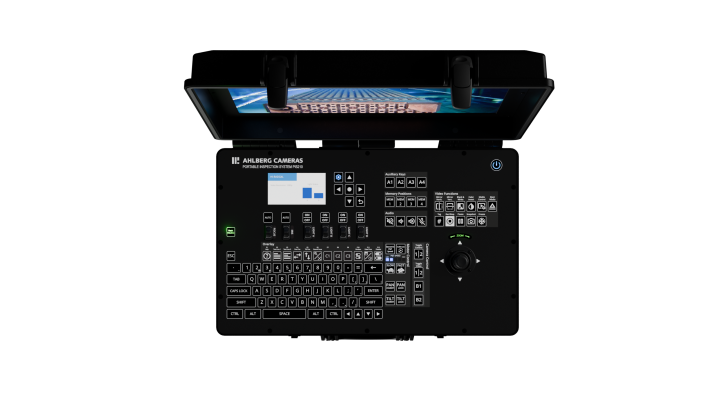

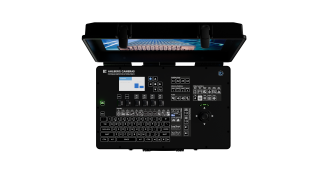

    Integrated membrane keyboard, joystick for pan/tilt/zoom, focus, Iris, light intensity, memory positions, programmable auxiliary keys, keys for disabling funtionality, invert joystick control, pan & tilt speed, mirroring of image, toggle between color and B/W image, color invert, media control, snapshot image, record video, tag video, pause video replay, freeze image, audio control

  • Features

    Video overlay
    Free text, date, time, zoom, focus distance, pan and tilt values on screen display
    Video format
    Video format/color space used for video streams 10-bit YUV422
    Recordings
    Recordings are mp4 with h.264 encoded 10-bit YUV422 video stream and MPEG2 audio stream
    Remote control
    E.g. control via Pelco

Areas of application

More information about PIS210

Applications

  • Remote visual inspections
  • Underwater inspections
  • Hot Cell / In-air surveillance
  • Robotics and manipulators
  • FOSAR – Foreign Object Search and Retrieval
  • Refueling Machine/ Mast Camera Control Unit
  • Non-destructive testing (NDT) and exams
  • Real-time core verification

Benefits

  • Low weight
  • Portable control unit
  • Memory and recall functions, inverted image and color/ monochrome function, in-screen display of text, date, time, zoom, pan& tilt values, temperatures
  • Controls most of Ahlberg Cameras’ FHD, HD, and SD cameras with pan, tilt, and zoom and as well as lights
  • No calibrations required when changing camera or camera cable
  • External remote control can be connected
