AHL-LIGHT 1

LED CAMERA LIGHT
AHL-LIGHT 1

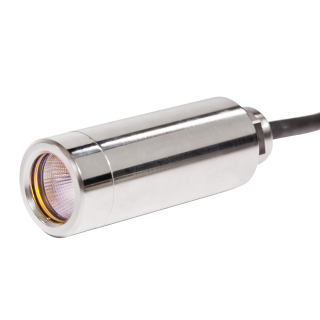

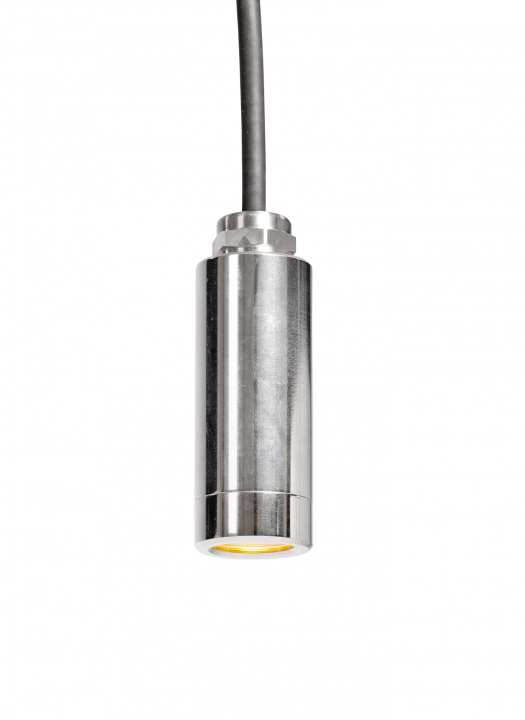

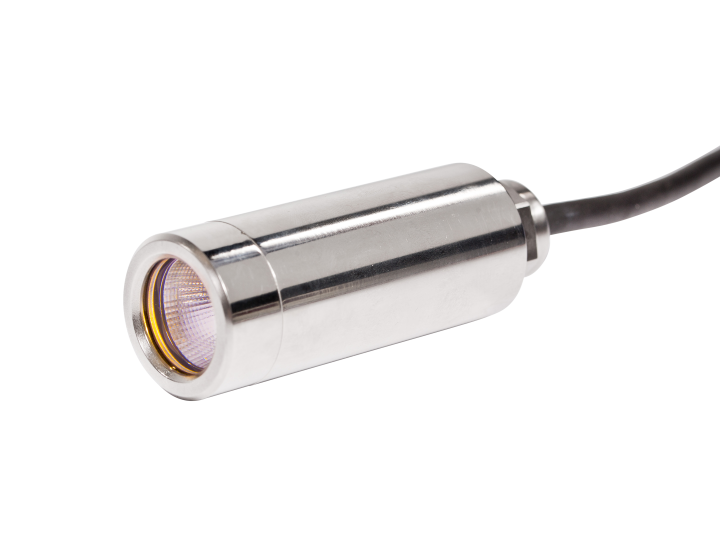

AHL-LIGHT 1 is radiation tolerant LED light used during underwater inspections in confined areas. The light emits 900 lumen and gives plenty of light without adding significant weight to the system in which it is used.

Applications

  • Attached to tools, robots and manipulators or hanging in its cable
  • Ideal during inspections in confined areas.
  • Powered by a camera control unit or lighting power unit

Benefits

  • Small-sized and low-weight light
  • 900 lumen light output
  • Color temperature suitable for inspections
  • Low maintenance cost due to its long life-time

Specifications

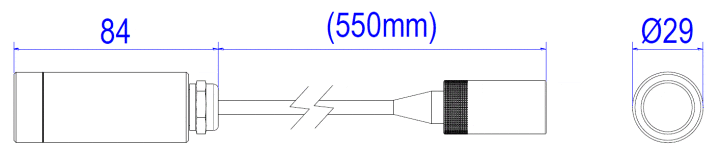

Diameter
29 mm (1,1")
Height
84 mm (3,3")
Weight
0,3 kg, (0,7 lbs)
Housing material
Stainless steel EN 1.4301, AISI 304/AISI 316
Front glass material
Polycarbonate
Maximum temperature
50°C, 70°C for short periods (122°F, 158°F)
Water tightness
min 3,5 bar (35 m)
Lights
LED
Typical luminous flux
900 lumen
Lighting beam angle
38°
Life time
>50 000 h
Radiation tolerance (total dose)
50 000 Gy (5 000 000 rad)
