MINI-RAD SHIELDING

EXTRA SHIELDING FOR THE MINI-RAD CAMERA
MINI-RAD SHIELDING

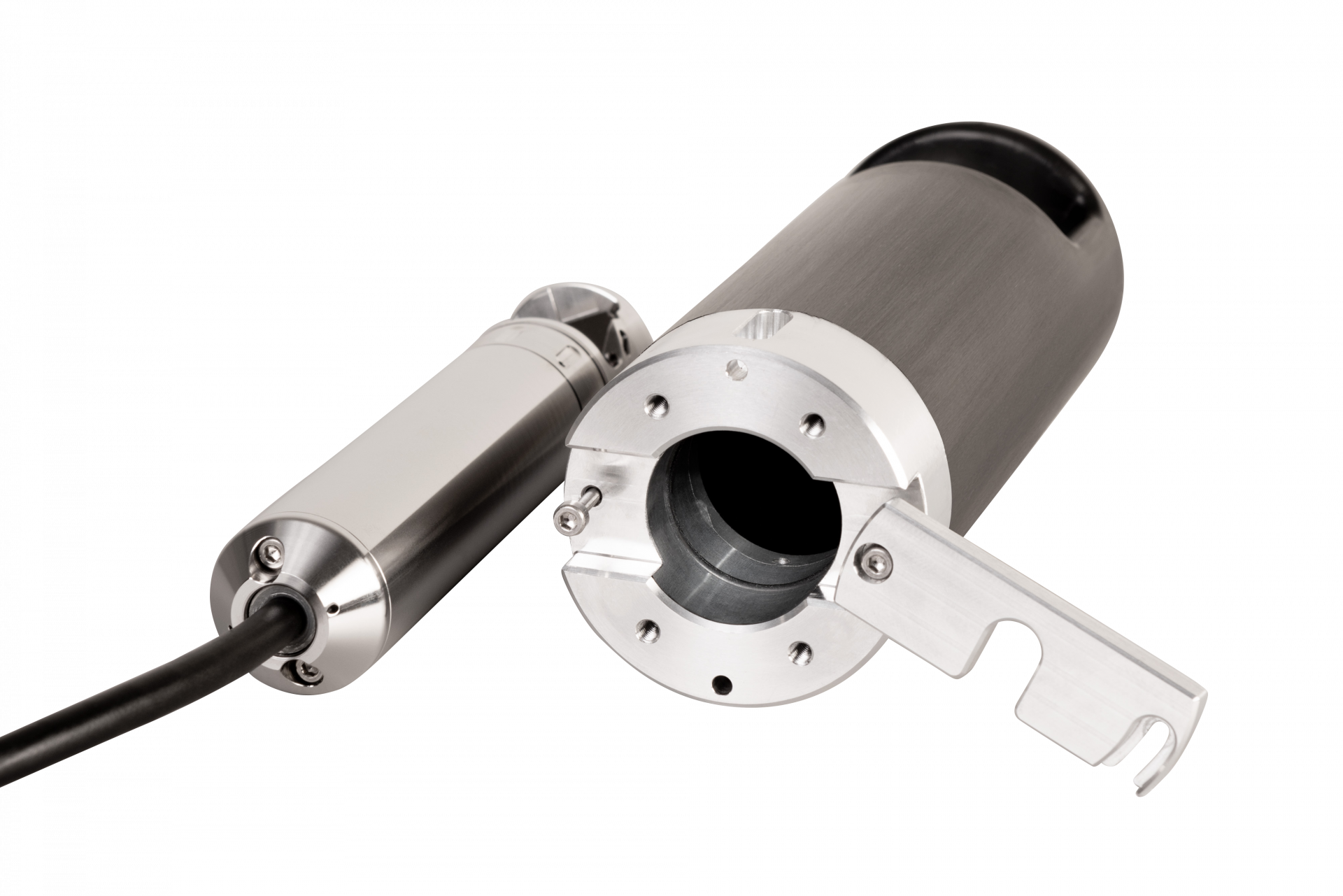

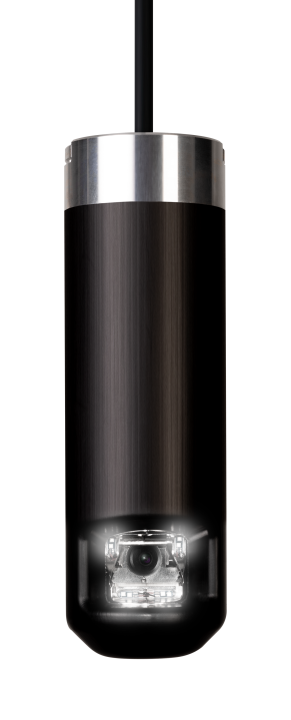

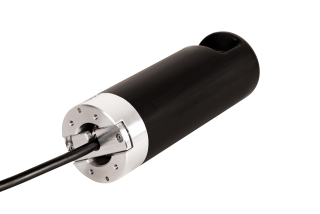

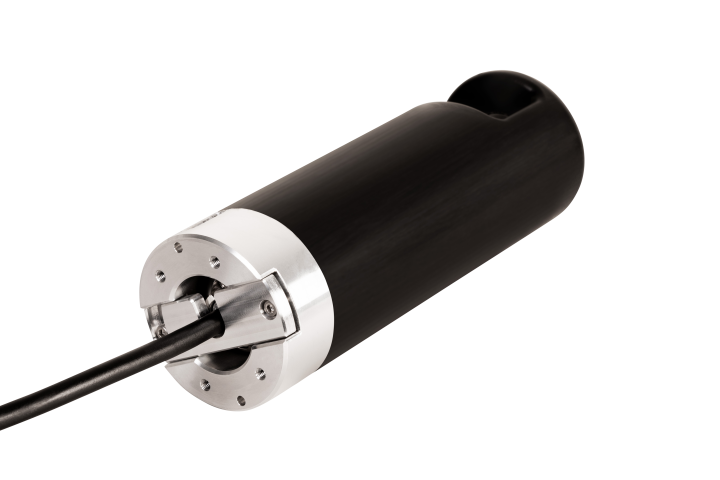

MINI-RAD Shielding can be placed outside the Mini-RAD 30 HD and MINI-RAD F30 HD cameras. The shielding doubles the radiation resistance of the camera and enables it to operate in environments where previously only tube cameras could be used.

Applications

  • To be mounted on a Mini-Rad camera. The camera must use mirror attachment together with the shielding

Benefits

  • Doubles the already high radiation tolerance of the Mini-Rad camera

Specifications

Diameter
59,5 mm (2,3")
Length
190 mm (7,4")
Weight
5,1 kg (11,4 lbs)
Housing material
Stainless steel, and tungsten overmolded with PUR
Radiation tolerance (dose rate)
10 000 Gy/h (1 000 000 rad/h) for Mini-Rad with this shielding
Radiation tolerance (total dose)
100 000 Gy (10 000 000 rad) for Mini-Rad with this shielding
