Radiation Resistant Cameras

Radiation resistant underwater cameras in color HD for inspection and surveillance at nuclear power plants, such as BWR, PWR, VVER, RBMK and CANDU reactors.

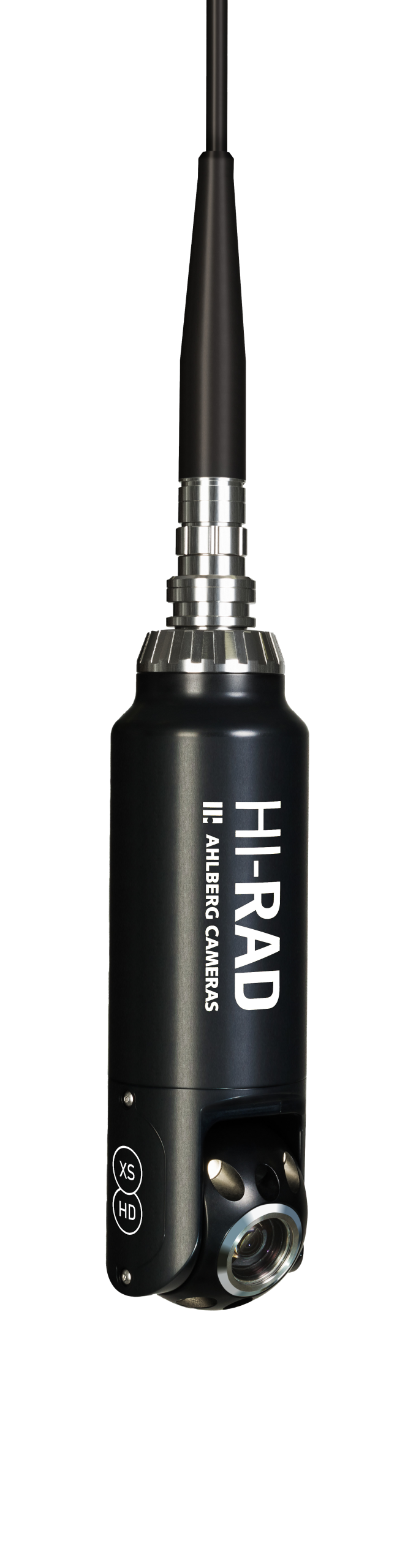

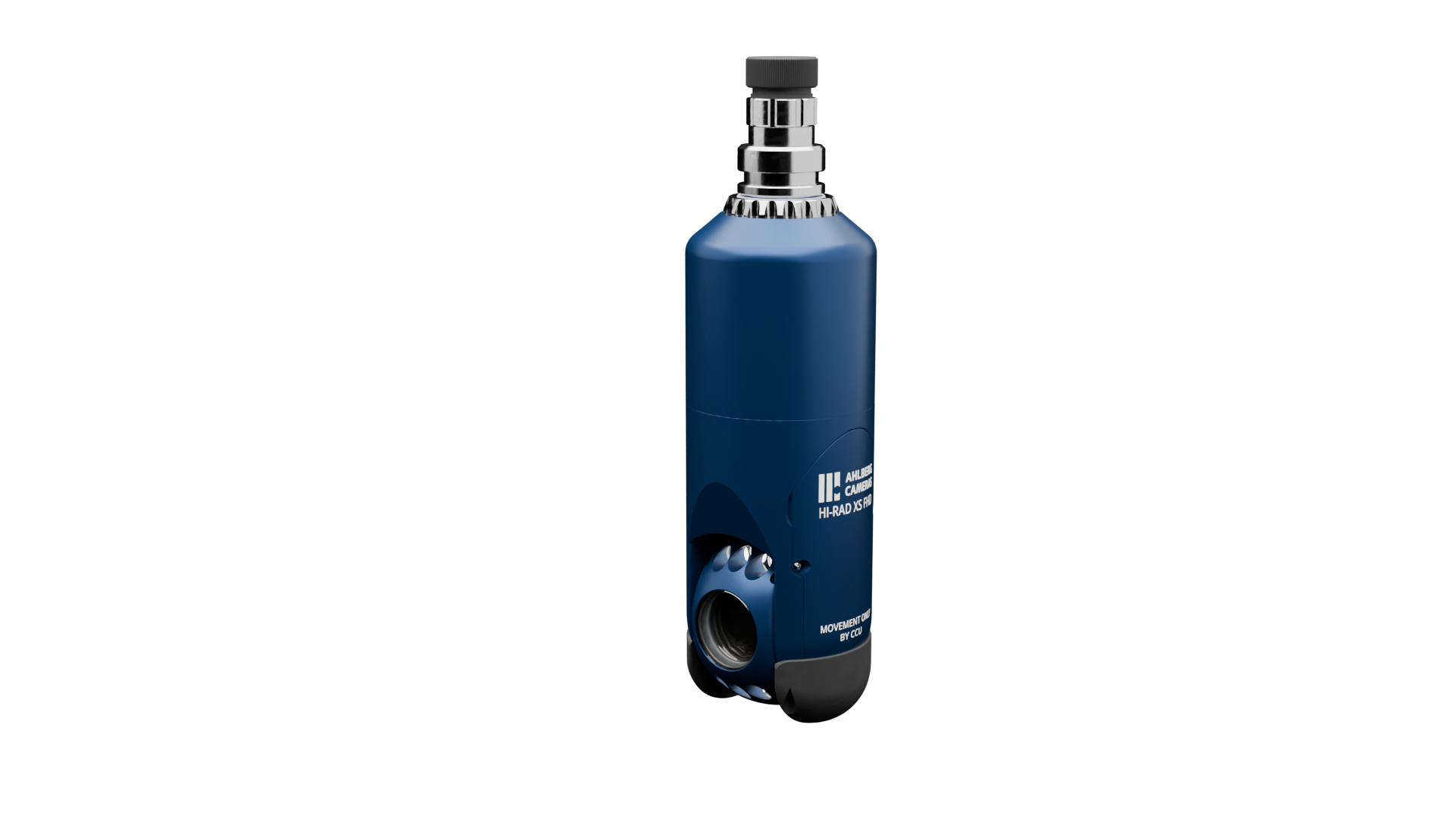

HI-RAD XS

HI-RAD XS

EXTRA SMALL HD PTZ CAMERA
Weight
3.8 kg (8.4 lbs)
Radiation tolerance (total dose)
1 200 Gy (120 000 rad)
Resolution HD version
720p
Go to HI-RAD XS

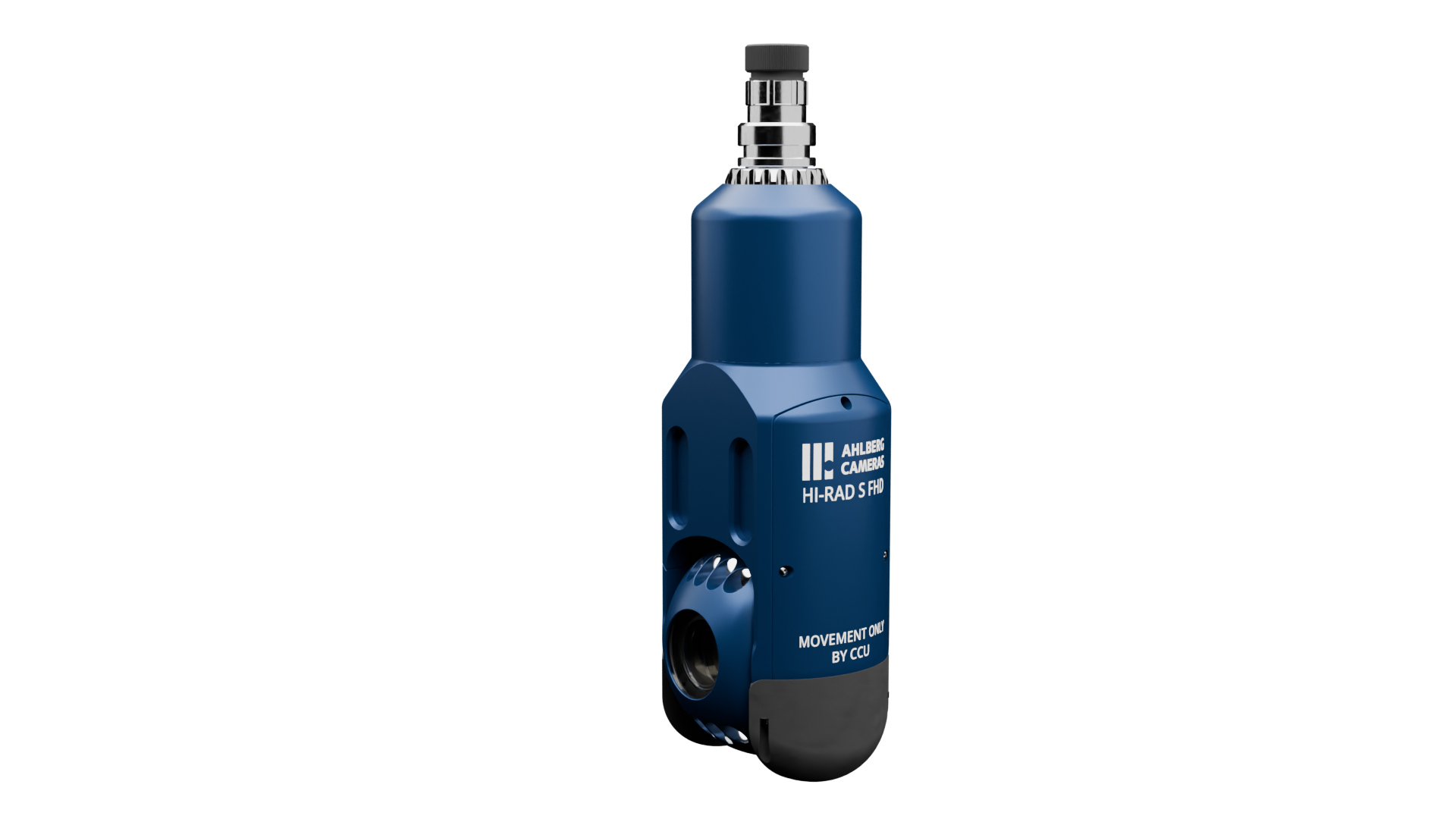

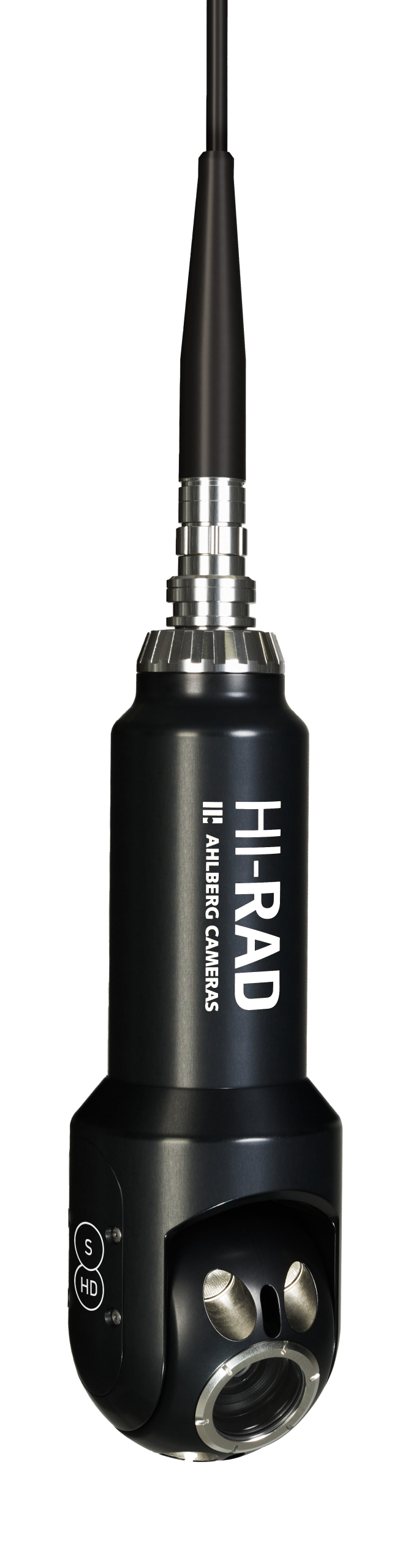

HI-RAD S

HI-RAD S

SMALL HD PTZ CAMERA
Weight
6.8 kg (15 lbs)
Radiation tolerance (total dose)
2 700 Gy (270 000 rad)
Resolution HD version
720p
Go to HI-RAD S
HI-RAD L

HI-RAD L

SERVICE INSPECTION CAMERA
Weight
14 kg (31 lbs)
Radiation tolerance (total dose)
4 300 Gy (430 000 rad)
Resolution HD version
720p
Go to HI-RAD L

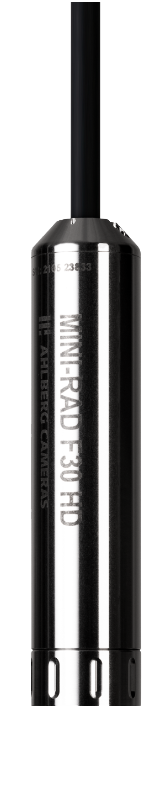

MINI-RAD F30 HD

MINI-RAD F30 HD

HIGH RADIATION TOLERANT MINI HD CAMERA WITH MOTORIZED FOCUS
Weight
400g (0.9 lbs), 500g (1.2 lbs) with mirror
Radiation tolerance (total dose)
49 000 Gy (4 900 000 rad)
Resolution HD version
720p
Go to MINI-RAD F30 HD

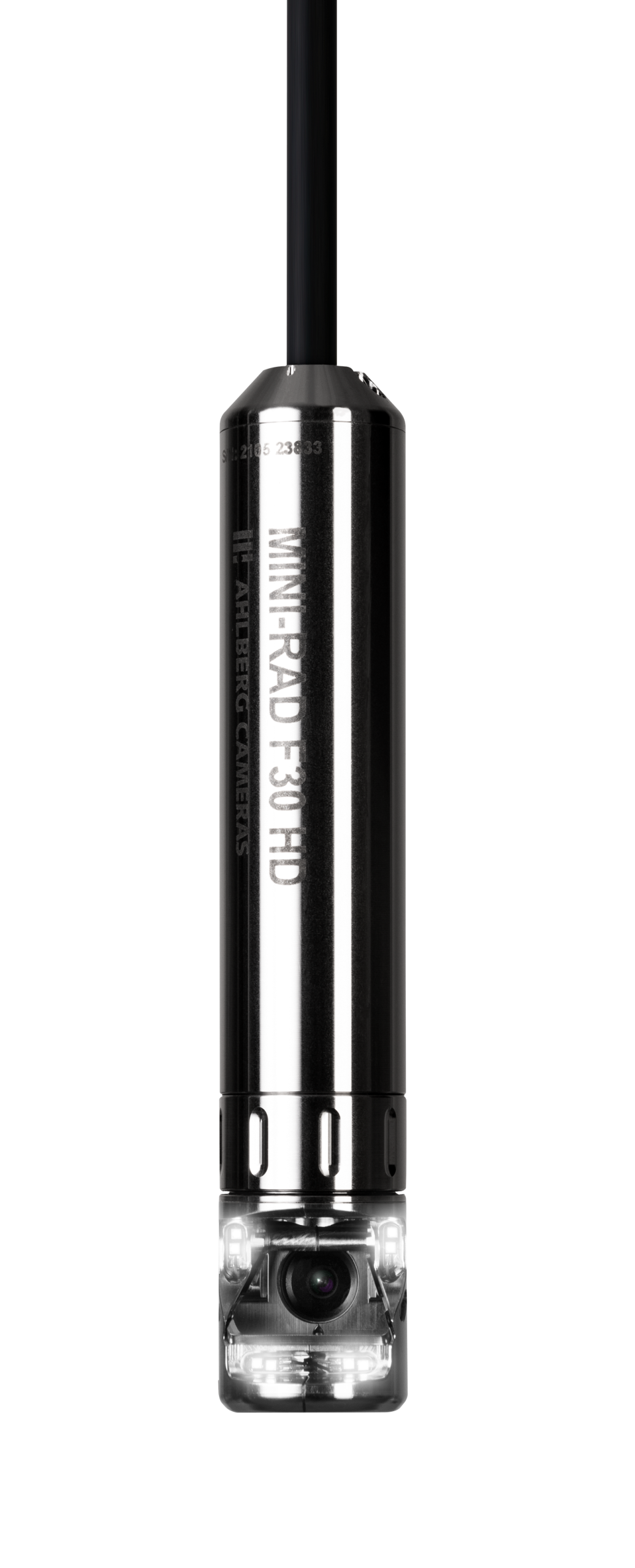

MINI-RAD F30 HD M

MINI-RAD F30 HD M

HIGH RADIATION-TOLERANT MINI HD CAMERA WITH MOTORIZED FOCUS AND MIRROR
Weight
500 g (1.2 lbs)
Radiation tolerance (total dose)
49 000 Gy (4 900 000 rad)
Resolution HD version
720p
Go to MINI-RAD F30 HD M

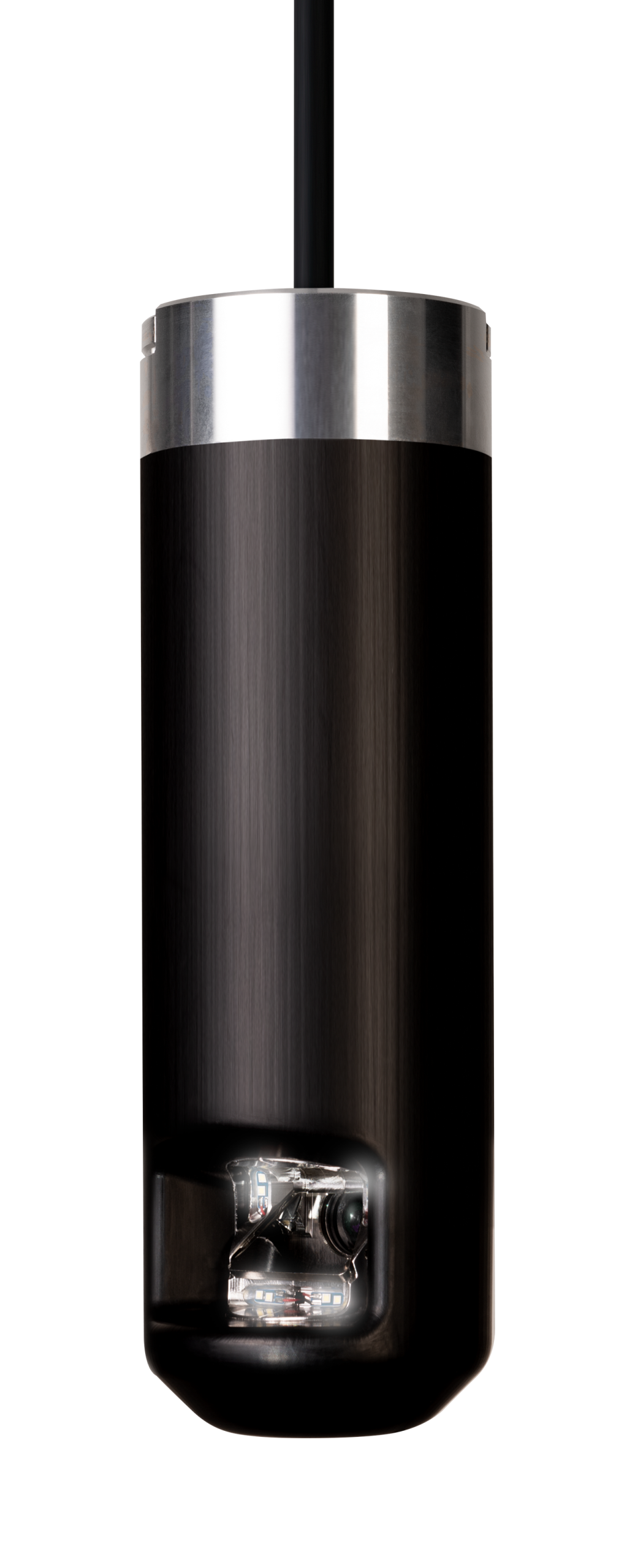

MINI-RAD F30 HD SM

MINI-RAD F30 HD SM

VERY HIGH RADIATION-TOLERANT HD CAMERA WITH MOTORIZED FOCUS AND MIRROR
Weight
5.5 kg (12.1 lbs)
Radiation tolerance (total dose)
100 000 Gy (10 000 000 rad)
Resolution HD version
720p
Go to MINI-RAD F30 HD SM
Z160

Z160

FUEL INSPECTION HD CAMERA
Weight
25.4 kg (56.0 lbs)
Radiation tolerance (total dose)
200 000 Gy (20 000 000 rad)
Resolution SD version
720 TV-lines
Resolution HD version
720p
Go to Z160

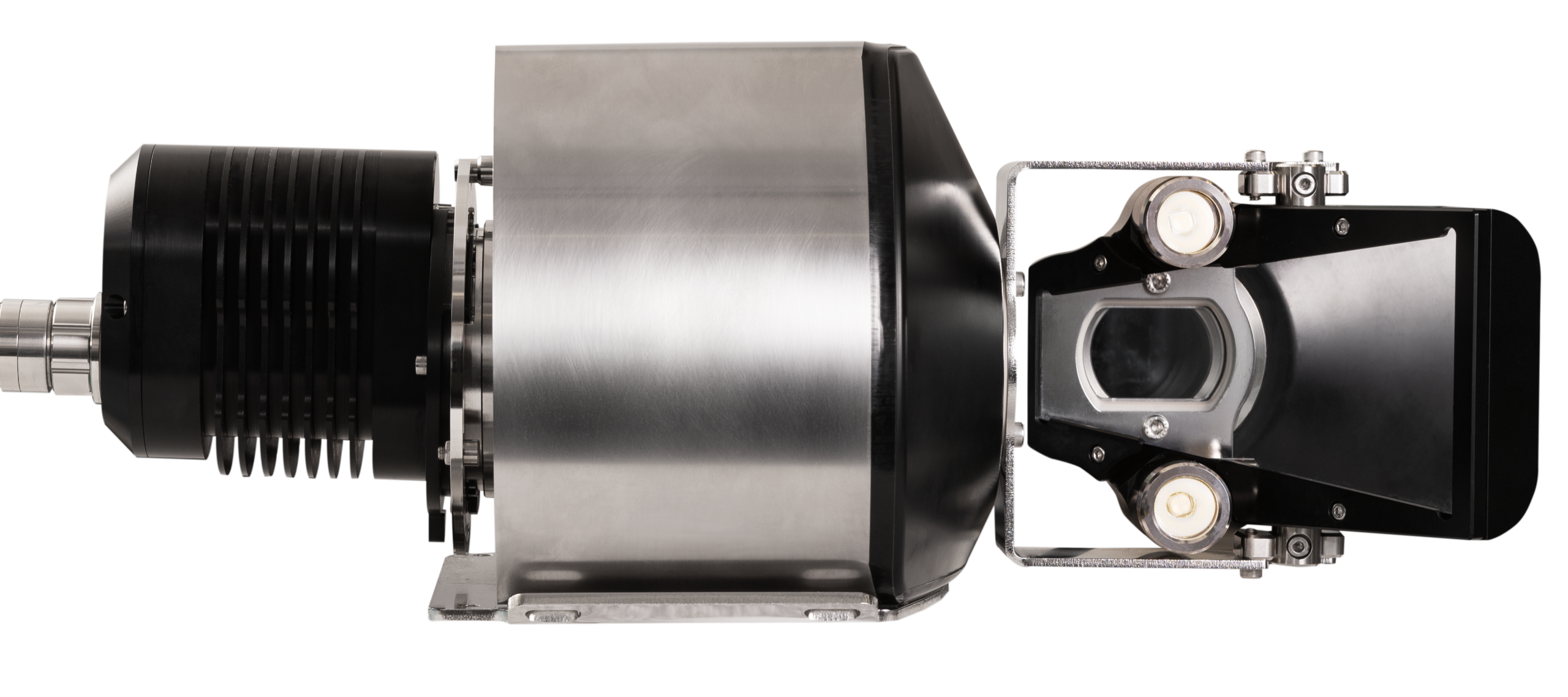

PTZ170 HDC

PTZ170 HDC

FUEL INSPECTION FULL-HD CAMERA
Weight
40 kg
Radiation tolerance (total dose)
300 000 Gy (30 000 000 rad)
Resolution HD version
Full-HD, 1080p
Go to PTZ170 HDC
PTZ620

PTZ620

HD PTZ CAMERA WITH MIRROR
Weight
7.5 kg (16.5 lbs)
Radiation tolerance (total dose)
3 500 Gy (350 000 rad)
Resolution SD version
720 TV-lines
Resolution HD version
720p
Go to PTZ620

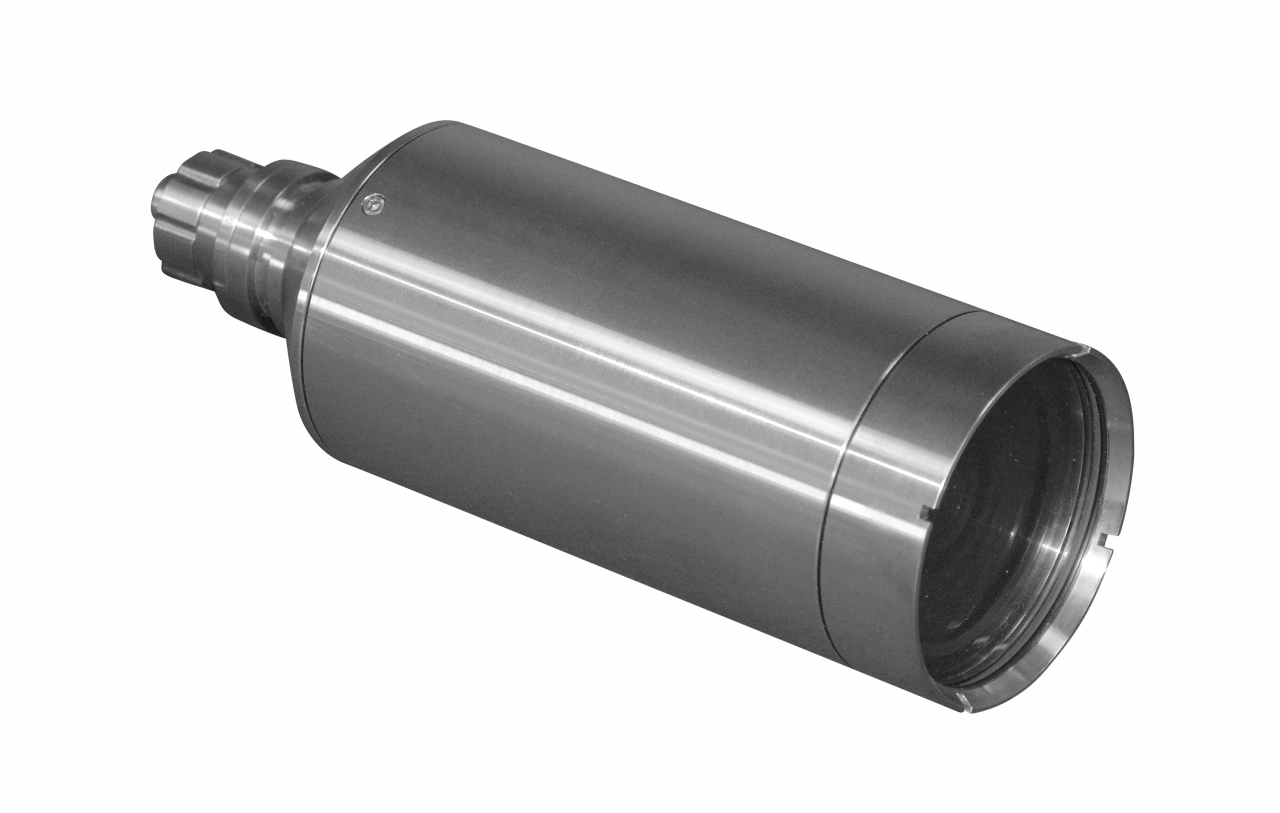

Z71

Z71

HD ZOOM CAMERA
Weight
1.2 kg (2.6 lbs)
Radiation tolerance (total dose)
1 200 Gy (120 000 rad)
Resolution SD version
470-720 TV-lines
Resolution HD version
720p
Go to Z71

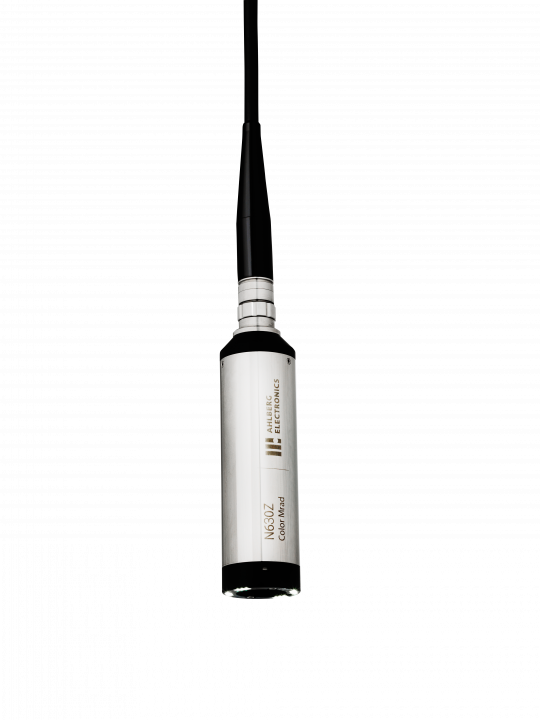

Z630

Z630

HD ZOOM CAMERA
Weight
6 kg (13.2 lbs)
Radiation tolerance (total dose)
5 000 Gy (500 000 rad)
Resolution SD version
720 TV-lines
Resolution HD version
720p
Go to Z630

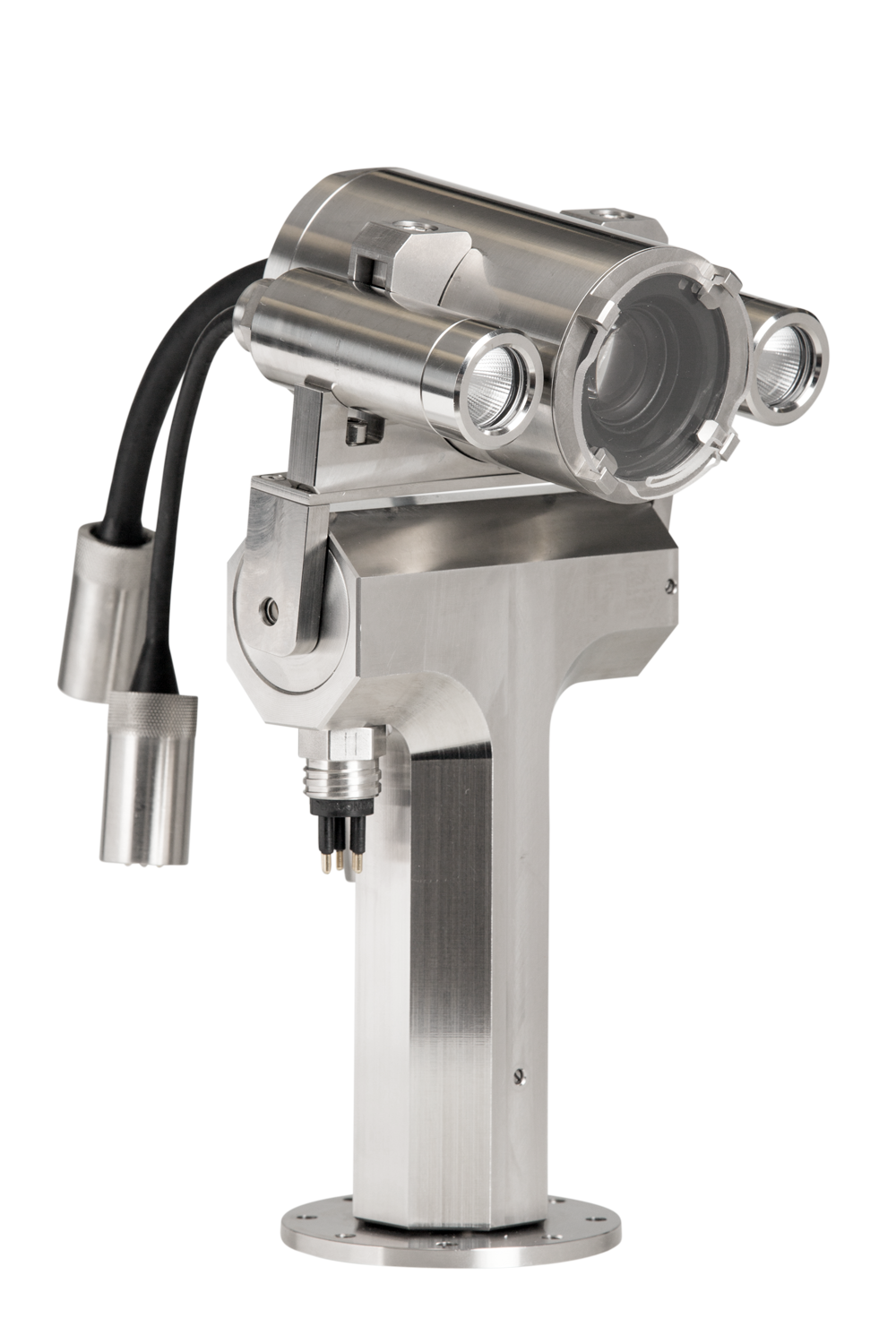

PTZ100

PTZ100

COMPACT PTZ CAMERA SYSTEM
Weight
4.4 kg (9.7 lbs)
Radiation tolerance (total dose)
300 Gy (30 000 rad)
Resolution SD version
700 TV-lines
Go to PTZ100

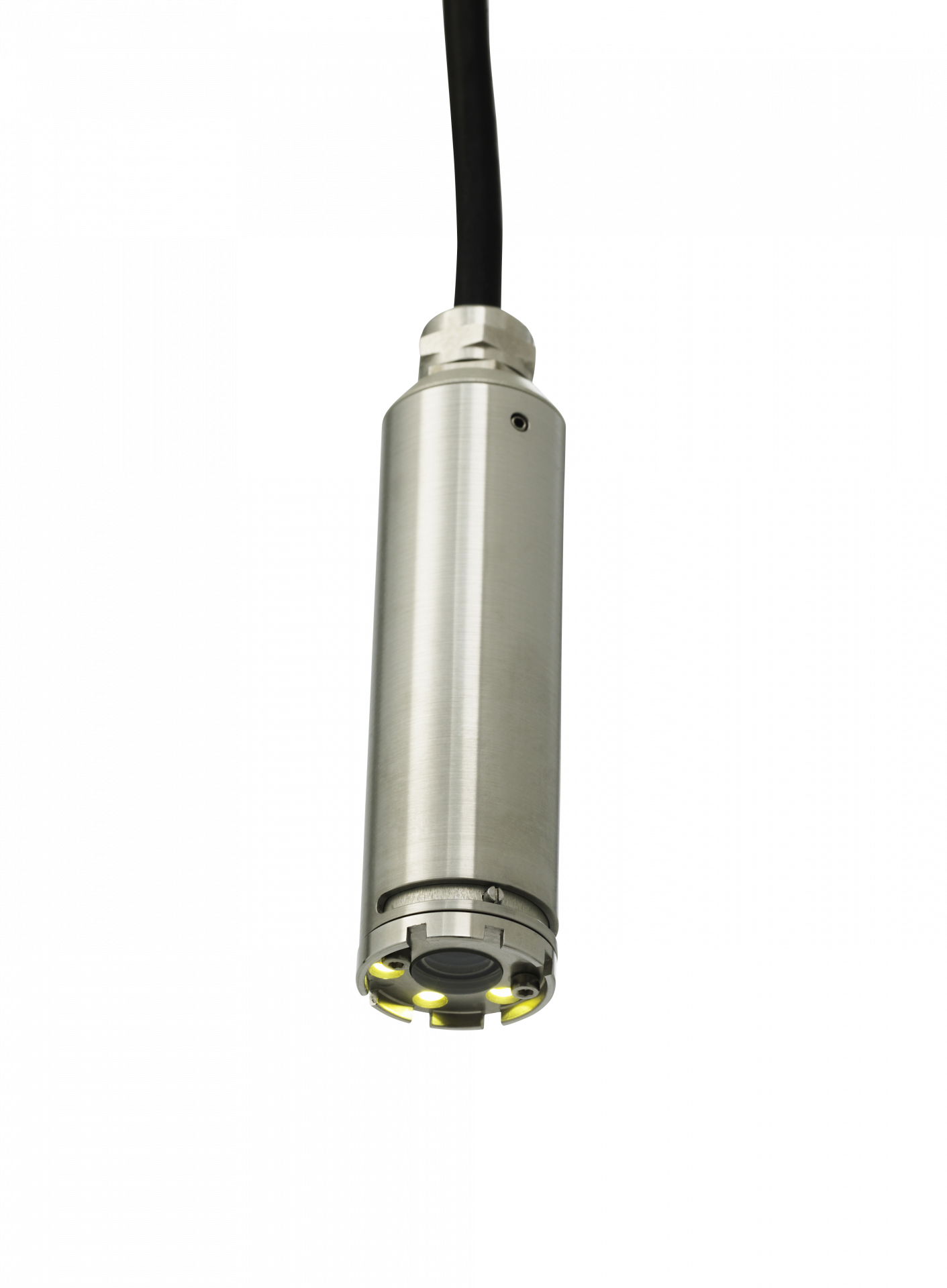

N29F

N29F

MINI SD CAMERA
Weight
330 g (0.73 lbs)
Radiation tolerance (total dose)
3000 Gy (300 000 rad)
Resolution SD version
480 TV-lines
Go to N29F

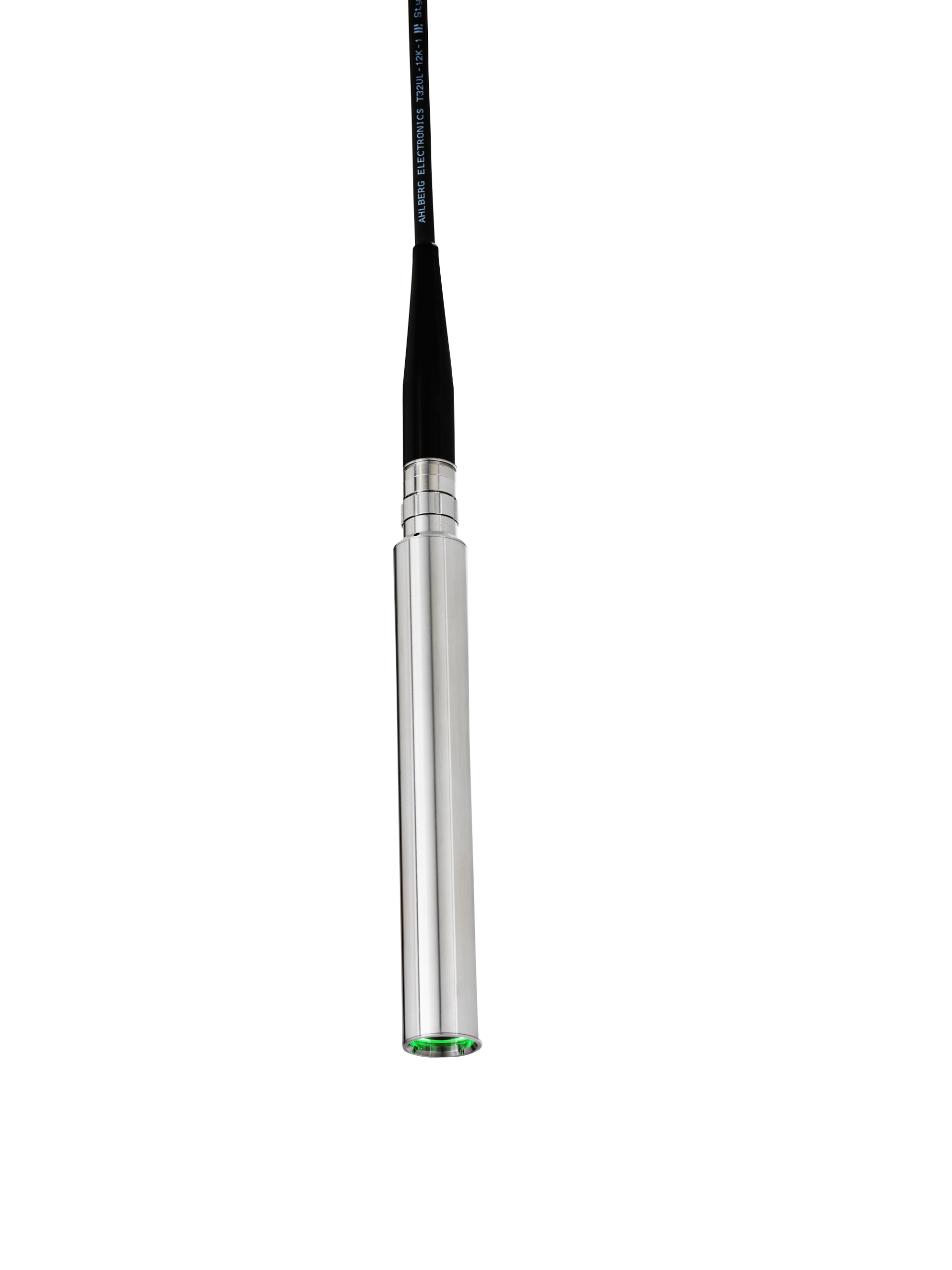

N35HR

N35HR

UNDERWATER MONOCHROME TUBE CAMERA
Weight
1.0 kg with fixed focus, 1.2 kg with zoom lens
Radiation tolerance (total dose)
1 600 000 Gy (160 000 000 rad)
Resolution SD version
650 TV-lines
Go to N35HR

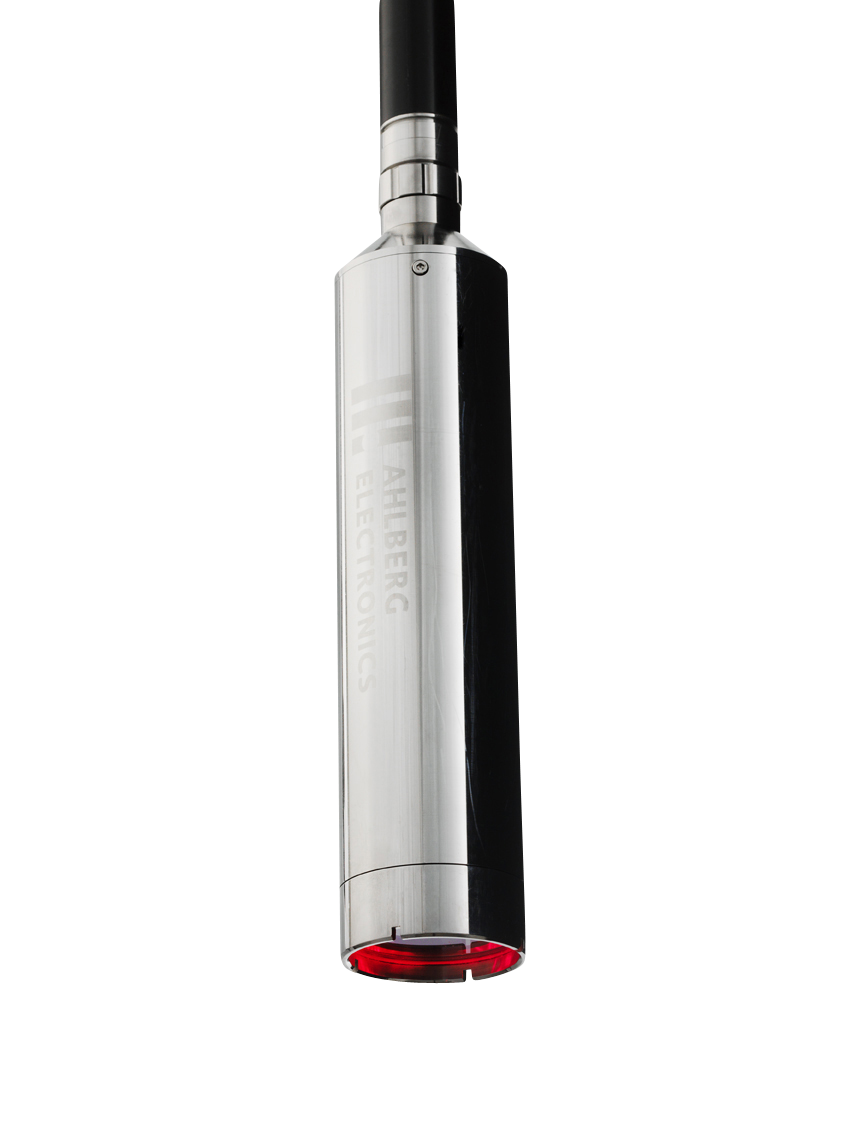

N66HR

N66HR

UNDERWATER MONOCHROME TUBE CAMERA
Weight
1 kg, 2 kg with zoom lens (2.2 lbs, 4.4 lbs)
Radiation tolerance (total dose)
700 000 Gy (70 000 000 rad)
Resolution SD version
up to 700 TV-lines
Go to N66HR

Our expertise is in radiation resistant underwater cameras in color HD. Our cameras are used in-air and underwater in all types of nuclear power plants. They use them for general works in reactor and fuel pools. Our high radiation cameras are used for inspection of nuclear fuel. Both in BWR, PWR, VVER, RBMK and CANDU reactors.

Decommissioning of nuclear sites is another area where our cameras are often used. Or when cutting the internal reactor parts during dismantling. This means that our cameras not only have to be radiation hardened, they also have to be robust, and withstand rough handling underwater for long periods.

Nuclear fuel storage facilities use our equipment when handling spent fuel from power plants.

Our cameras are used for inspections in various areas in a BWR Nuclear plant, for example inspection in Dryer/ Seperator Guide Rod, Dryer, Separator, Core Spray, Feedwater, Top Guide, Dry Tube, Fuel Support Casting, Core Plate Plug, Guide Tube, Jet Pump, Surveilance Sample Holder, Shroud, Tie Rod, LPCI, Access Hole Cover and Instrumentation Line.

Our cameras are used for inspections in various areas in a PWR Nuclear plant, for example inspection in Thimble Plugs, Upper Internals, RCCA Change Fixture, Below Core Plate, Core Plate, TP Bar, Spent Fuel Rack, Core Barrel, Fuel Exams and Baffle Bolt.
