CCU845

CCTV CAMERA POWER BOX
CCU845

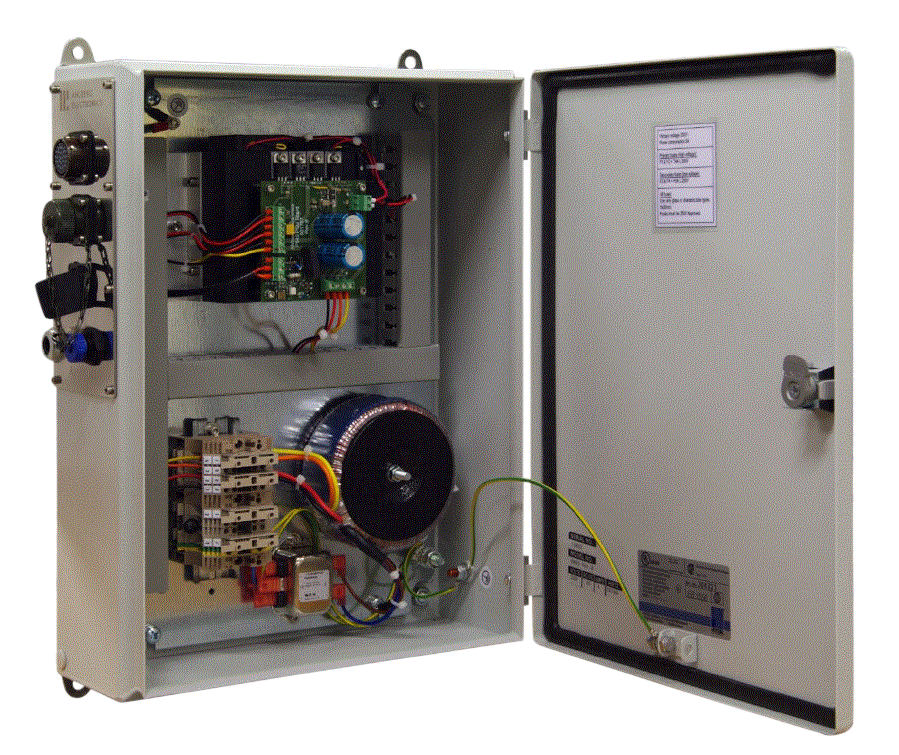

CCU845 is a CCTV power box used to power a CCTV camera and light. In contrast to the CCU890, the CCU845 is used when no settings such as pan, tilt, zoom, light on/off are to be made during operation. The power box comes with a preset box for initial settings.

Applications

  • Supplies power for a camera and lighting.
  • Initial settings of zoom and light can be made with a preset box.

Benefits

  • Streamlined power box used when little operability is required.

Specifications

Dimensions (HxWxD)
120 x 400 x 300 mm (4,72"x15,76"x11,82")
Weight
10,1 kg (22,3 lbs)
Housing material
Grey-white Powder coated (painted) steel
Operating temperature max
40°C (104°F)
Protection class
IP65
Power supply
110, 120, 220, 230 or 240 VAC / 50-60 Hz
External lighting output
1 channel
Video outputs
Composite SD
