PIS200

PORTABLE INSPECTION STATION
PIS200

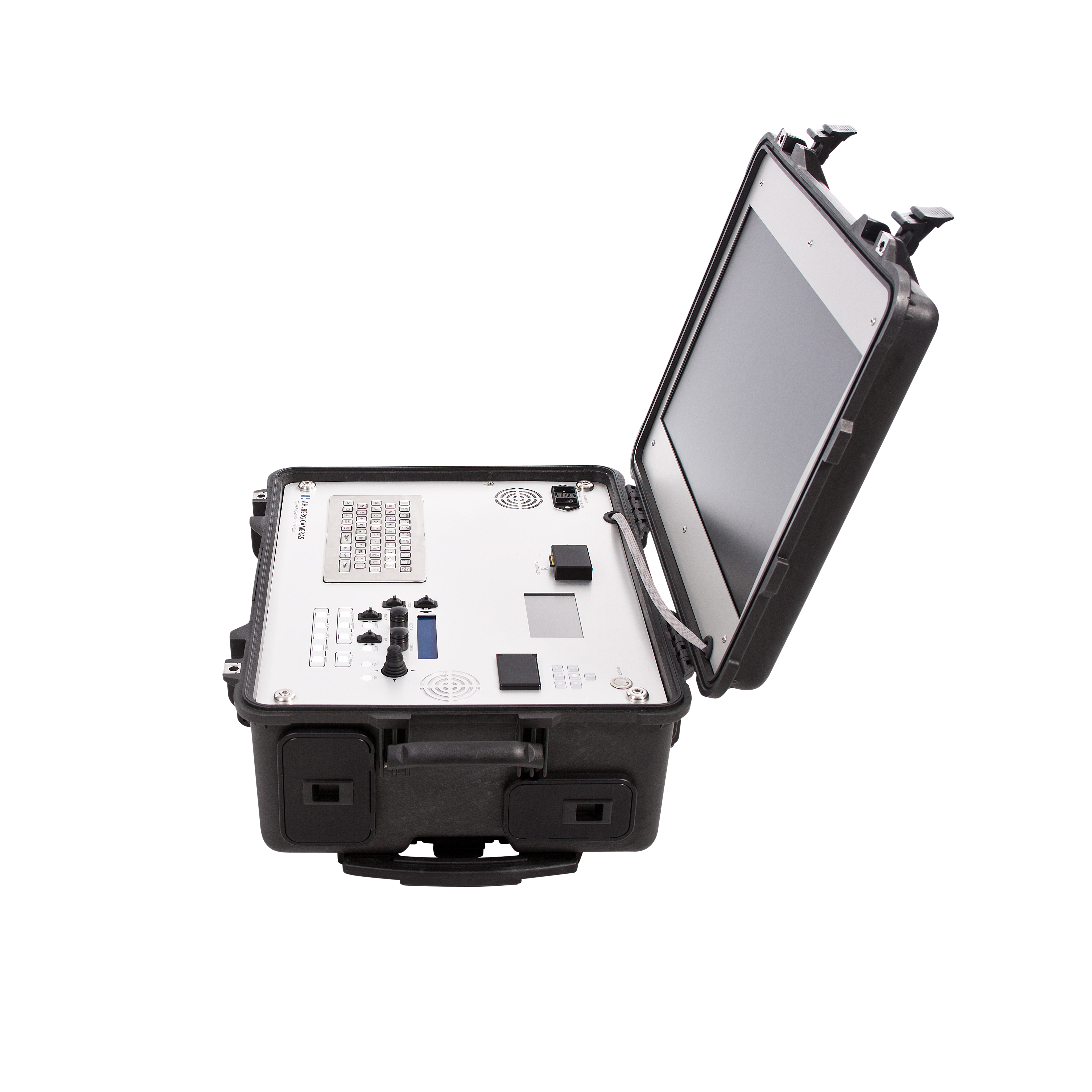

PIS200 is a Portable Inspection Station for use with inspection cameras and lighting. Fitted in a rolling suitcase the PIS200 is a flexible monitoring system that is equipped with control panels, DVR and a large HD-screen.

Applications

  • Portable control unit
  • Controls most Ahlberg HD, SD and monochrome tube cameras with pan & tilt units and lights

Benefits

  • Large, 22" HD-screen
  • No calibrations required when changing camera or camera cable
  • Built-in control panel and keyboard
  • The case is equipped with wheels and an adjustable handle
  • Secondary remote control R100 with cable can be connected to the unit

Specifications

Dimensions (L*W*H)
483x435x133 mm (19"x17"x5,2")
Housing material
Polypropylene
Weight
20,3 kg (44 lbs)
Ingress protection
IP42
Operating temperature
0°C to 45°C
Power supply
90-260VAC / 47-63 Hz / max 800W
Lighting support
2 channels
Video outputs
S-video, Composite, SD/HDcomponent, DVI-D and SDI
Recording
H.264 SD memory card recording
Video overlay (option)
Free text, date, time, pan and tilt values on screen display
