Camera Cable T32

MONOCHROME CAMERA CABLE

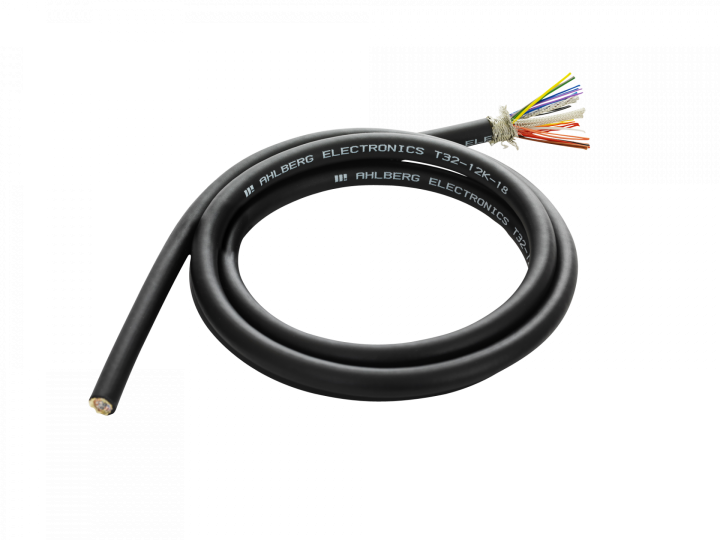

The T32 camera cable is used together with Ahlberg monochrome cameras. It is a flexible and strong cable specially designed with Kevlar braid for supporting the camera hanging solely by its cable.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Minimum Bend Radius, Flexible Installation
    Outer sheath
    PUR, frosted
    Color
    Black
    Weight
    0.26 kg/m, 0.175 lbs/ft
    Tensile Strength
    Number of conductors
    30 + 2 coaxial

  • Environmental Tolerances

    Radiation Tolerance (total dose)
    2 000 000 Gy (200 000 000 rad)
    Temperature Rating
    -40°C to +80°C (-40°F to +176°F)
    Water Tightness

Areas of application

More information about Camera cable T32

Applications

  • Cable for underwater use or in air together with Ahlberg monochrome cameras

Benefits

  • A flexible and strong cable
  • Can be equipped with a reterminable connector for use in air and a molded connector for underwater use
  • Specially designed with Kevlar braid for supporting the camera hanging solely by its cable.
