MINI-RAD F30 HD

HIGH RADIATION TOLERANT MINI HD CAMERA WITH MOTORIZED FOCUS
MINI-RAD F30 HD

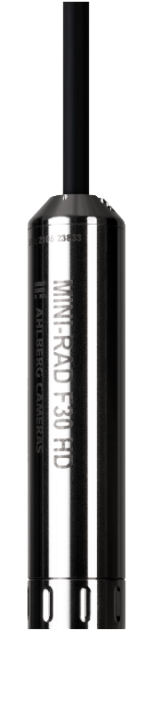

MINI-RAD F30 HD is a compact high radiation tolerant color camera with motorized focus. The small sized camera module inside resists 5 MRad, when shielded it can be used in environments where previously only tube cameras could be used.

Applications

  • Suitable for placement on an actuator or tool where it is used for inspection and monitoring in confined spaces
  • Controlled by CCU50 which controls camera on/off, focus and manual adjustments of the lights

Benefits

  • Small size
  • Very radiation tolerant
  • Motorized focus

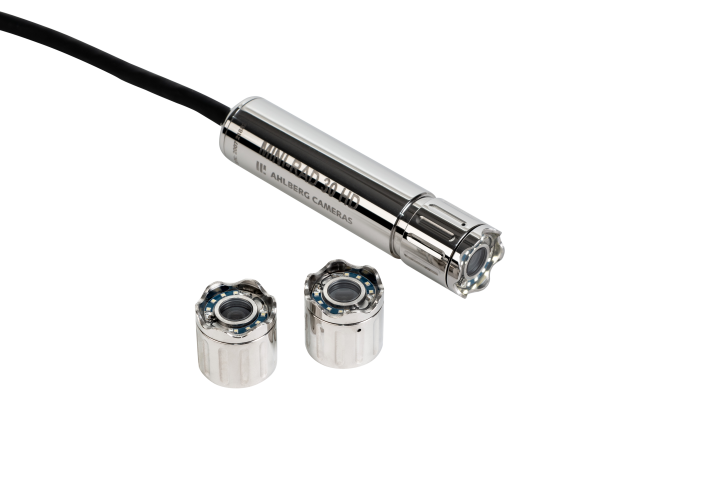

  • The lights in the internal LED-ring can operate underwater as well as in air
  • 2 channels for individual LED light control
  • Available with non-browning lens

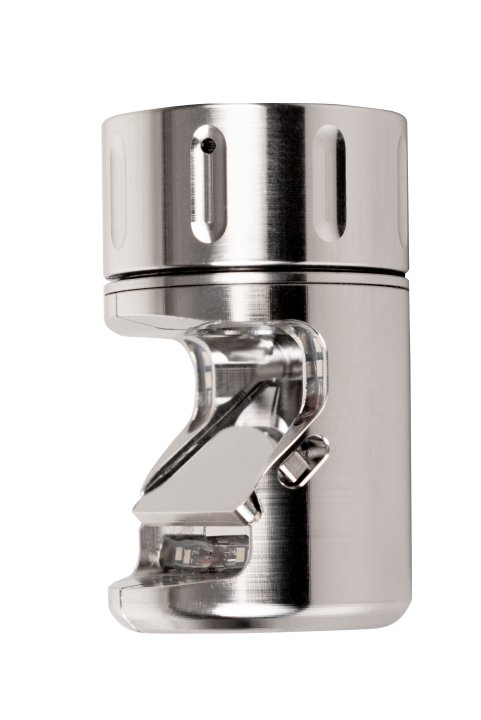

  • Mirror attachment available

Specifications

Diameter
30 mm (1,18")
Length
138 mm (5,4"), 166 mm (6,5") with mirror
Weight
400g (0,9 lbs), 500g (1,2 lbs) with mirror
Housing material
Stainless steel
Radiation tolerance (dose rate)
1 000 Gy/h (100 000 rad/h)
Radiation tolerance (total dose)
50 000 Gy (5 000 000 rad)
Maximum temperature
50°C, 122°F
Water tightness
min 3,5 bar, 50 psi
Resolution HD version
720p

Calculated values for different lens options

Focal length
2,9 mm (not compatible with mirror)
Field of view in air
H71° x V43°
Field of view in water
H53° x V32°
Focal length
3,6 mm (not compatible with mirror)
Field of view in air
H57° x V34°
Field of view in water
H43° x V26°
Focal length
4,0 mm
Field of view in air
H52° x V31°
Field of view in water
H39° x V23°
Focal length
6,0 mm
Field of view in air
H34° x V21°
Field of view in water
H26° x V16°
Focal length
8,0 mm
Field of view in air
H26° x V16°
Field of view in water
H20° x V12°
Focal length, non-browning lens
5,0 mm
Field of view in air
H41° x V25°
Field of view in water
H30° x V18°
