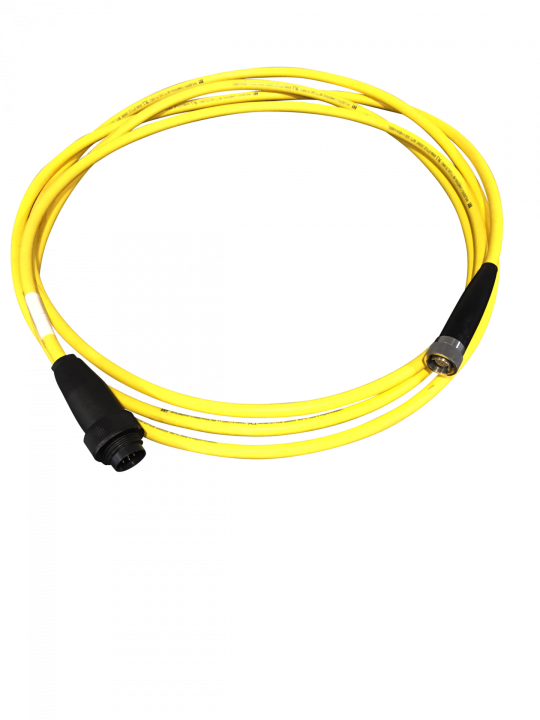

Lighting Cable T12

LED LIGHTING CABLE

The T12 is an underwater cable used for Ahlberg Cameras LED pond lights, Ahl-Light 70 and Ahl-Light 35. The cable is reinforced with an internal wire in order to resist the weight from hanging lamps.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Minimum Bend Radius, Flexible Installation
    Minimum Bend Radius, Flexible Installation
    Outer sheath
    TPE-U-PUR100
    Color
    Yellow
    Weight
    0.17 kg/m, 0.114 lbs/ft
    Tensile Strength
    Number of conductors
    12

  • Environmental Tolerances

    Radiation Tolerance (total dose)
    100 000 Gy (10 000 000 rad)
    Temperature Rating
    -25°C to +70°C (-13°F to +158°F)
    Water Tightness

Areas of application

More information about Lighting cable T12

Applications

  • Cable for LED pond lights
  • Connects the light with the power supply
  • Power supply can be placed both in air and underwater

Benefits

  • A strong flexible cable with internal wire
  • Works with both underwater and in-air power supply

Downloads
