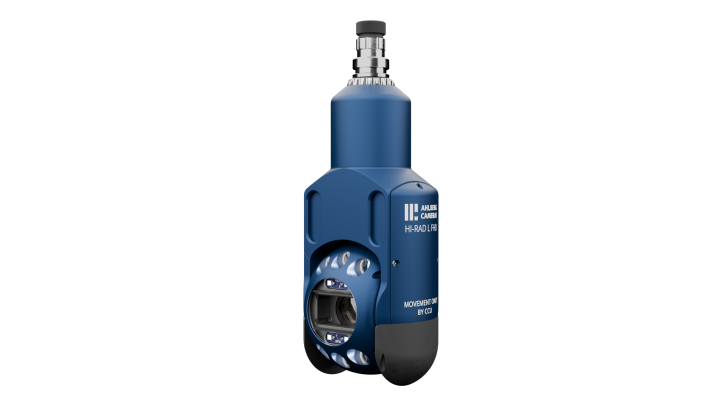

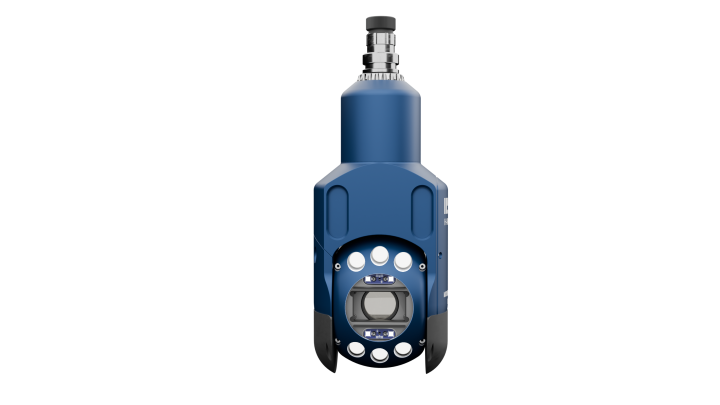

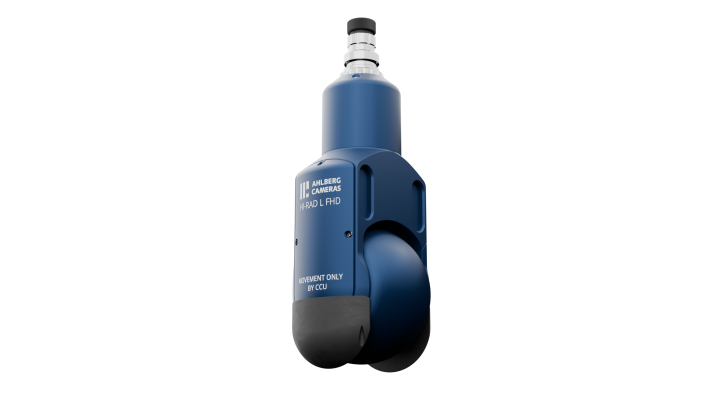

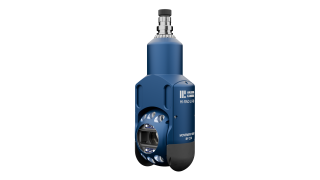

HI-RAD L FHD

SERVICE INSPECTION CAMERA

The HI-RAD L FHD can be used for applications where the radiation level is high and where camera size is less crucial, e.g. during core mapping and baffle plate inspections. This new 4th generation of HI-RAD comes with Full High Definition at 1080p.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Weight
    Housing material
    Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316, Anodized Aluminum
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution
    1080p
    Frames Per Second
    25 or 30
    Zoom
    x100 (x10 optical, x10 digital)
    Horizontal Angle View
    ~5°-51°
    Minimum Distance To Object

  • Mechanical Features

    Pan Angle
    360° (endless rotation)
    Pan Speed (max)
    45°/sec (360° = 8 sec)
    Pan Speed (min)
    1.75°/sec
    Tilt Angle
    ±135° (from the vertical plane)
    Tilt Speed (max)
    12.8°/sec
    Tilt Speed (min)
    2.5°/sec

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    500 Gy/h (50 000 rad/h)
    Radiation Tolerance (total dose)
    4 300 Gy (430 000 rad)
    Maximum Operating Temperature
    Water Tightness

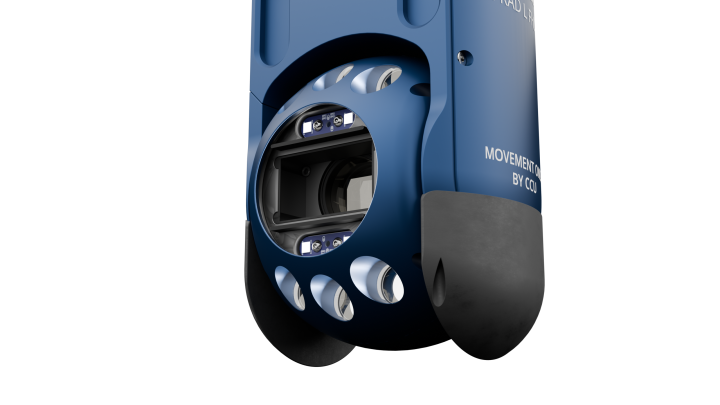

  • Integrated Lightning

    Type
    10 LED-lights
    Output
    2300 lumen

Areas of application

More information about HI-RAD L FHD

Applications

  • Baffle Bolt Inspection
  • Bottom Nozzle Inspection
  • S/N Identification
  • Fuel Inspection
  • FOSAR-Foreign Object Search and Retrieval
  • Spent Fuel Pool Inventory
  • Gap Checks
  • Real Time Core Verification
  • ISI Code Exams
  • Decommissioning

Key Improvements

  • More robust design
  • Reduced weight & size
  • Higher resolution
  • Improved recall position accuracy
  • Increased pan/tilt precision
  • Ergonomical design for easy handling
  • Optional shock absorption pads

Benefits

  • Auto-focus and auto-iris
  • Superior color rendition and high definition image
  • Lens converters are available to further improve its close-range focusing excellence
  • Powerful LED lighting
