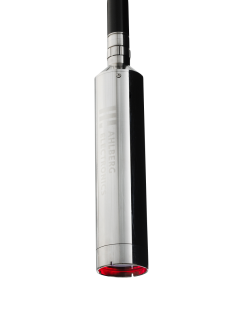

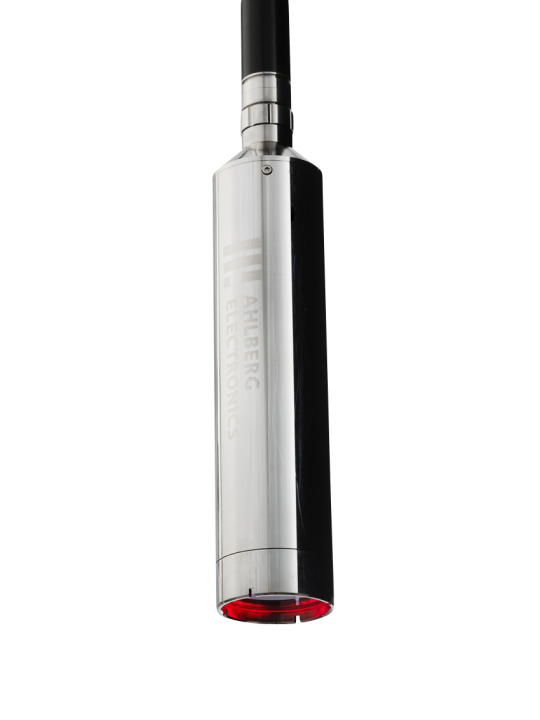

N66HR

HIGH RADIATION TOLERANT UNDERWATER OR IN AIR MONOCHROME TUBE CAMERA

The N66HR is a monochrome tube B/W camera designed for inspections of areas with very high radiation. Specially engineered for seamless compatibility with our CCU200 and PIS200 systems

Prefer units:

Technical specifications

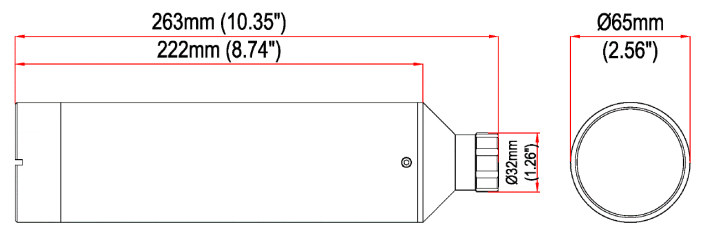

  • Physical Characteristics

    Width
    65 mm, 85mm with x6 and x10 zoom lens
    Length
    Weight
    1 kg, 2 kg with zoom lens (2.2 lbs, 4.4 lbs)
    Housing material
    Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316
    Front glass material
    Polycarbonat

  • Optical Features

    Resolution SD
    700 TV-lines
    Zoom
    x3, x6 or x10 optical available as option

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    10 000 Gy/h (1 000 000 rad/h)
    Radiation Tolerance (total dose)
    700 000 Gy (70 000 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type
    Internal LED-lights

Areas of application

More information about N66HR

Applications

  • Ideal for inspections of high radiation parts of reactor vessels and internal parts in reactors
  • For special inspection of high-radiation areas with very limited access
  • For surveillance during fuel assembly examinations

Benefits

  • Small size
  • High radiation tolerant
  • The lights in the internal LED-ring can operate underwater as
    well as in air
  • Can be operated while suspended by cable only

Benefits

  • Remotely controlled LED intensity
  • Temperature tolerant
  • Can be controlled by Ahlberg CCU200 and PIS200 control units
  • Made for both underwater and CCTV usages
