AHL-LIGHT 15

LED DROP LIGHT

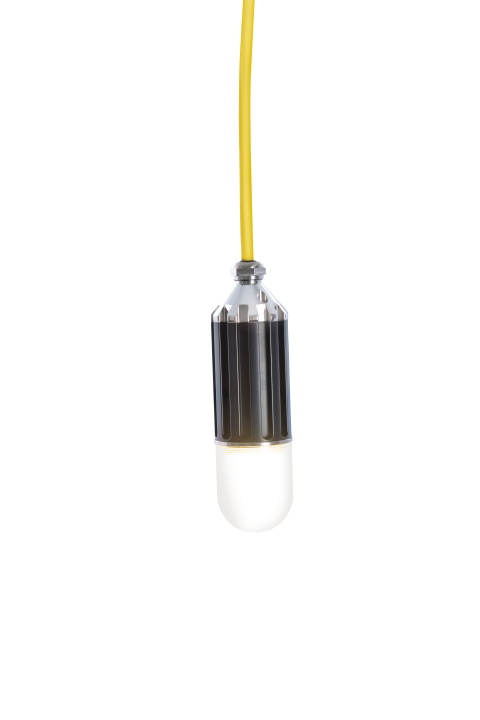

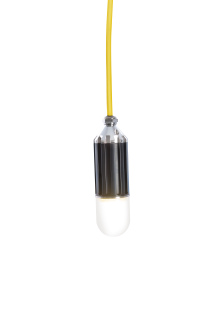

The AHL-LIGHT 15 is a small LED light that can illuminate narrow working areas.

Prefer units:

Technical specifications

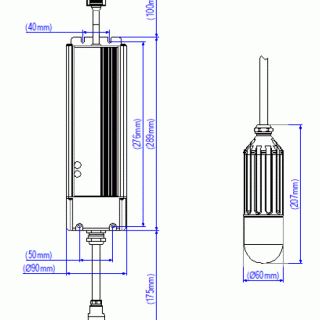

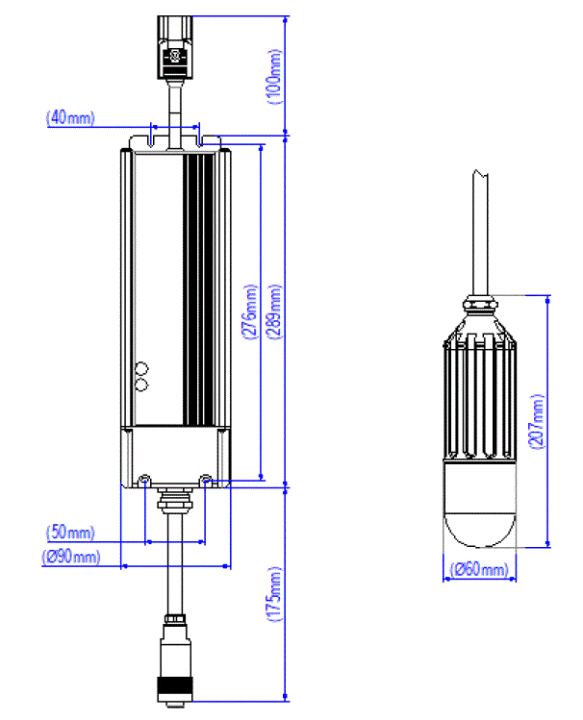

  • Physical Characteristics

    Width
    Height
    Weight
    Housing material
    Anodized aluminum, Stainless steel
    Front glass material
    PUR

  • Lighting Features

    Type
    LED 100-240 VAC, 50/60 HZ
    Typical luminous flux
    15 000 lumen
    Life time
    >50 000 h

  • Environmental Tolerances

    Radiation tolerance (total dose)
    Maximum temperature
    50°C, 70°C for short periods (122°F, 158°F)
    Water Tightness

  • Cable Features

    Maximum cable length
    425 m

Areas of application

More information about AHL-LIGHT 15

Applications

  • Underwater nuclear drop light
  • Ideal for work in reactor and fuel pools
  • Works together with a separate power supply unit

Benefits

  • Low maintenance costs due to its long life-time
  • 15 000 lumen light output
  • FME approved design – no loose parts can enter the pool water
