Mast Camera 180

BWR REFUELING MACHINE CAMERA

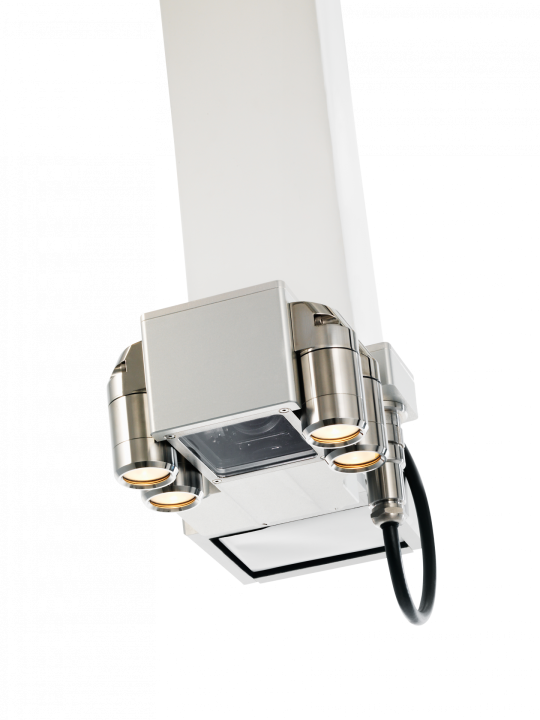

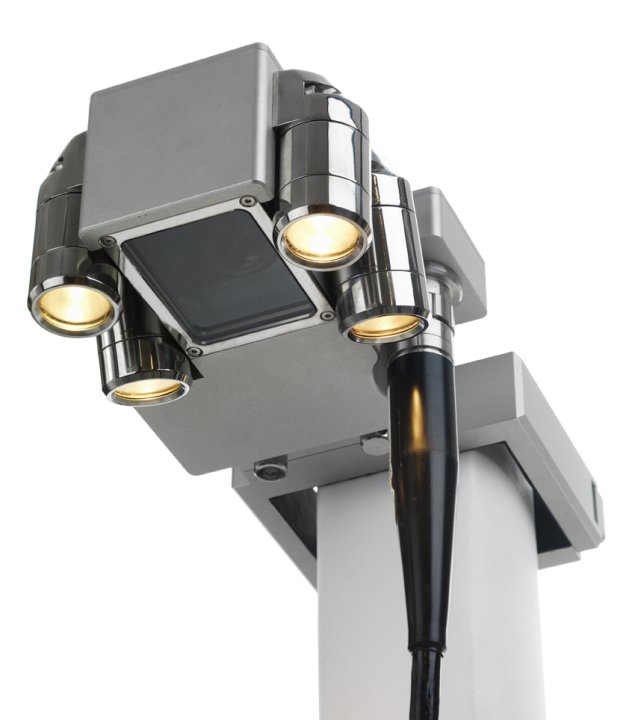

The Mast Camera 180 is a high radiation tolerant camera designed for permanent installation on a BWR refueling machine mast. It enables the machine operator to read the fuel assembly top nozzle identification number and view the fuel assembly lower part to facilitate core grid guidance. It is excellent in a BWR for supervision during fuel handling and core mapping.

Prefer units:

Technical specifications

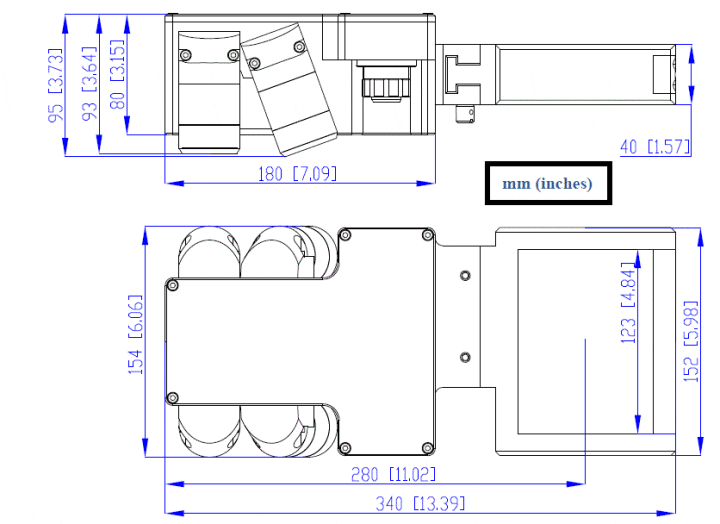

  • Physical Characteristics

    Width
    Length
    Heigth
    Weight
    Housing material
    Stainless steel EN 1.4303 anodized aluminum
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution SD Version
    720 TV-lines
    Resolution HD Version
    720p
    Zoom
    x10 optical x10 digital giving x100
    Minimum Distance to Object
    5 mm (0.20")

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    1 000 Gy/h (100 000 rad/h)
    Radiation Tolerance (total dose)
    10 000 Gy (1 000 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Mechanical Features

    Tilting Mirror
    0-45°

  • Integrated Lightning

    Type
    4 x S40-35RA Halogen

Areas of application

More information about Mast Camera 180

Applications

  • Supervision during fuel handling
  • Used for core mapping

Benefits

  • Auto-positioning functions of zoom, tilt, and focus
  • Tilting mirror to see gripper and guide fuel into the right position
