HI-RAD L

SERVICE INSPECTION CAMERA

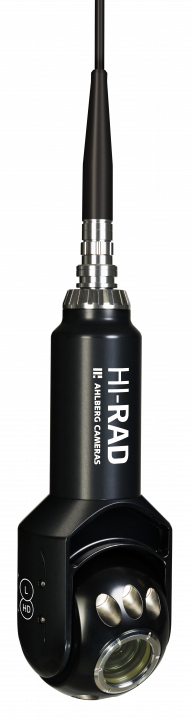

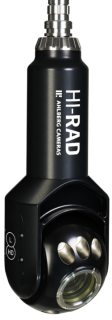

HI-RAD L

HI-RAD L can be used for applications where the radiation level is high and where camera size is less crucial, e.g. at core mapping and baffle plate inspection. As all HI-RAD cameras it is available in both SD and HD resolution.

Applications

  • For inspections where superior color rendition and High Definition resolution is needed, e.g. fuel inspections and inspection of internal parts
  • Ideal for inspection of large surfaces where frequent auto re-focusing is required, e.g. at core mapping

Benefits

  • Auto-focus and auto-iris
  • Superior color rendition and high definition image
  • Lens converters are available to further improve its close-range focusing excellence
  • Available in both SD and HD video version
  • Powerful LED lighting

Specifications

Width
148 mm (5,83")
Length
436 mm (17,2")
Weight
14 kg (31 lbs)
Housing material
Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316, anodized aluminum
Radiation tolerance (dose rate)
500 Gy/h (50 000 rad/h)
Radiation tolerance (total dose)
4 300 Gy (430 000 rad)
Maximum temperature
50°C (short-term up to 70°C), 122°F (short-term up to 158°F)
Water tightness
min 3,5 bar (50 psi)
Zoom
x100 (x10 optical, x10 digital)
Minimum distance to object
5 mm (0,20")
SD horizontal angle of view
~5°-36°
HD horizontal angle of view
~5°-51°
Resolution SD version
720 TV-lines
Resolution HD version
720p
Lights
6 LED-lights, in total 5400 lumen, 38° beam angle
Pan angle
360° (endless rotation)
Tilt angle
±142° (from the vertical plane)
