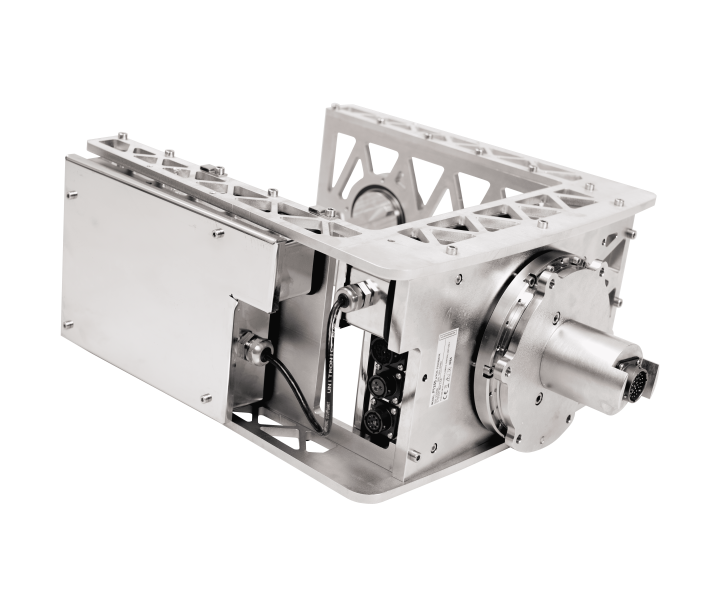

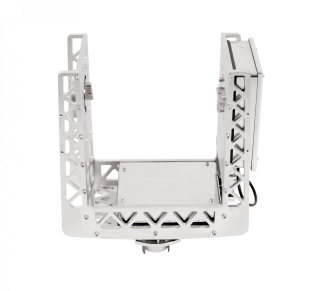

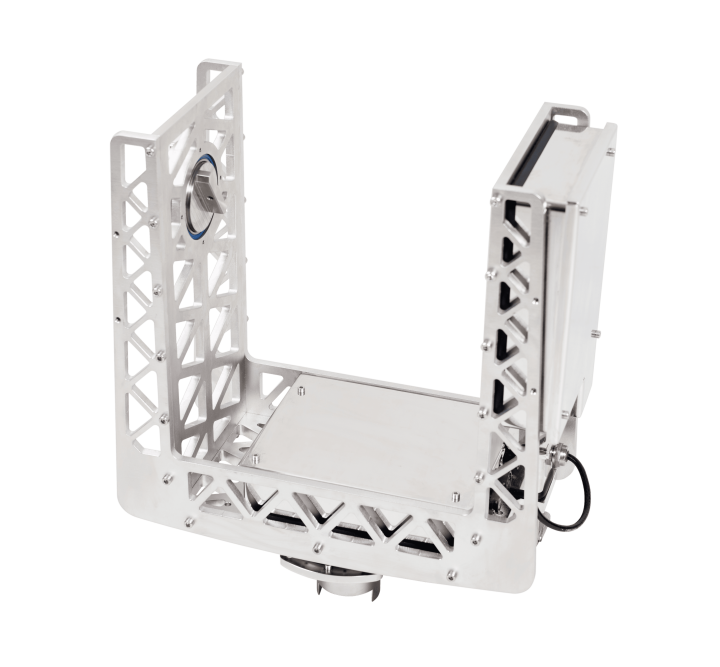

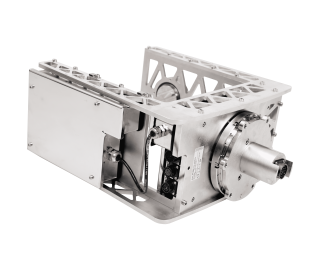

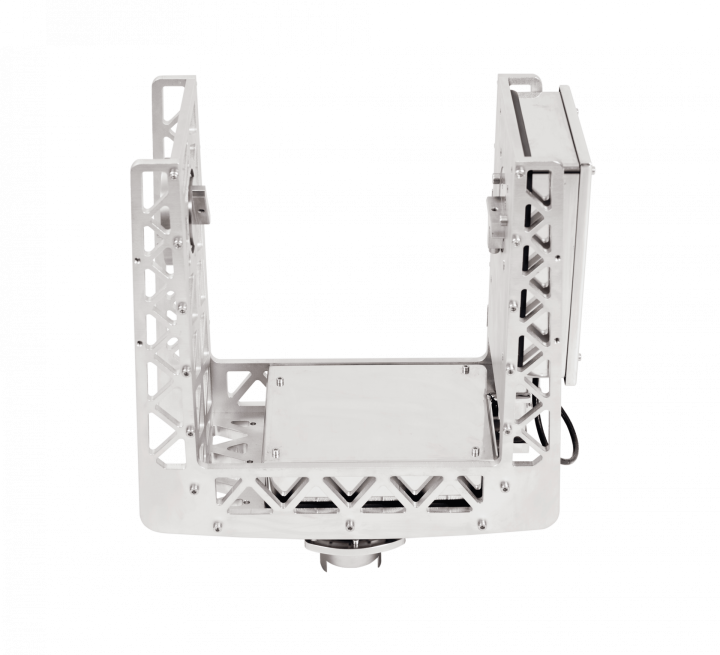

PT255

PAN-AND-TILT UNIT FOR THE CCTV90/95/98 and CCTV116 CAMERAS

The PT255 is a pan-and-tilt unit for the CCTV90/95/98 and CCTV116 cameras. It seamlessly regulates its movements and can be equipped with potentiometer for pan-and-tilt registration.

Prefer units:

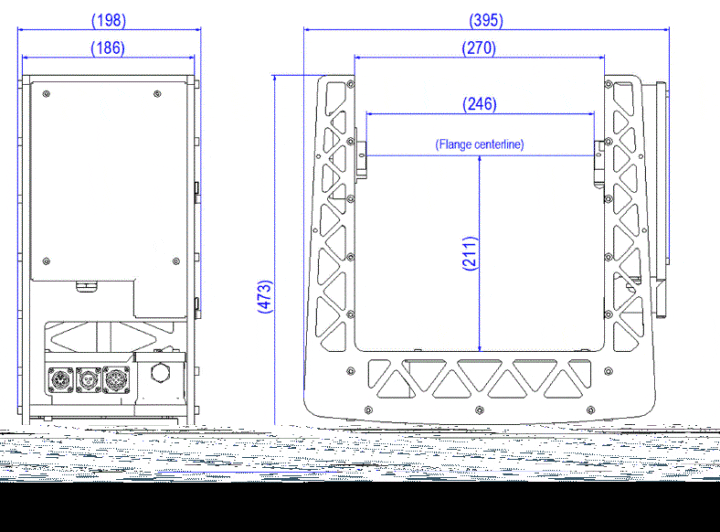

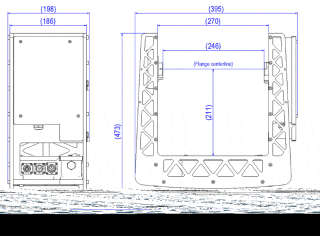

Technical specifications

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Housing material
    Stainless steel

  • Mechanical Features

    Pan Angle
    324° (adjustable 84° to 360°)
    Tilt Angle
    180° (90-0-90°)

  • Environmental Tolerances

    Temperature Range
    5-70°C (41-158°F)
    Radiation tolerance (total dose)
    1 000 000 Gy (100 000 000 rad)

Areas of application

More information about PT255

Applications

  • Pan-and-tilt unit for use with CCTV90/95/98 and CCTV116

Benefits

  • High radiation tolerance
  • Robust design
  • Seismically certified
  • Can be equipped with potentiometers for pan-and-tilt registration
