CAMERA CABLE T13

FIXED CAMERA CABLE
CAMERA CABLE T13

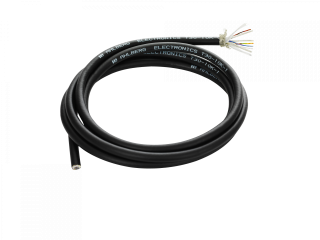

T13 is used for fixed camera installations. The cable does not contain any lifting wire and can thus not keep a camera hanging from the cable.

Applications

  • Camera cable for installations where flexibility is of more importance than cable strength

Benefits

  • A thin and flexible cable, low bend radious

Specifications

Number of conductors
12 + 1 coaxial
Diameter
7 mm (0,28")
Outer sheath
Polyurethane VDE0250
Color
Black
Minimum bend radius, fixed installation
53 mm (2,09")
Minimum bend radius, flexible installation
106 mm (4,18")
Temperature rating
-40°C to +80°C (-40°F to +176°F)
Weight
0,17 kg/m
Ingress protection
IP68 (underwater part)
Water tightness
3,5 bar (35m)
Tensile strength
1 900 N
Radiation tolerance (total dose)
2 000 000 Gy (200 000 000 rad)
