CAMERA CABLE T18

MINI-RAD 30 HD CAMERA CABLE

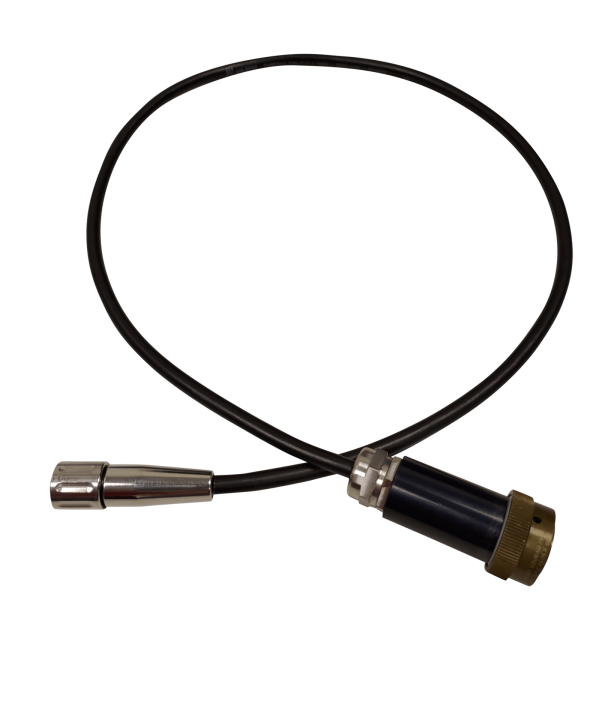

CAMERA CABLE T18

The T18 cable is designed to fit the Mini-Rad 30 HD camera. It is a flexible cable that can handle the camera hanging from the cable only.

Applications

  • Cable for underwater use or in air together with the Mini-Rad 30 HD camera

Benefits

  • Equipped with a reterminable connector for use in air and a moulded connector for underwater use

Specifications

Outer sheath
PUR, frosted
Minimum bend radius, fixed installation
35 mm (1,37")
Minimum bend radius, flexible installation
105 mm (4,13")
Diameter
7 mm (0,27")
Color
Black
Number of conductors
18
Water tightness
5 bar (50 m)
Ingress protection
IP68 (underwater part)
Temperature rating
-40°C to +80°C (-40°F to +176°F)
Weight
0,08 kg/m
Tensile strength
800 N
Radiation tolerance (total dose)
2 000 000 Gy (200 000 000 rad)
