IMAGE MEASUREMENT

OBJECT SIZING
IMAGE MEASUREMENT

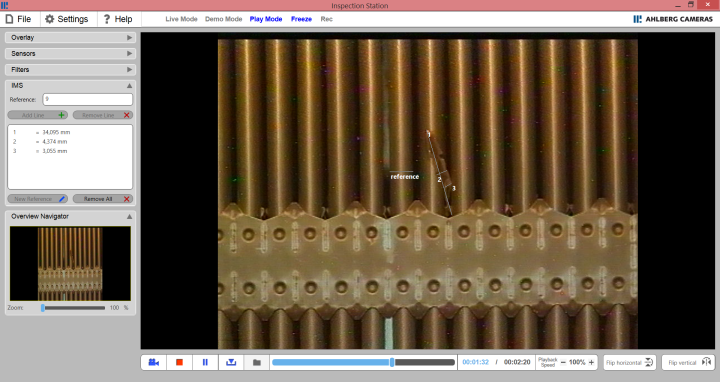

The Image Measurement software enables sizing of objects during the course of inspection. The software measures two-dimensional objects by mouse-clicking on a captured image; it is required that the user adds a known reference before measuring.

Applications

  • The Image Measurement software is a part of the Inspection Station base package
  • The Image Measurement software is also available as separate software

Benefits

  • Includes a video overlay application, with which textboxes can be added to the picture
  • Measuring accuracy is down to 0.1 mm where the camera-to-object distance, angle of view and the use of magnification decide the accuracy
