AHL-LIGHT 10

LED WORK LIGHT
AHL-LIGHT 10

AHL-LIGHT 10 can be used with robots and manipulators, or attached to tools for inspection. With a color temperature similar to traditional halogen light, but with a significantly longer lifetime, it has many suitable applications.

Applications

  • Attached to tools, robots and manipulators etc. when working with internal parts and fuel assemblies in reactor and fuel pools.
  • Designed for tool attachment when working with internal parts and fuel assemblies in reactor- and fuel pools.
  • Ideal at inspection works such as 4-face fuel inspection
  • Powered by a camera control unit or a lighting power unit

Benefits

  • 9 000 lumen light output
  • Color temperature suitable for inspections
  • Low maintenance cost due to its long life-time

Specifications

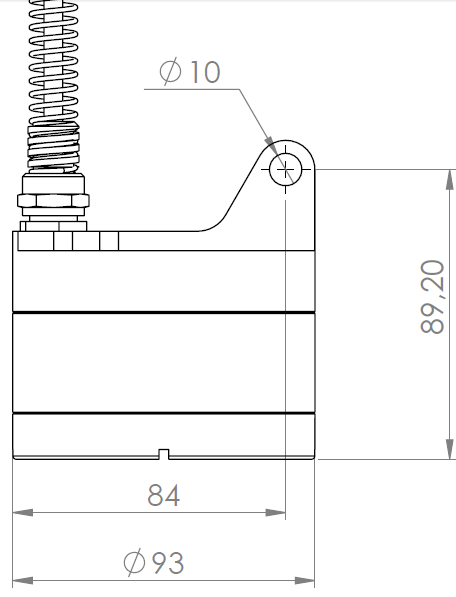

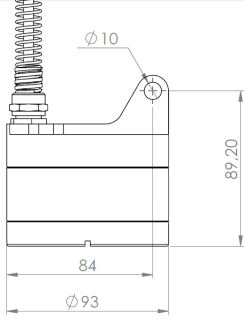

Diameter
93 mm (3,7")
Height
95 mm (3,7")
Weight
1,0 kg (2,3 lbs)
Housing material
Stainless steel EN 1.4301, AISI 304/AISI 316
Front glass material
Polycarbonate
Maximum temperature
50°C, 70°C for short periods (122°F, 158°F)
Water tightness
min 3,5 bar (35 m)
Lights
LED
Typical luminous flux
9 000 lumen
Lighting beam angle
64°
Life time
>50 000 h
Radiation tolerance (total dose)
50 000 Gy (5 000 000 rad)
