Cable Reel 560
CAMERA CABLE REEL WITH SLIP RINGS
The Cable Reel 560 is a cable reel with slip rings used for camera cables. It is designed for fixed installation with placement on locations such as a refueling machine or fuel bridge.
Prefer units:

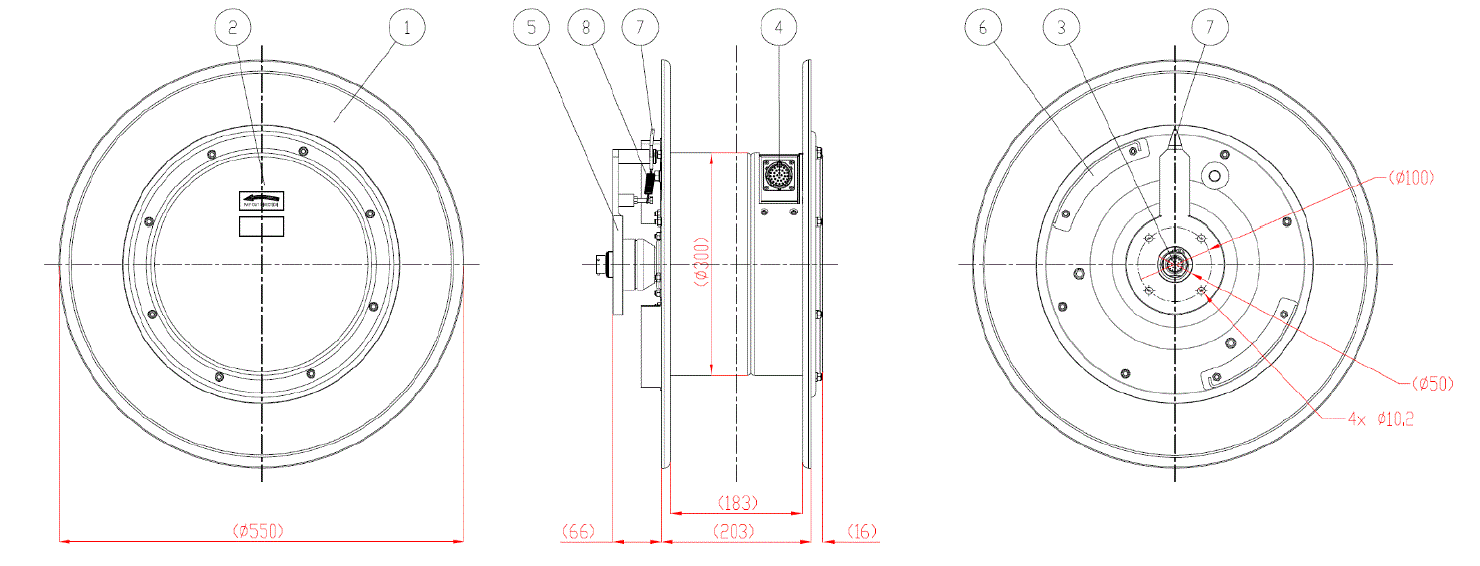

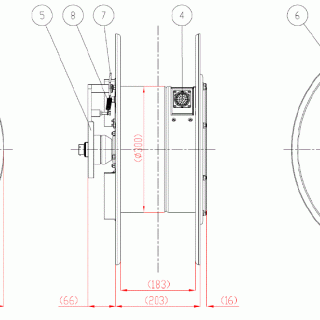

Technical specifications
-
Physical Characteristics
- Drum Diameter
- 300 mm 9.85"
- Outer Diameter
- 550 mm 14.97"
- Maximum Cable Length
- 40 m 114.8 ft
- Weight Without Cable
- 35 kg 77 lbs
- Width
- 324 mm 12.7"
- Slip Rings
- Yes
- Motorized Cable Reel
- Speed and torque depends on payload and cable length, 30kg payload = 0,2 m/s Powered by 2A@24VDC Position feedback and memorized positioning possible
Areas of application
More information about cable reel 560
Applications
- For fixed installation on refueling machines and fuel bridges
Benefits
- Automatic tension control during winding and unwinding
- Equipped with ratchet
- Integrated camera cable connectors
- Specially designed for prolonging the camera cable lifetime through eliminating cable twisting in more than one direction
- Motorized cable reel is optional
