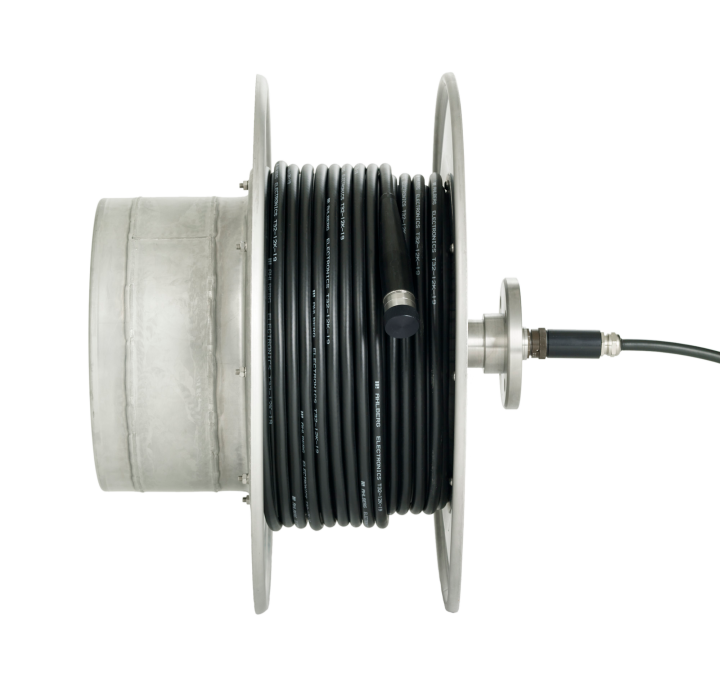

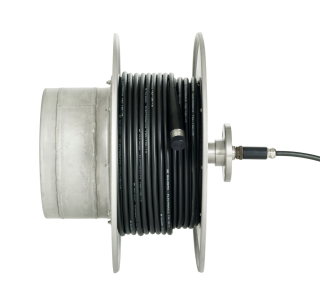

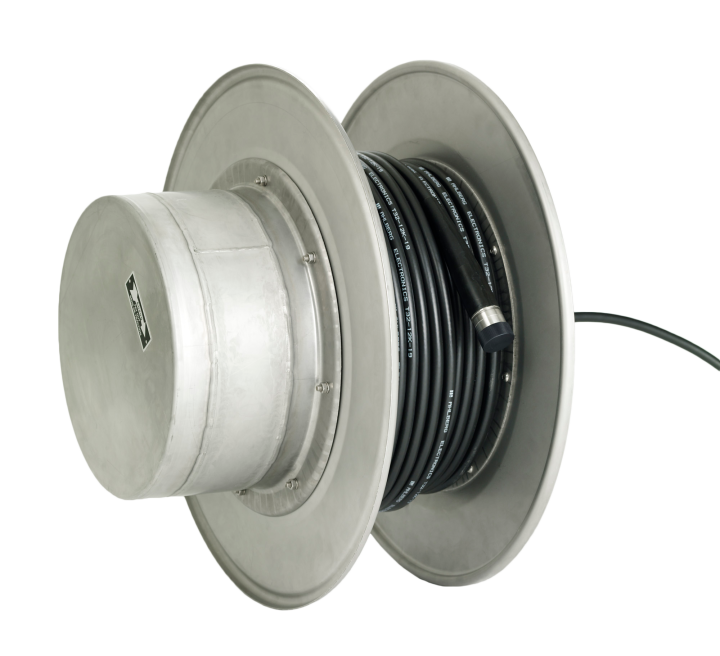

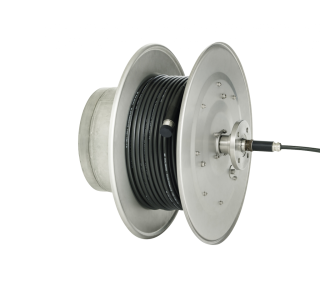

Cable Reel 570

LIGHTING CABLE REEL WITH SLIP RINGS

The Cable Reel 570 is a cable reel with slip rings used for lighting cables. It is designed for fixed installation with placement on locations such as a refueling machine or fuel bridge.

Prefer units:

Technical specifications

  • Physical Characteristics

    Drum Diameter
    Outer Diameter
    Maximum Cable Length
    Weight Without Cable
    Width
    Slip Rings
    Yes
    Motorized Cable Reel
    Speed and torque depends on payload and cable length, 30kg payload = 0,2 m/s Powered by 2A@24VDC Position feedback and memorized positioning possible

Areas of application

More information about cable reel 570

Applications

  • For fixed installation on refueling machines and fuel bridges

Benefits

  • Automatic tension control during winding and unwinding
  • Equipped with ratchet
  • Integrated lighting cable connectors
  • Specially designed for prolonging the lighting cable lifetime through eliminating cable twisting in more than one direction
  • Motorized cable reel is optional
