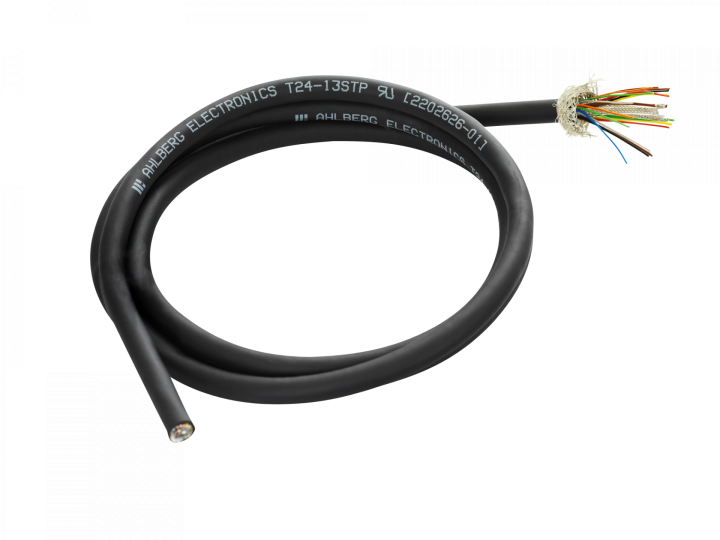

CCTV Cable T24

FIRE RESISTANT CCTV CABLE

The T24 is a shielded twisted pair cable used in CCTV installations. It is halogen free and flame resistant. The T24 connects the camera/light/microphone/pan-and-tilt unit with the control unit. The control unit/protocol inverter is usually placed in an adjacent room with a lower degree of radiation.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Minimum Bend Radius, Fixed Installation
    Minimum Bend Radius, Flexible Installation
    Outer sheath
    PUR, frosted
    Color
    Black
    Weight
    0.26 kg/m, 0.175 lbs/ft
    Tensile Strength
    Number of conductors
    23 + 1 coax

  • Environmental Tolerances

    Radiation Tolerance (total dose)
    2 000 000 Gy (200 000 000 rad)
    Temperature Rating
    -40°C to +80°C (-40°F to +176°F)

Areas of application

More information about cctv cable T24

Applications

  • Cable for CCTV use

Benefits

  • Fire resistant, Category A according to IEC 60332-3-22:2000
