CCU200

CAMERA CONTROL UNIT

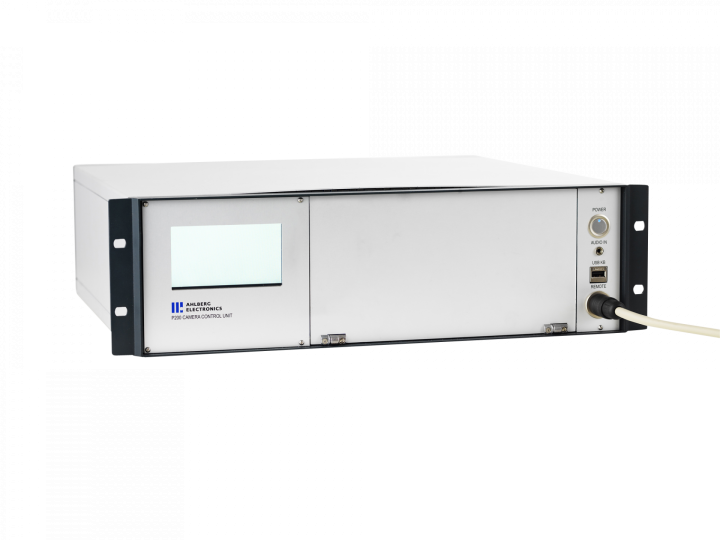

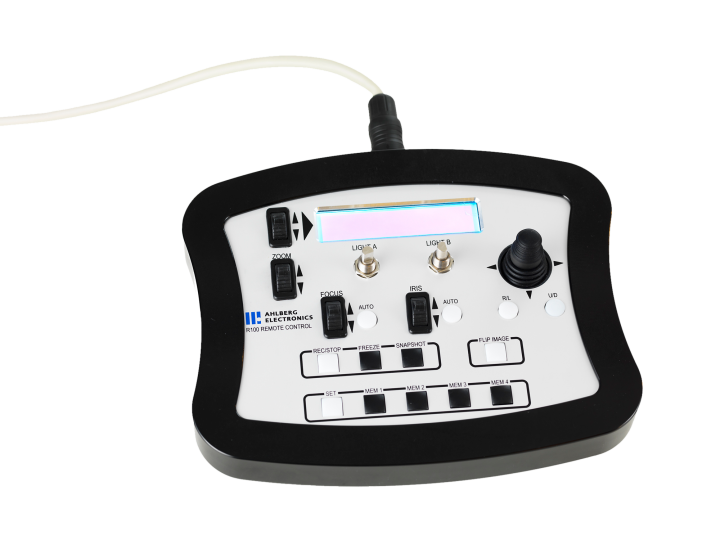

The CCU200 is a state-of-the-art multi-functional Camera Control Unit for SD and HD cameras. It is a scalable unit: optional functions such as recording and video overlay can via plug-in circuit boards be added to the basic camera control functions. The front panel houses a remote-control connection for the hand-held remote-control unit.

Prefer units:

Technical specifications

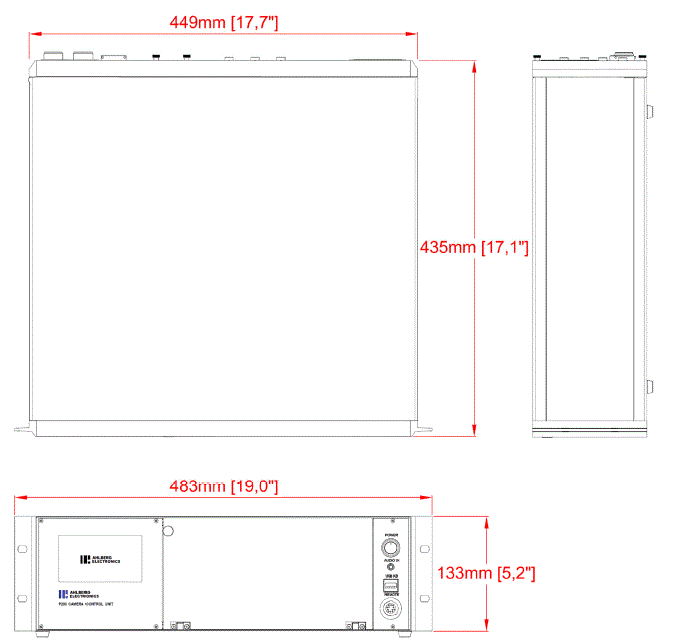

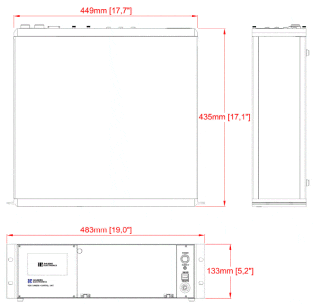

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Housing material
    Aluminum

  • Environmental Tolerances

    Operating Temperature

  • Power

    Power Supply
    100-240VAC / 47-63 Hz / 1000W

  • Outputs

    Video Outputs
    SDI

  • Options

    Recording module (option)
    H.264 SD memory card recording
    Video overlay (option)
    Free text, date, time, zoom, focus distance, pan and tilt values on screen display

Areas of application

More information about CCU200

Applications

  • Under water inspections
  • Hot Cell

Benefits

  • Multi-functional control unit for most Ahlberg HD, SD and monochrome tube cameras with pan-and-tilt units and lights
  • To be mounted on a rack, 19″ 3U
  • Scalable functions like Video Overlay and Video Recording can be added to the basic camera functions.

Benefits

  • Controls both SD and HD cameras
  • No calibrations required when changing camera or camera cable
  • Can be controlled via Pelco interface
