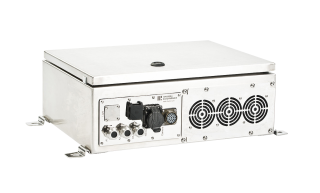

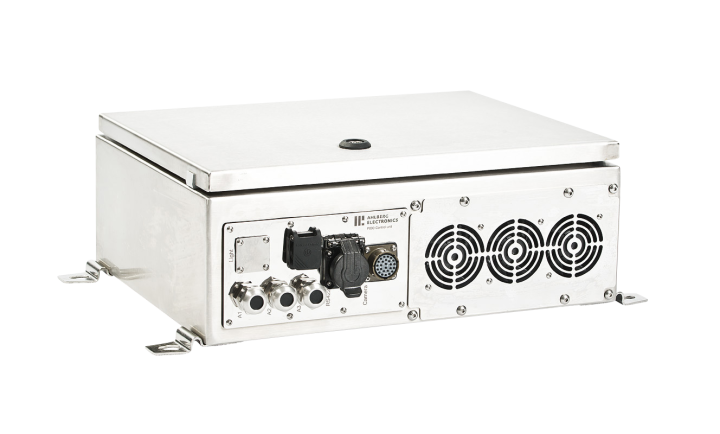

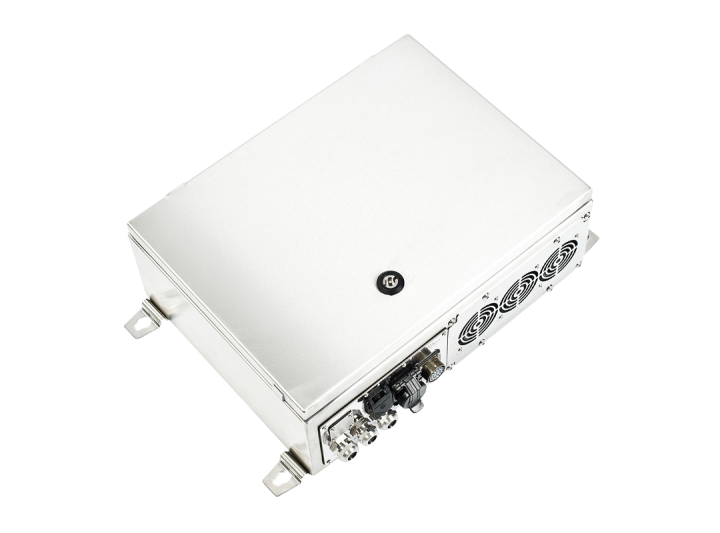

CCU890

CCTV CAMERA CONTROL UNIT

The CCU890 is a versatile CCTV camera control unit that manages both pan-and-tilt functions and adjacent lighting units. It offers flexible operation, allowing control via a Pelco hand-held remote or integration with an external control system using Pelco protocol, ensuring seamless performance

Prefer units:

Technical specifications

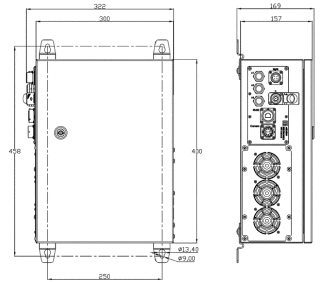

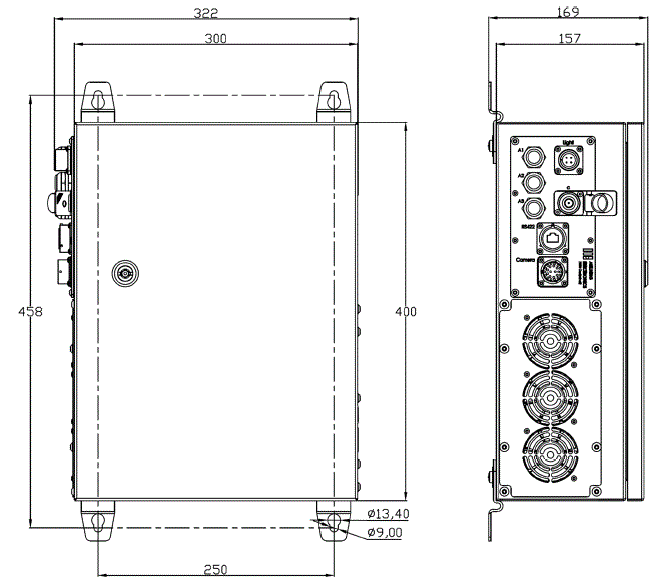

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Housing material
    Stainless steel

  • Environmental Tolerances

    Operating Temperature
    -20°C to +60°C (-4°F to +140°F)

  • Power

    Power Supply
    100, 110, 120, 220 or 230VAC / 50-60 Hz / 500W
    Lighting Power Supply
    Yes

  • Outputs

    Video Outputs
    Composite, SD, HD
    External Lighting Output
    2 channels

  • Communication

    Communication Protocol
    Pelco D

Areas of application

More information about CCU890

Applications

  • CCTV
  • Under water inspections
  • Hot Cell

Benefits

  • CCTV camera control unit that supplies power and controls camera, pan-and-tilt, lighting and microphone units
  • Control via a Pelco hand-held remote or external control system
  • Controls both SD and HD cameras

Benefits

  • Supports camera cooling
  • High temperature tolerant
  • The unit can also be delivered in a high radiation tolerant version, CCU890HR
