PIS200

PORTABLE INSPECTION SYSTEM

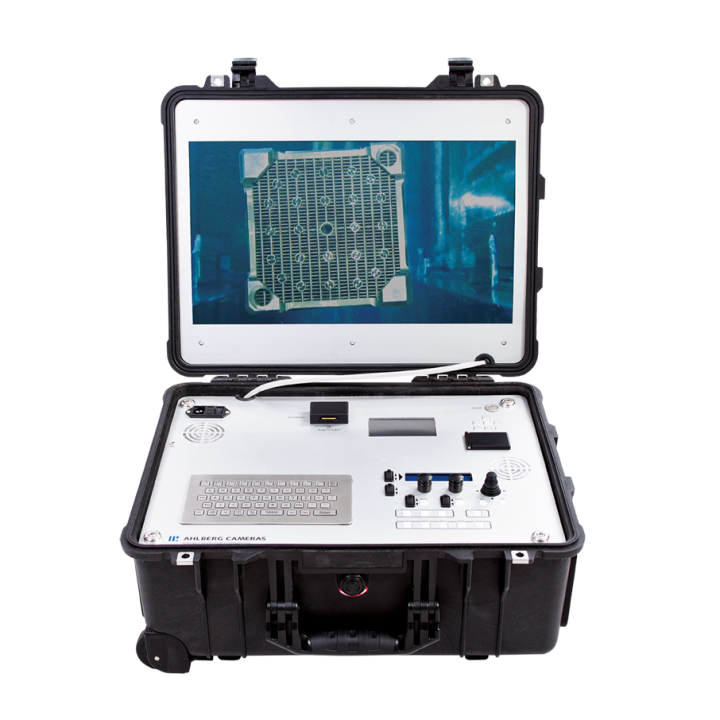

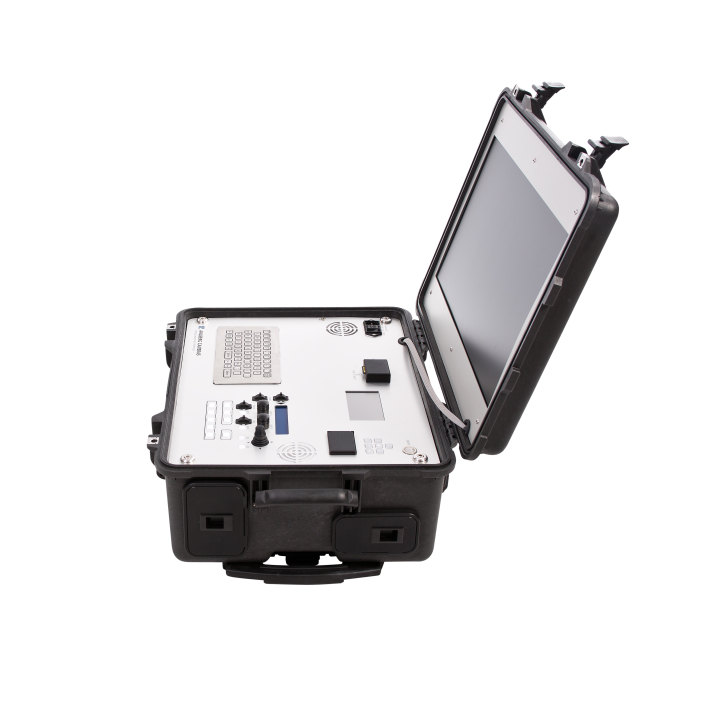

The PIS200 is a Portable Inspection System for use with inspection cameras and lighting. Fitted in a rolling suitcase the PIS200 is a flexible monitoring system that is equipped with control panels, DVR and a large HD-screen.

Prefer units:

Technical specifications

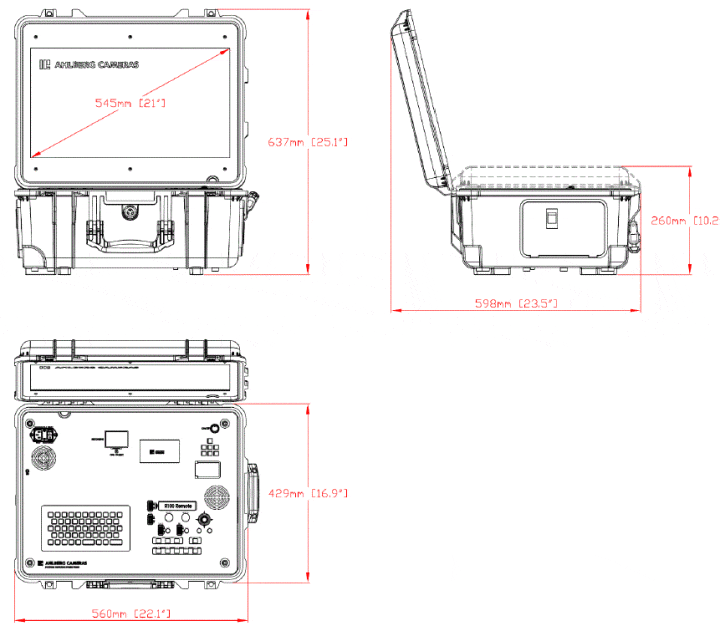

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Housing material
    Polypropylene

  • Environmental Tolerances

    Operating Temperature

  • Power

    Power Supply
    90-260VAC / 47-63 Hz / max 800W

  • Outputs

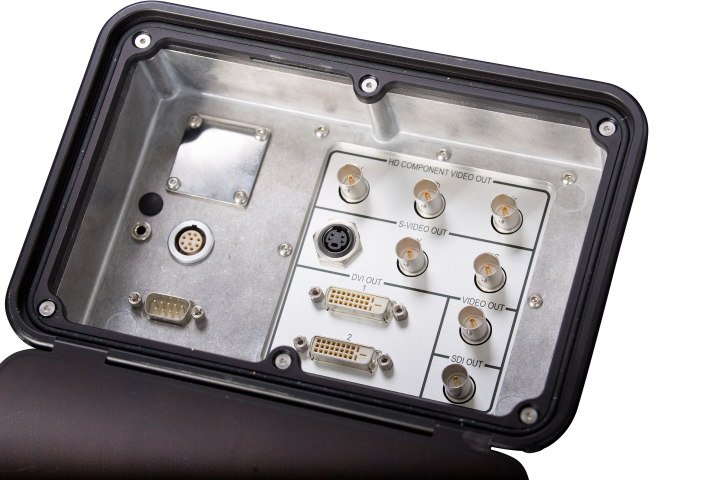

    Video Outputs
    S-video, Composite, SD/HDcomponent, DVI-D and SDI

  • Options

    Video overlay (option)
    Free text, date, time, zoom, focus distance, pan and tilt values on screen display

Areas of application

More information about PIS200

Applications

  • Under water inspections
  • Hot Cell

Benefits

  • Portable control unit
  • Controls most Ahlberg HD, SD and monochrome tube cameras with pan-and-tilt units and lights.
  • Large, 22″ HD screen
  • No calibrations required when changing camera or camera cable

Benefits

  • Built-in control panel and keyboard

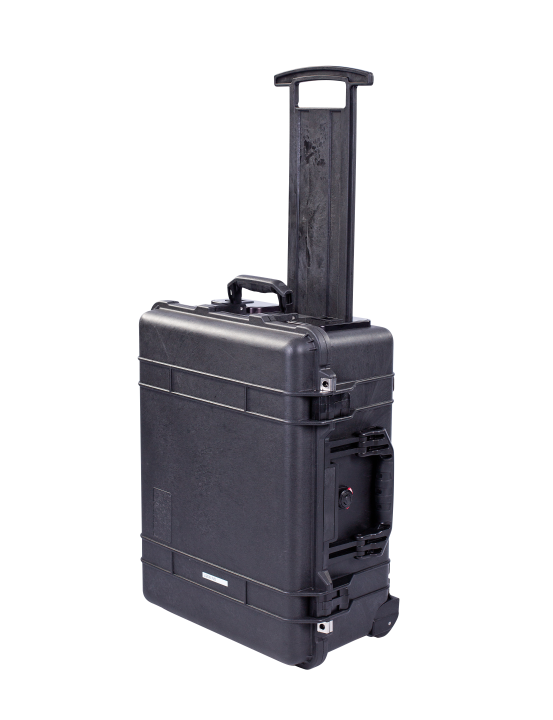

  • The case is equipped with wheels and an adjustable handle
  • Secondary remote control R100 with cable can be connected to the

Downloads
