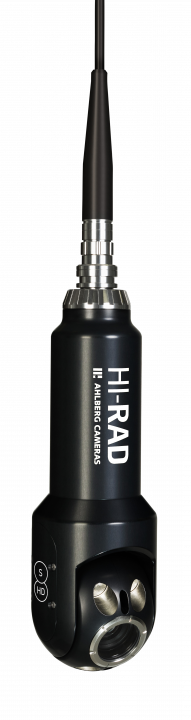

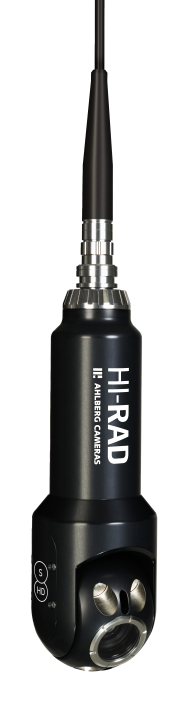

HI-RAD S

SMALL HD PTZ CAMERA

The Hi-Rad S is a small 720p HD color camera developed from its popular predecessor MRAD S. It has built-in pan and tilt functions, x10 optical zoom and is used for underwater inspections in irradiated areas where superior color rendition and high definition resolution is needed.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Weight
    Underwater weight
    Housing material
    Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316, Anodized Aluminum
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution
    720p
    Zoom
    x100 (x10 optical, x10 digital)
    Horizontal Angle View
    ~5°-50°

  • Mechanical Features

    Pan Angle
    360°
    Tilt Angle
    ±142°

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    500 Gy/h (50 000 rad/h)
    Radiation Tolerance (total dose)
    2 700 Gy (270 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type
    4 LED-lights
    Output
    3600 lumen
    Beam Angle
    38°

Areas of application

More information about HI-RAD S

Applications

  • For inspections where superior color rendition and high definition resolution is needed, e.g. fuel inspections and inspection of internal parts
  • Ideal for inspection of large surfaces where frequent auto re-focusing is required, e.g. at core mapping

Benefits

  • Auto-focus and auto-iris
  • Superior color rendition and high definition image
  • Lens converters are available to further improve its close-range focusing excellence
  • Available in SD video version
  • Powerful LED lighting
