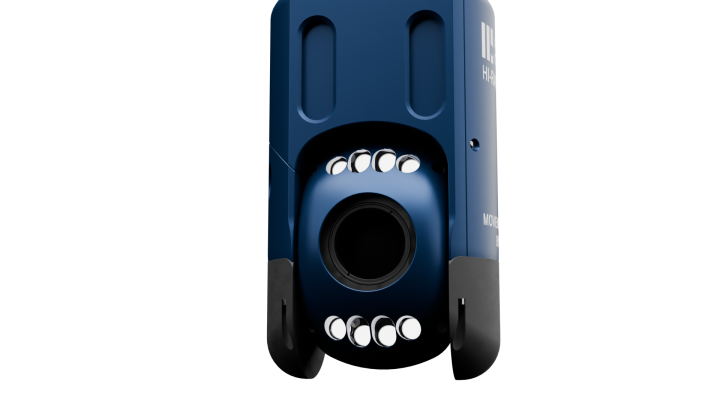

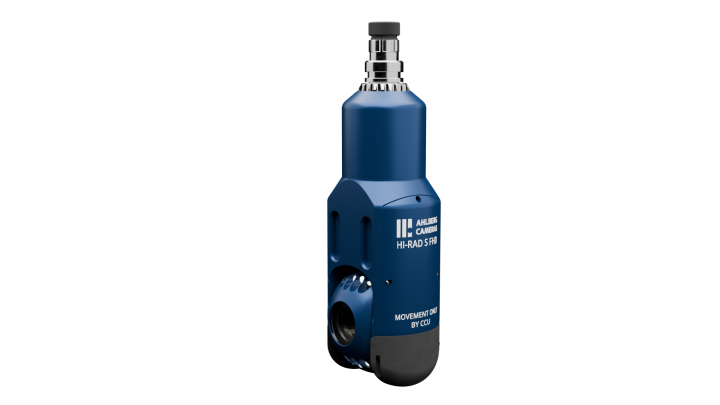

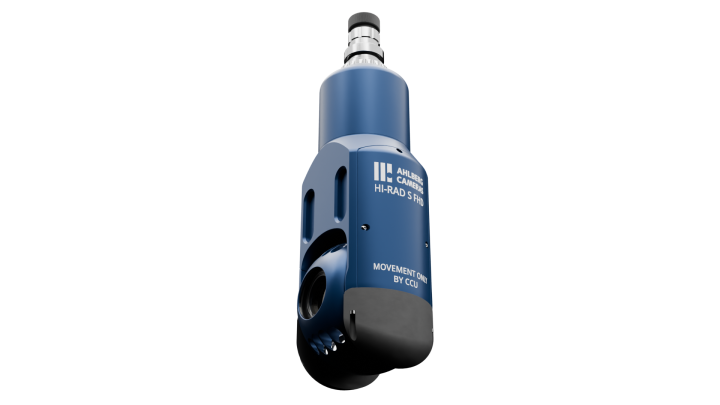

HI-RAD S FHD

SERVICE INSPECTION CAMERA

The Hi-Rad S FHD is a small 1080p FHD camera. It has built-in pan and tilt functions, x10 optical zoom and is used for underwater inspections in irradiated areas where superior color rendition and high definition resolution is needed.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Weight
    Housing material
    Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316, Anodized Aluminum
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution
    1080p
    Frames Per Second
    25 or 30
    Zoom
    x100 (x10 optical, x10 digital)
    Horizontal Angle View
    ~5°-51°
    Minimum Distance To Object

  • Mechanical Features

    Pan Angle
    360° (endless rotation)
    Pan Speed (max)
    45°/sec (360° = 8 sec)
    Pan Speed (min)
    1.75°/sec
    Tilt Angle
    ±135° (from the vertical plane)
    Tilt Speed (max)
    13°/sec
    Tilt Speed (min)
    2.5°/sec

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    360 Gy/h (36 000 rad/h)
    Radiation Tolerance (total dose)
    2 700 Gy (270 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type
    8 LED-lights
    Output
    1800 lumen

Areas of application

More information about HI-RAD S FHD

Applications

  • Baffle Bolt Inspection
  • Bottom Nozzle Inspection
  • S/N Identification
  • Fuel Inspection
  • FOSAR-Foreign Object Search and Retrieval
  • Spent Fuel Pool Inventory
  • Gap Checks
  • Real Time Core Verification
  • ISI Code Exams
  • Decommissioning

Key Improvements

  • More robust design
  • Reduced weight & size
  • Higher resolution
  • Improved recall position accuracy
  • Increased pan/tilt precision
  • Ergonomical design for easy handling
  • Optional shock absorption pads

Benefits

  • Auto-focus and auto-iris
  • Superior color rendition and high definition image
  • Lens converters are available to further improve its close-range focusing excellence
  • Powerful LED lighting
