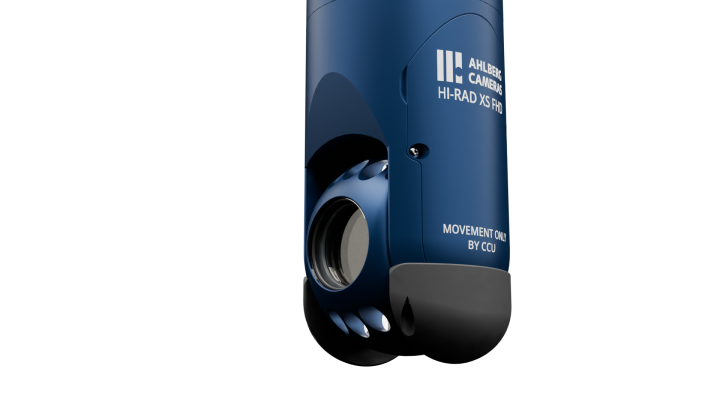

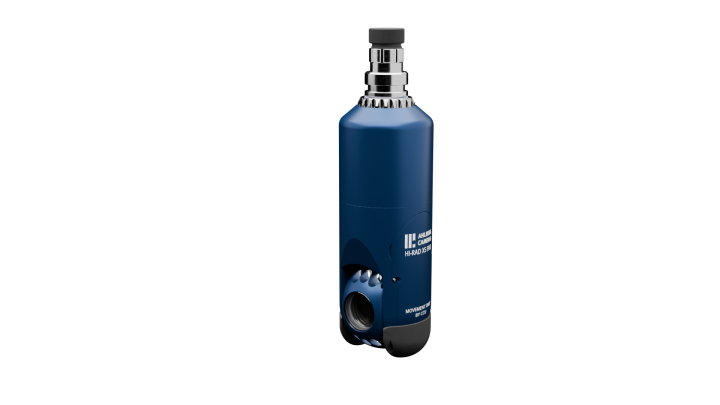

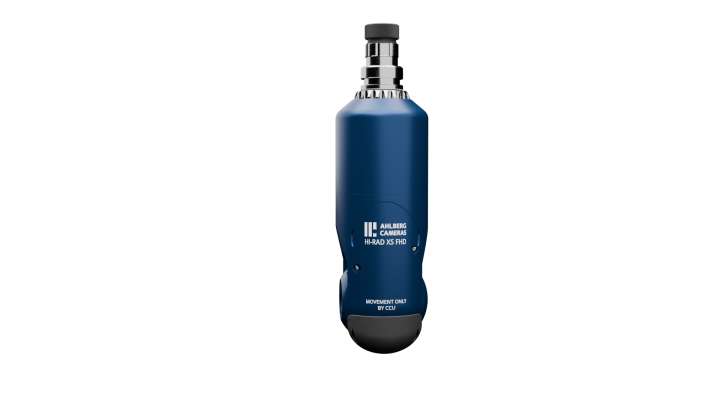

HI-RAD XS FHD

SERVICE INSPECTION CAMERA

The HI-RAD XS FHD is a small camera with x10 times optical zoom and built-in pan and tilt
functions. Thanks to its small size, it is well suited for irradiated areas with limited space.
Like all 4th generation HI-RAD, the XS FHD comes with FHD 1080p resolution.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Weight
    Housing material
    Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316, Anodized Aluminum
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution
    1080p
    Frames Per Second
    25 or 30
    Zoom
    x100 (x10 optical, x10 digital)
    Horizontal Angle View
    ~5°-51°
    Minimum Distance To Object

  • Mechanical Features

    Pan Angle
    360° (endless rotation)
    Pan Speed (max)
    45°/sec (360° = 8 sec)
    Pan Speed (min)
    1.75°/sec
    Tilt Angle
    ±135° (from the vertical plane)
    Tilt Speed (max)
    16°/sec
    Tilt Speed (min)
    2.5°/sec

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    270 Gy/h (27 000 rad/h)
    Radiation Tolerance (total dose)
    1 200 Gy (120 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type
    6 LED-lights
    Output
    1400 lumen

Areas of application

More information about HI-RAD XS FHD

Applications

  • Baffle Bolt Inspection
  • Bottom Nozzle Inspection
  • S/N Identification
  • Fuel Inspection
  • FOSAR-Foreign Object Search and Retrieval
  • Spent Fuel Pool Inventory
  • Gap Checks
  • Real Time Core Verification
  • ISI Code Exams
  • Decommissioning

Key Improvements

  • More robust design
  • Reduced weight & size
  • Higher resolution
  • Improved recall position accuracy
  • Increased pan/tilt precision
  • Ergonomical design for easy handling
  • Optional shock absorption pads

Benefits

  • Auto-focus and auto-iris
  • Superior color rendition and high definition image
  • Lens converters are available to further improve its close-range focusing excellence
  • Powerful LED lighting
