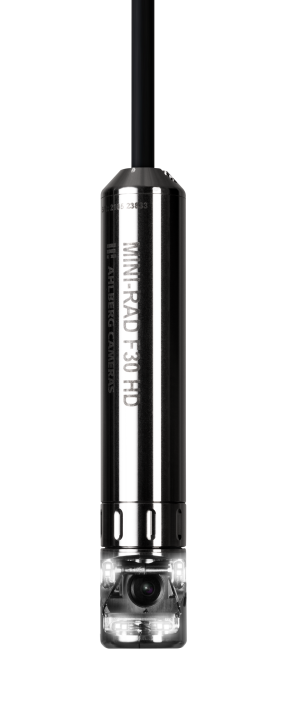

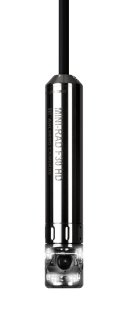

MINI-RAD F30 HD M
IGH RADIATION TOLERANT MINI HD CAMERA WITH MOTORIZED FOCUS
The Mini-RAD F30 HD is a compact, high–radiation-tolerant color camera with motorized focus designed for performance in extreme environments and is ideal for confined spaces. Its small, robust camera module withstands up to 50kGY, and when shielded up to 100kGy. It enables reliable operation in areas where previously only monochrome tube cameras were possible.

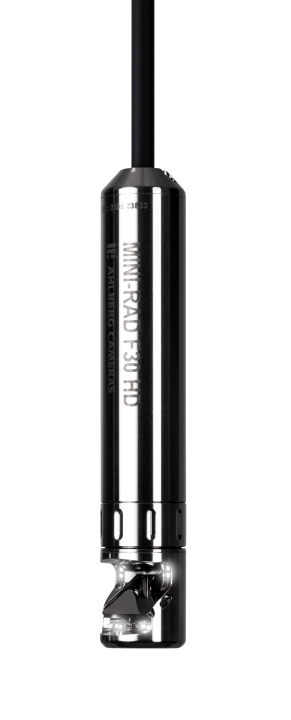

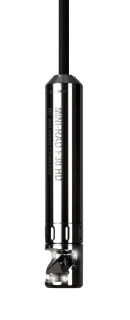

The Mini-RAD F30 HD M is equipped with a mirror attachment. It provides reliable inspection inside tubes and other confined or narrow spaces where direct viewing is not possible
Prefer units:
Technical specifications
-
Physical Characteristics
- Width
- 30 mm 1.18"
- Length
- 166mm 6.5"
- Weight
- 500 g 1.2 lbs
- Housing material
- Stainless steel
- Front glass material
- Polycarbonate
-
Optical Features
- Resolution
- 720p
- Focal length
- 4.0 - 8.0 depending on lens options
- Field of view in air
- H52° x V31°, H34° x V21°, H26° x V15°…
- Field of view in water
- H39° x V23°, H26° x V16°, H20° x V12°….
-
Environmental Tolerances
- Radiation Tolerance (dose rate)
- 1 000 Gy/h (100 000 rad/h)
- Radiation Tolerance (total dose)
- 50 000 Gy (5 000 000 rad)
- Maximum Operating Temperature
- 50 C 122 F
- Water Tightness
- 3.5 bar 50 PSI
-
Integrated Lightning
- Type
- 4 LED-Lights
- Output
- 800 lumen, 4500 K
Areas of application
More information about MINI-RAD F30 HD M
Applications
- Suitable for mounting on an actuator or tool
- Single fuel rod inspection
- On Refueling Machine Mast or manipulator
- Welding applications
- Inspection of graphite surfaces – AGR Reactors
Benefits
- Small size
- High radiation tolerant
- Motorized focus
- The lights in the internal LED-ring can operate underwater as well as in air
Benefits
- 2 channels for individual LED light control
- Available with non-browning lens
- Mirror attachment
- Shielding attachment as option
Benefits
- Different lense option
- Can be operated while suspended by cable only
- Operates via CCU50 series
