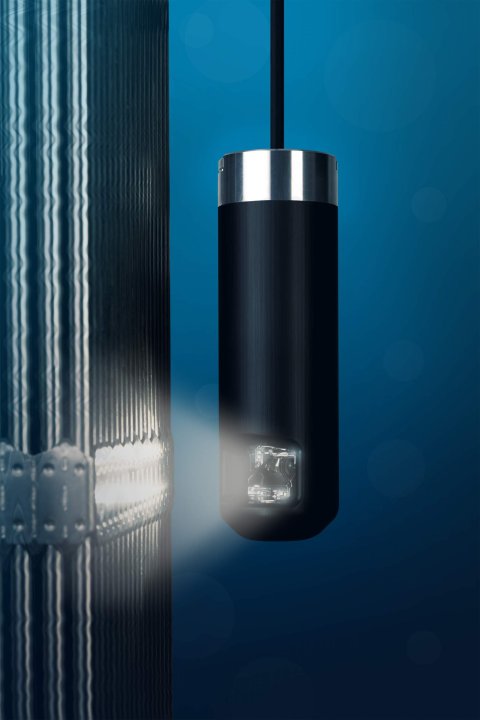

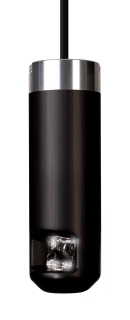

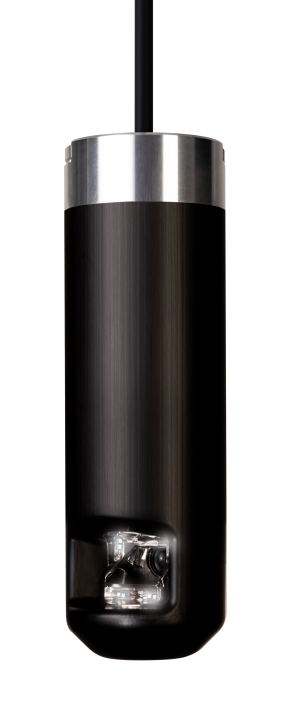

MINI-RAD F30 HD SM

HIGH RADIATION-TOLERANT HD CAMERA WITH MOTORIZED FOCUS, MIRROR & ADDITIONAL SHIELDING

The Mini-RAD F30 HD SM builds on the proven performance of the MINI-RAD F30, now equipped with a mirror attachment and additional tungsten shielding. This advanced configuration delivers a radiation tolerance up to a 100kGy and enables close-to-fuel inspections with confidence and clarity. Featuring full HD color imaging, the MINI-RAD F30 HD SM opens possibilities in environments where previously only monochrome tube cameras could operate, combining compact design, durability, and superior image quality for the most demanding nuclear applications.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Weight
    Housing material
    Stainless steel, and tungsten over molded with PUR
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution
    720p
    Focal length
    4.0 - 8.0 depending on lens options
    Field of view in air
    H52° x V31°, H34° x V21°, H26° x V15°…
    Field of view in water
    H39° x V23°, H26° x V16°, H20° x V12°….

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    2 000 Gy/h (200 000 rad/h)
    Radiation Tolerance (total dose)
    100 000 Gy (10 000 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type
    4 LED-Lights
    Output
    800 lumen, 4500 K

Areas of application

More information about MINI-RAD F30 HD SM

Applications

  • Suitable for mounting on an actuator or tool or ma
  • Reliable performance for close-to-fuel inspections
  • Single fuel rod inspection
  • On Refueling Machine Mast or manipulator
  • Welding applications
  • Inspection of graphite surfaces – AGR Reactors

Benefits

  • Small size
  • High radiation tolerant with the additional shielding
  • Motorized focus
  • The lights in the internal LED-ring can operate underwater as well as in air

Benefits

  • 2 channels for individual LED light control
  • Available with non-browning lens
  • Mirror attachment
  • Radiation shield

Benefits

  • Different lense options
  • Can be operated while suspended by cable only
  • Operates via CCU50 series
