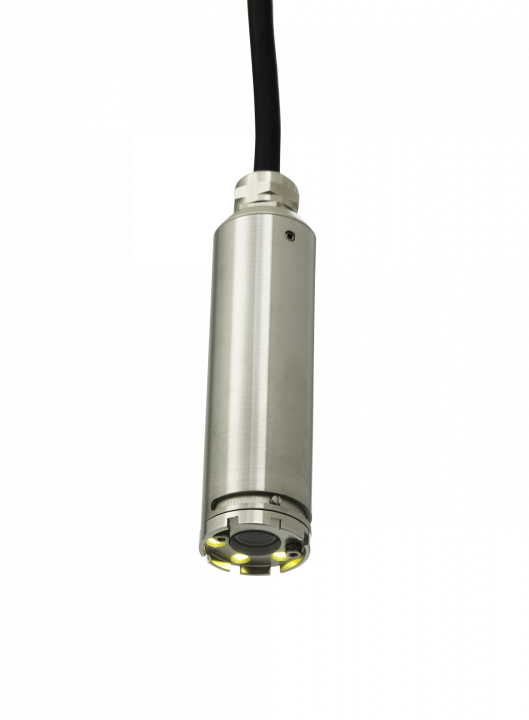

N29F

MINI SD CAMERA

The N29F is a mini color camera available with or without LED-ring lighting. Its small size makes it suitable for inspection and monitoring of confined spaces in reactor and fuel pools. The camera can easily be adjusted to different areas of interest by changing lenses and setting focus from the outside.

Prefer units:

Technical specifications

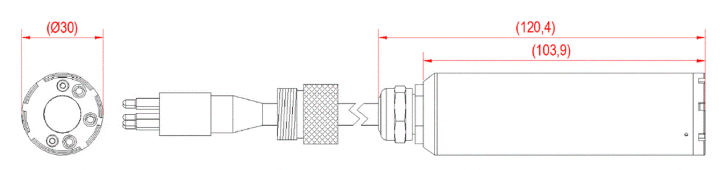

  • Physical Characteristics

    Width
    Length
    Weight
    Housing material
    Stainless steel
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution SD version
    480 TV-lines
    Focus
    Focus manually adjusted

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    20 Gy/h (2 000 rad/h)
    Radiation Tolerance (total dose)
    3 000 Gy (300 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type (optional)

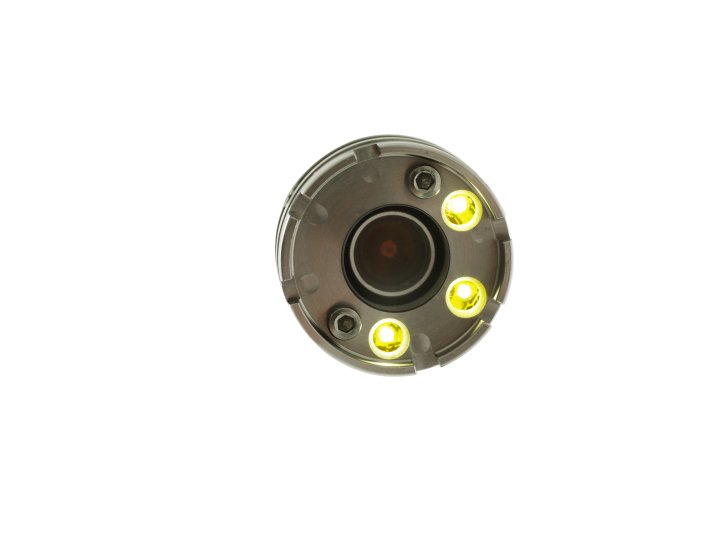

    Internal LED-ring (optional)

  • Power and LED Control Box

    Dimensions
    100 x 108 x 42 mm (3.94"x4.26"x1.65")
    Maximum temperature
    60°C, 140°F
    Input voltage
    100V - 230V

Areas of application

More information about N29F

Applications

  • Suitable for mounting on an actuator or tool
  • Refueling Machine
  • Welding applications

Benefits

  • Small size
  • Radiation tolerant
  • Manually focus
  • The lights in the internal LED-ring can operate underwater as well as in air
  • Comes with a power and LED control box. 100-230 VAC power input. Composite video output, BNC contacts

Benefits

  • Exchangeable camera module
  • Can be operated while suspended by cable only
  • Remotely controlled LED intensity
  • Different lens options
