PTZ170 HDC

FUEL INSPECTION FULL-HD CAMERA

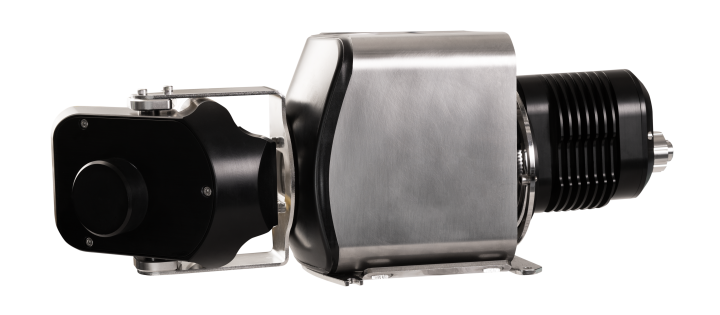

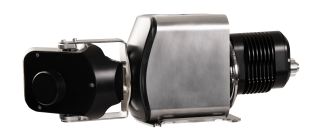

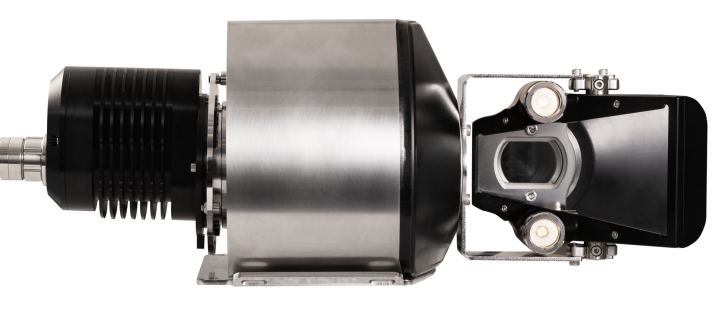

The PTZ170 HDC is engineered for detailed close-up inspections with Full-HD imaging of highly irradiated fuel. It is widely used in 4-FACE fuel inspection systems, fresh fuel elevators, fuel preparation machines, and other manipulators, and has been successfully delivered for PWR, BWR, VVER and CANDU reactors. The camera features precise pan & tilt movements and active internal cooling, ensuring reliable performance even in the most demanding nuclear environments.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Underwater weight
    Housing material
    Stainless steel EN 1.4301, AISI 304 Anodized Aluminum
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution
    1080p, Full-HD
    Zoom
    x100 (x10 optical, x10 digital)
    Horizontal Angle View
    47° (wide end)

  • Mechanical Features

    Pan Angle
    -20° to +20°
    Tilt Angle
    -90° to +90°

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    10 000 Gy/h (50 000 rad/h)
    Radiation Tolerance (total dose)
    300 000 Gy (30 000 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type
    2 LED-lights
    Output
    1800 lumen
    Beam Angle
    38°

Areas of application

More information about PTZ170 HDC

Applications

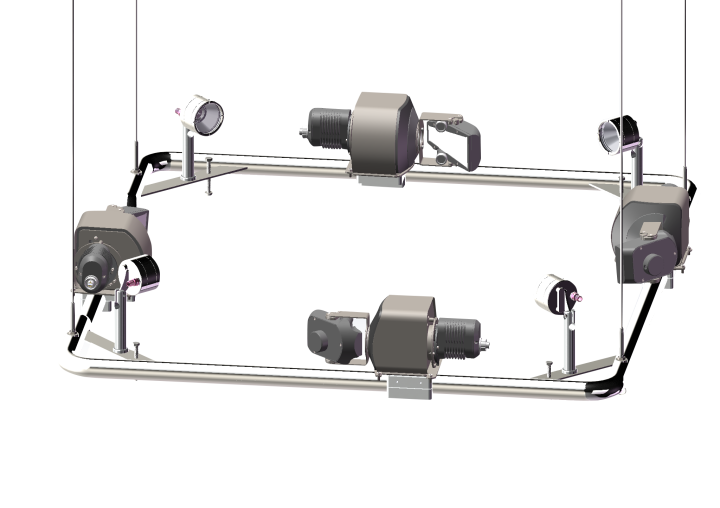

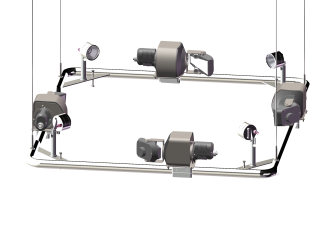

  • For placement on 4-face fuel inspection system rig
  • For placement on fresh fuel elevator
  • For placemen on fuel preparation machine

Benefits

  • Full-HD resolution
  • Very high radiation tolerance
  • Auto-focus and auto-iris
  • Tilt function integrated
  • Pan function integrated
  • LED lights integrated
