Z630

HD ZOOM CAMERA

The Z630 is a radiation-tolerant color zoom camera designed for precision inspections in confined spaces. It delivers sharp focus and detailed close-up imaging, supported by twelve powerful front-mounted LED lights for superior visibility. Compact and robust, the Z630 is ideal for applications in tight areas such as beltline regions, nozzles, and pipes, where reliable performance is critical.

Prefer units:

Technical specifications

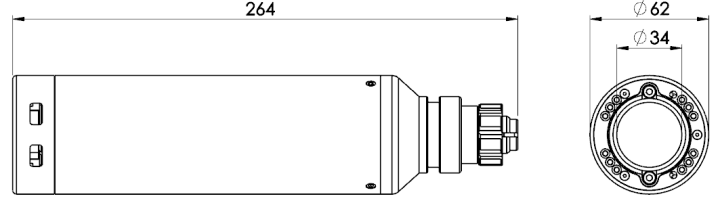

  • Physical Characteristics

    Width
    Length
    Weight
    Housing material
    Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316, Anodized Aluminum
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution HD version
    720p
    Resolution SD version
    720 TV-lines
    Zoom
    x100 (x10 optical, x10 digital)
    HD Horizontal Angle of View
    50°(wide end) to 5°(tele end)
    SD Horizontal Angle of View
    35° (wide end), 5° (tele end)

  • Mechanical Features

    Pan Angle
    360°
    Tilt Angle
    ±55°

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    500 Gy/h (50 000 rad/h)
    Radiation Tolerance (total dose)
    5 000 Gy (500 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type (optional)
    12 ea high power internal LED lights

Areas of application

More information about Z630

Applications

  • Designed for underwater use in a higher radiation areas
  • Suitable camera for tooling when pan & tilt movements are not necessary
  • Welding applications
  • Inside beltline

Benefits

  • Auto-focus and auto-iris
  • Powerful optical zoom
  • Easy maintenance
  • Small camera- Ø 62 mm
  • 12 high powered LED lights
  • Available in SD & HD versions

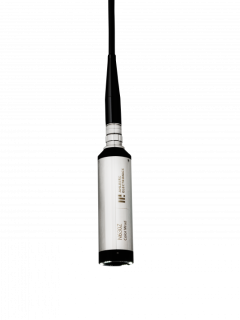

  • Can be operated while suspended by cable only
