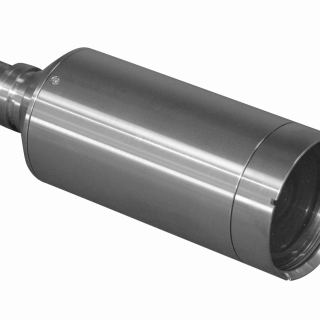

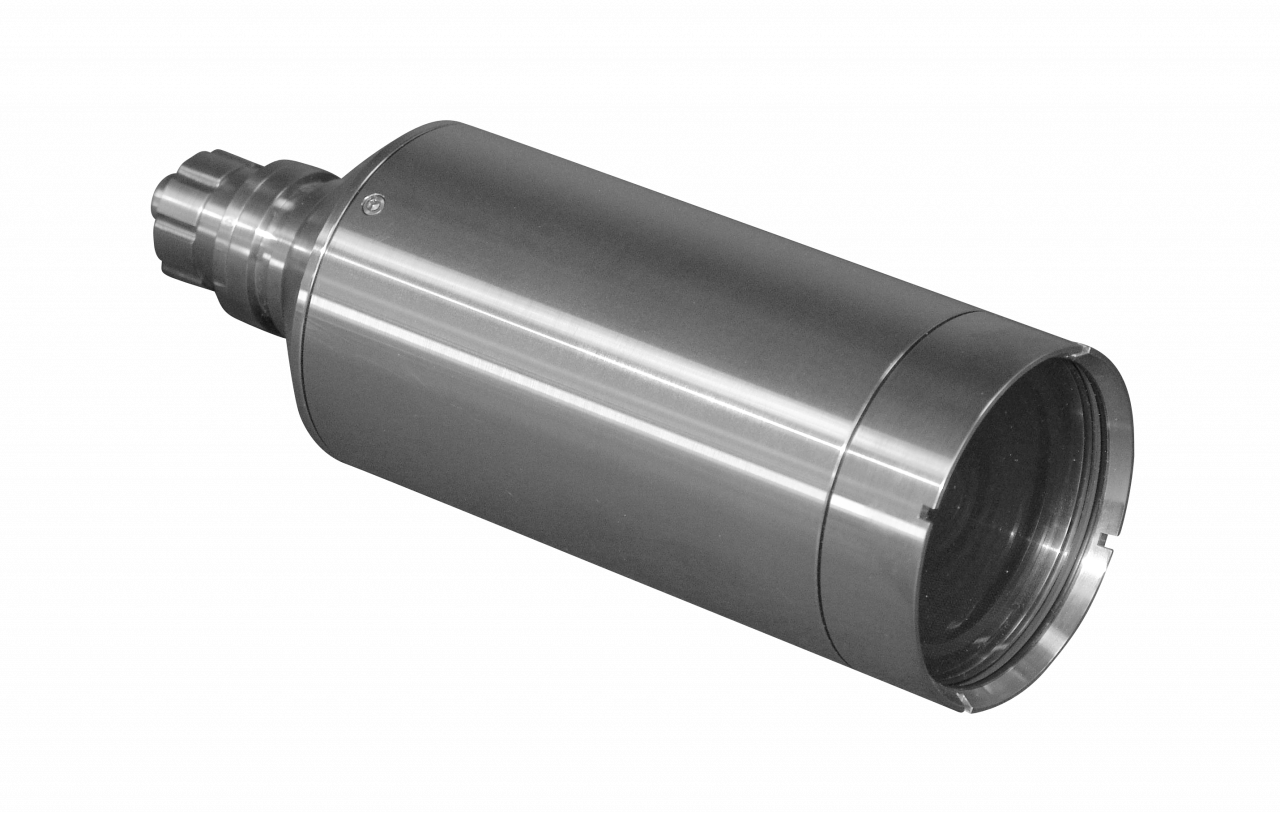

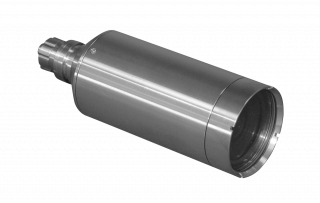

Z71

HD ZOOM CAMERA

The Z71 is a radiation-hardened HD zoom color camera designed for demanding nuclear applications. It delivers high-resolution imaging with outstanding color reproduction and exceptional low-light sensitivity, ensuring clear and reliable visuals even in challenging environments.

Prefer units:

Technical specifications

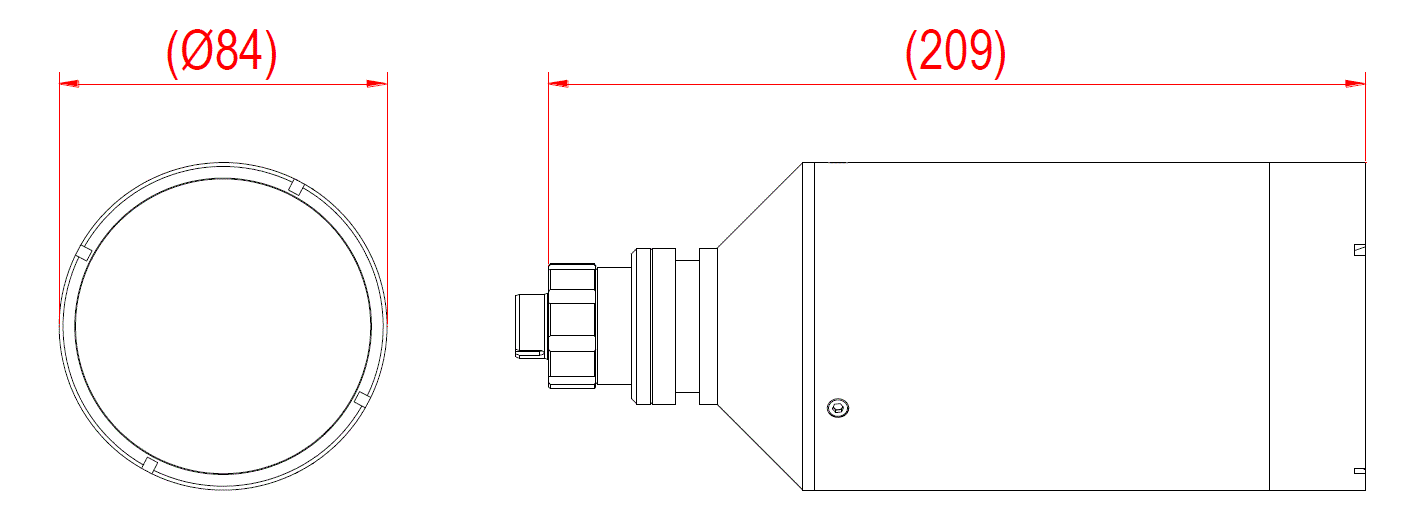

  • Physical Characteristics

    Width
    Length
    Weight
    Housing material
    Stainless steel EN 1.4301
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution SD
    470-720 TV-lines
    Resolution HD
    720p
    Zoom
    x10-x18 optical x4-x10 digital (depending on module choice)
    SD horizontal angle of view
    ~50° (wide end), ~5° (tele end)
    Minimum distance to object
    5 mm (0.20")

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    500 Gy/h (50 000 rad/h)
    Radiation Tolerance (total dose)
    1 200 Gy (120 000 rad)
    Maximum Operating Temperature
    50°C (short-term up to 70°C) 122°F (short-term up to 158°F)
    Water Tightness

Areas of application

More information about Z71

Applications

  • Designed for underwater use in radiation areas
  • Suitable camera for tooling when pan & tilt movements are not necessary

Benefits

  • Auto-focus and auto-iris
  • Powerful optical zoom
  • Easy maintenance
  • Low light sensitivity
  • Easy to mount on a pan & tilt unit
