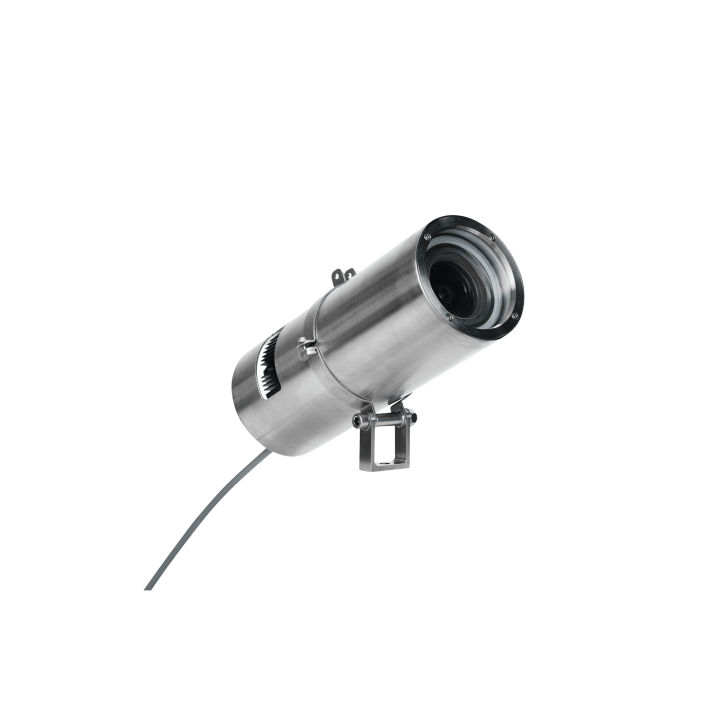

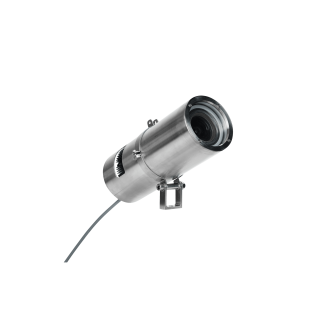

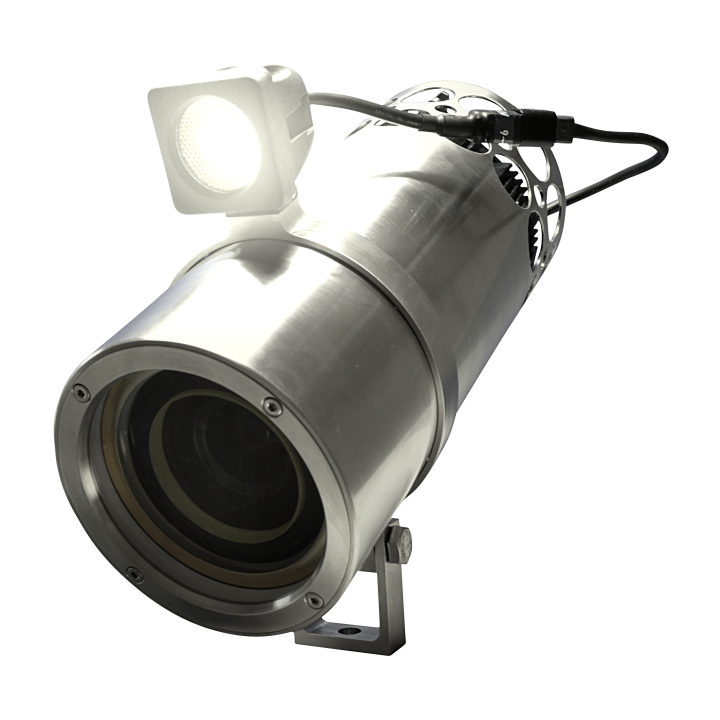

CCTV129

HIGH TEMPERATURE GAMMA AND NEUTRON TOLERANT CCTV CAMERA

The CCTV129 is designed for operation in areas with medium and high levels of gamma and neutron radiation. The camera features an internal active cooling system for enduring high temperatures such as in RCP areas where it’s usually installed.

Prefer units:

Technical specifications

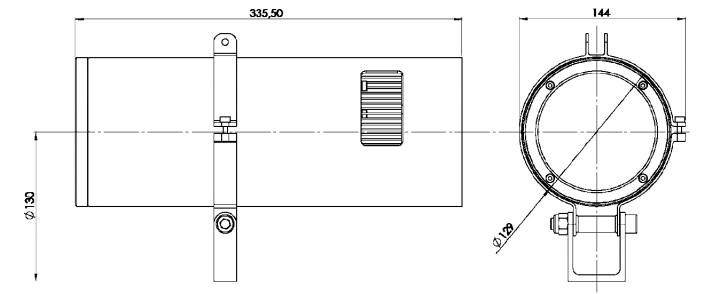

  • Physical Characteristics

    Width
    Length
    Weight
    Housing material
    Stainless steel EN 1.4301

  • Optical Features

    Resolution SD
    720 TV-lines
    Zoom
    x100 (x10 optical, x10 digital)
    Horizontal Angle View SD
    36° (wide end), 5.1° (tele end)

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    500 Gy/h (50 000 rad/h)
    Radiation Tolerance (total dose)
    5 000 Gy (500 000 rad)
    Maximum Operating Temperature

  • Cooling

    Cooling type
    Peltier elements

Areas of application

More information about CCTV129

Applications

  • Designed for areas with medium and high levels of gamma and neutron radiation
  • Typically placed in the Reactor Coolant Pump area in a PWR

Benefits

  • Auto-focus and auto-iris
  • Gamma and neutron-protection
  • Easy maintenance
  • Active cooling for high ambient temperatures
  • Available in SD/HD video versions
