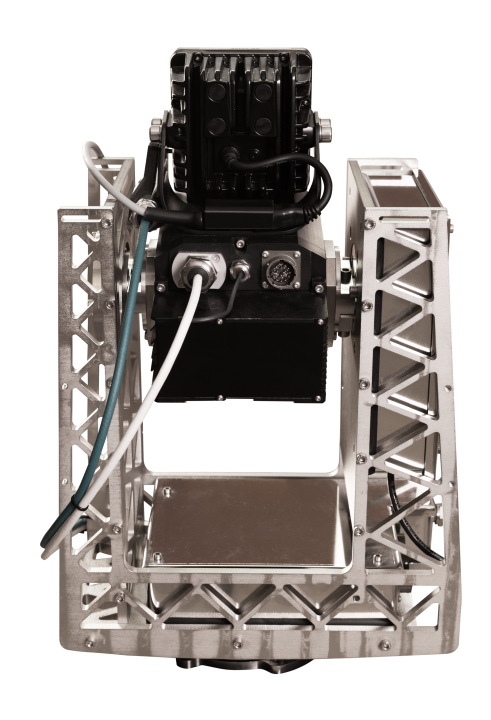

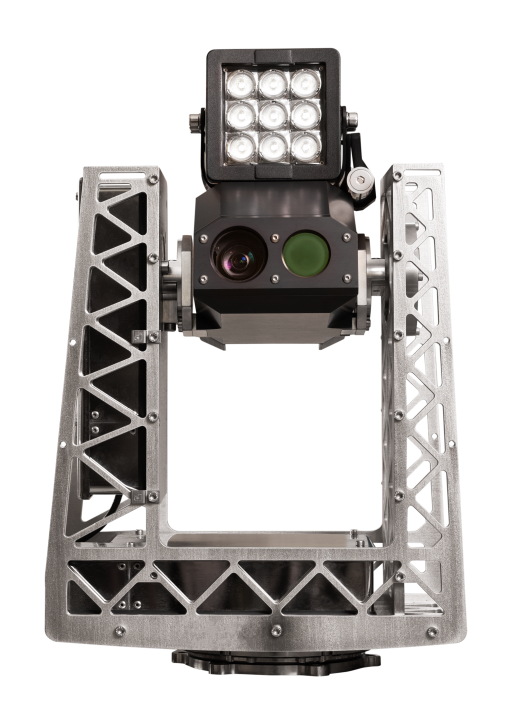

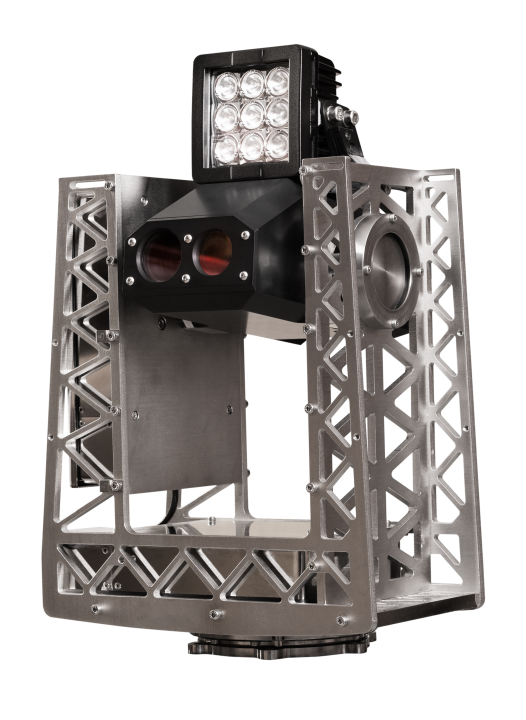

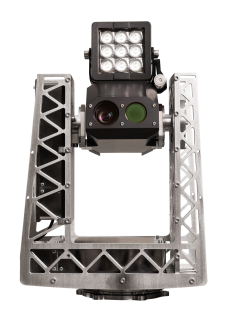

CCTV40TH

Combined thermographic and visual camera

CCTV40TH is a combined thermographic and visual camera. Inside the camera, the thermographic imaging sensor measures temperature differences of critical equipment and gives the operators an early warning of undesired behaviors. The visual sensor helps the operator with orientation in the surveillance area.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Housing material
    Anodized aluminum

  • Optical Features

    Resolution
    700 TV-lines
    Resolution IR
    640x510 pixels
    Zoom
    x100 (x10 optical, x10 digital)

  • Thermografic sensor

    Focus
    Fixed
    Thermal sensitivity
    <0.06°C @ 32°C (90°F) / 50 mK

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    1 Gy/h (100 rad/h)
    Radiation Tolerance (total dose)
    200 Gy (20 000 rad)
    Maximum Operating Temperature

  • Cooling

    Cooling type
    Peltier elements

Areas of application

More information about CCTV40TH

Applications

  • Camera for combining visual and thermal imaging of areas
  • Made for surveillance of rooms with critical equipment

Benefits

  • Surface temperature measurement with high sensitivity

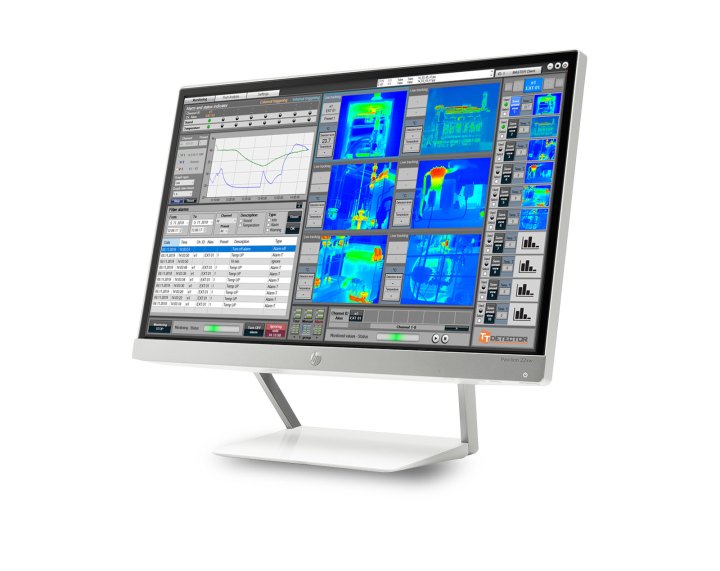

  • Compatible with Thermal Detection System software
  • Can be completed with powerful LED light, microphone and pan&tilt unit
  • Helps to detect issues before they become costly failures
