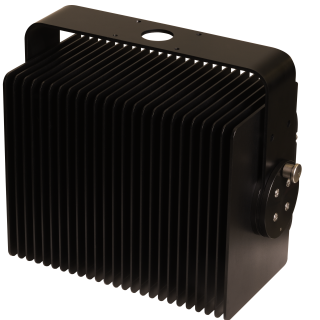

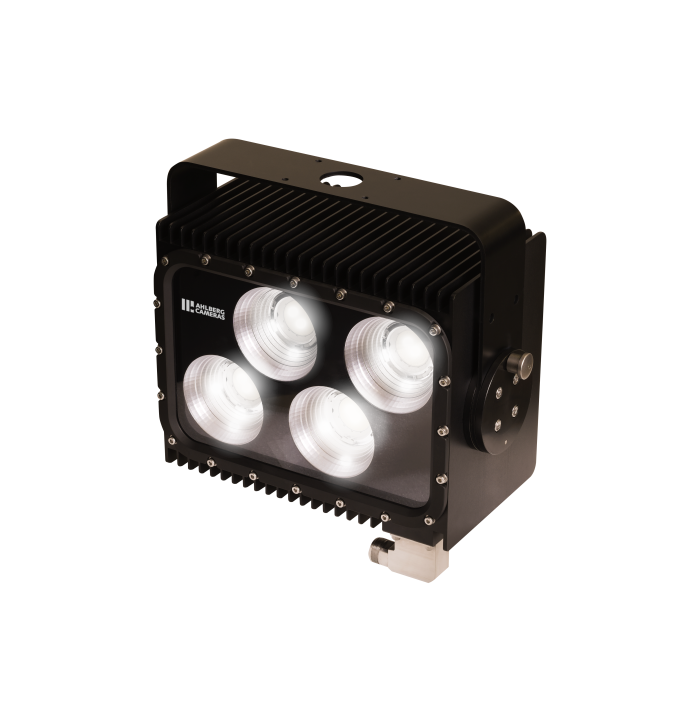

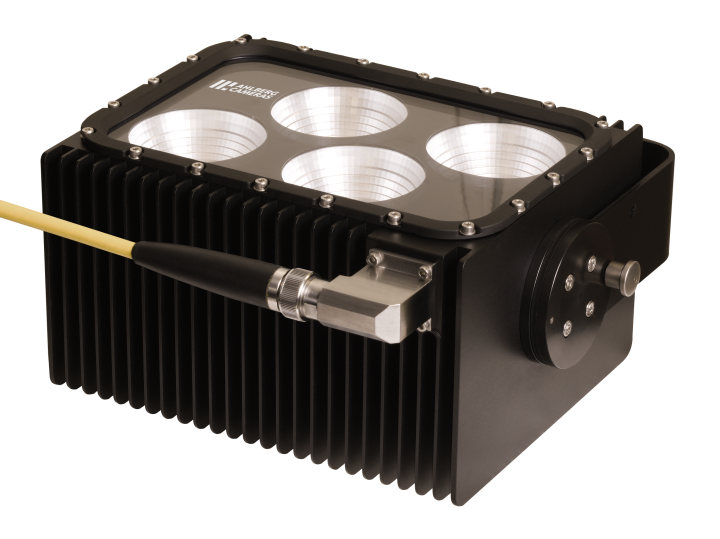

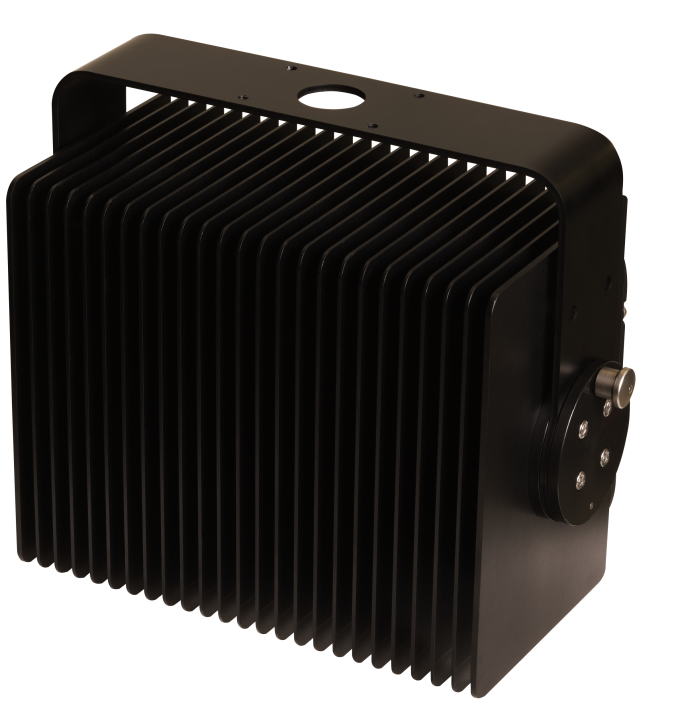

AHL-LIGHT 50

ROBUST AND RADIATION-TOLERANT LED LIGHT FOR USE IN AIR AND WATER

The AHL-LIGHT 50 is a high-performance, radiation-tolerant industrial LED light, engineered for nuclear environments. With unique capability of operating in both air and water, AHL-LIGHT 50 is multiplying its work applications in irradiated areas. It features a luminous flux of 55 000 lumens at 3 000K or 58 000 lumens at 5 000K to 3 bars pressure at IP68 rating. Minimal maintenance is ensured by using LED technology with over 50 000 operational hours.

Prefer units:

Technical specifications

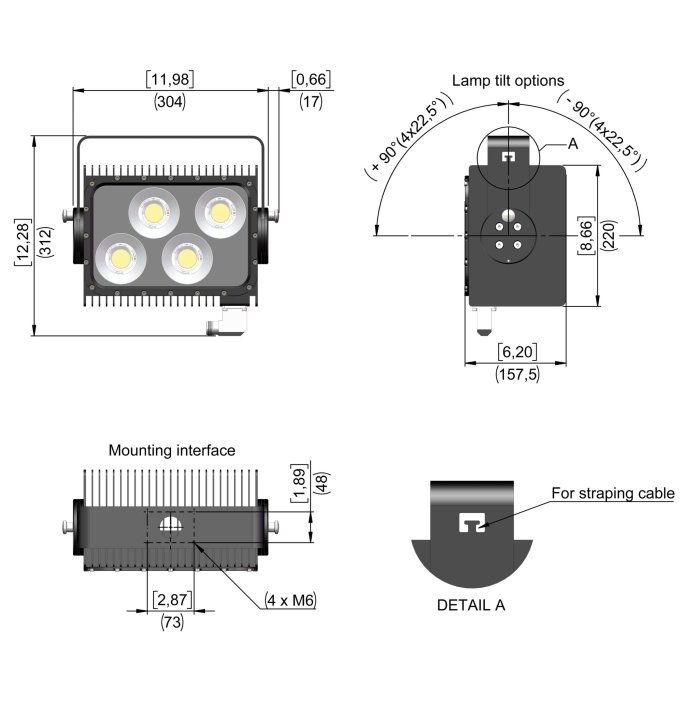

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Weight under water
    Housing material
    Anodized Aluminum (EN AW-6082 T6), Stainless steel (EN 1.4301)
    Front glass material
    Polycarbonate

  • Lighting Features

    Type
    4 LED-Lights
    Typical luminous flux
    58 000lm @5000K, 55 000lm @ 3000K
    Color rendering index
    80
    Color temperature
    3000K or 5000K
    Lighting angle
    64°
    Life time
    >50 000 h

  • Environmental Tolerances

    Radiation tolerance (total dose)
    Maximum temperature

  • Cable Features

    Maximum cable length
    40 m

Areas of application

More information about AHL-LIGHT 50

Applications

  • For mobile and permanent underwater and air use in fuel and reactor pools.
  • For mobile and permanent in-air use in hot-cells, waste management facilities and NPP buildings.
  • High-temperature tolerant lighting in reactor zones.
  • 24/7 illumination in high radiation areas.

Benefits

  • Multipurpose use.
  • 58 000 lumen light output.
  • Long-term use in air and underwater.
  • Low maintenance costs due to its long lifetime.
  • FME approved design.
  • Different brackets and holders can be provided upon customer request to fulfill specific needs.
