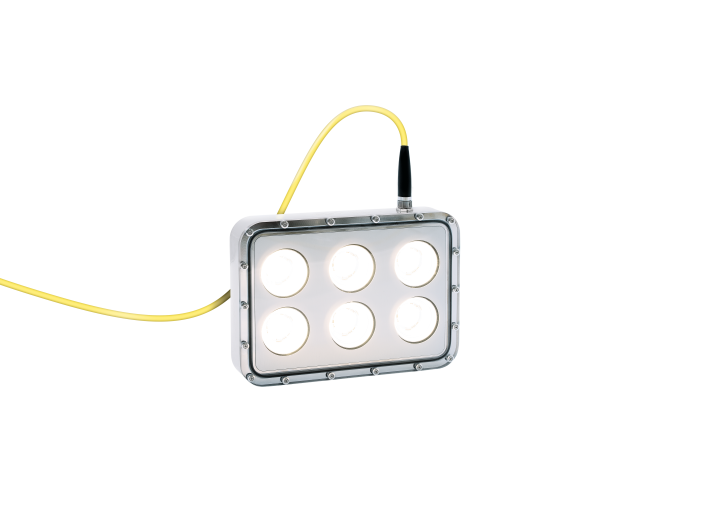

AHL-LIGHT 70

LED POND LIGHT

The AHL-LIGHT 70 is a robust LED pond light. It is used for powerful illumination of nuclear underwater work areas and fuel pools. The optimized reflector design increases the light output and ensures an even light distribution. The LED technology allows long-term operation and greatly reduced maintenance work compared to ordinary halogen lights.

Prefer units:

Technical specifications

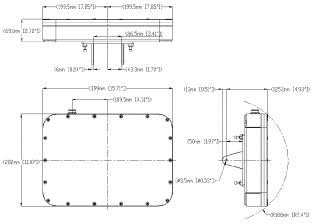

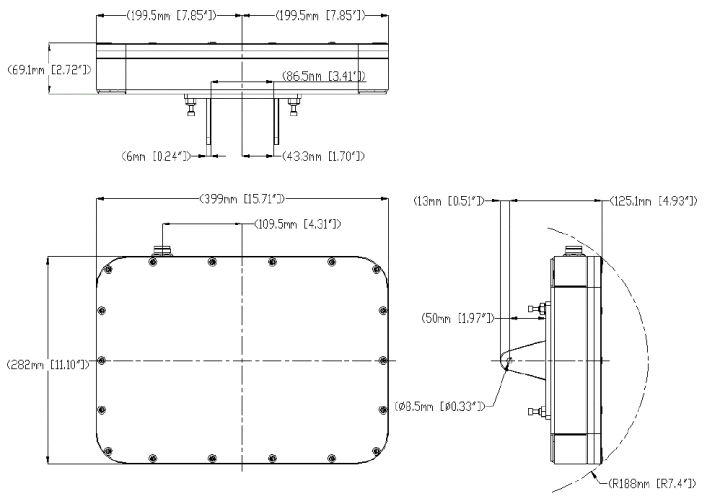

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Housing material
    Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316
    Front glass material
    Hard coated polycarbonate

  • Lighting Features

    Type
    6 LED-Lights 100-240 VAC, 50/60 HZ, 480 W
    Typical luminous flux
    87 000lm @5000K, 83 000lm @ 3000K
    Color rendering index
    80
    Color temperature
    3000K or 5000K
    Lighting angle
    64° x 64°
    Life time
    >50 000 h

  • Environmental Tolerances

    Radiation tolerance (total dose)
    Maximum temperature

  • Cable Features

    Maximum cable length
    250 m

Areas of application

More information about AHL-LIGHT 70

Applications

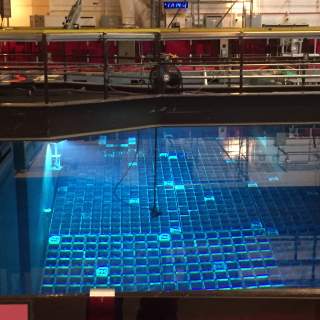

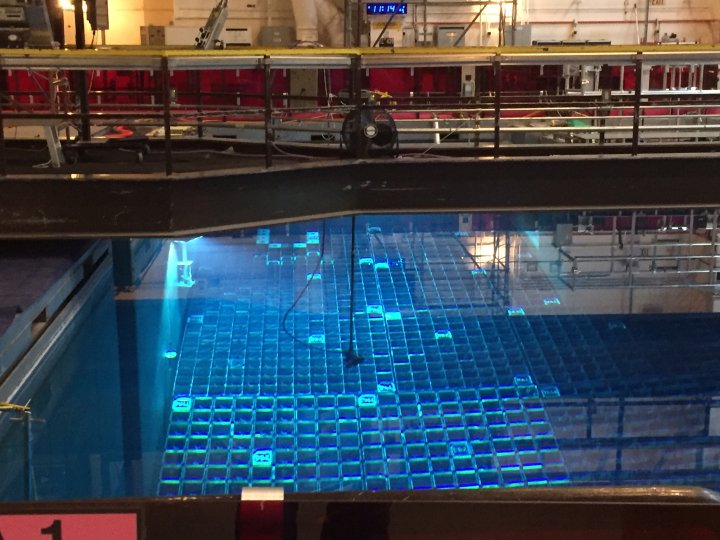

  • Underwater nuclear pond light
  • Ideal for work in reactor and fuel pools
  • The light is delivered with a power supply that is placed either in air (on the railing or on the wall) or underwater

Benefits

  • 87 000 lumen light output
  • Low maintenance costs due to its long life-time
  • Overheating protection during unintended use in air
  • FME approved design – no loose parts can enter the pool water
  • Power supply can be placed in air or underwater
