Mast Camera 200 HD

BWR REFUELING MACHINE CAMERA

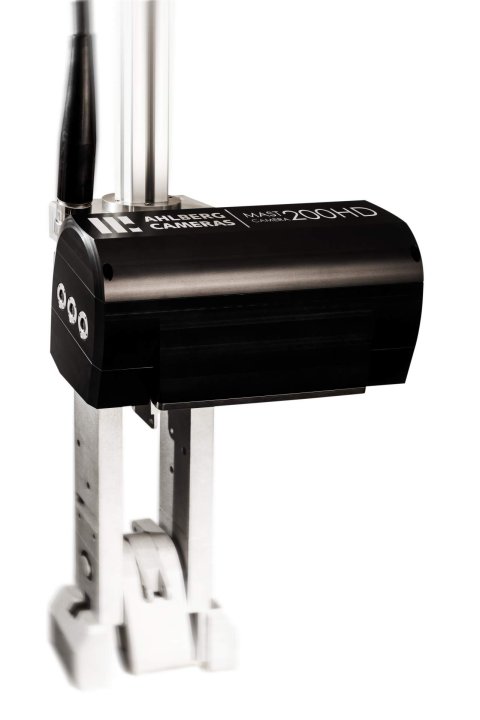

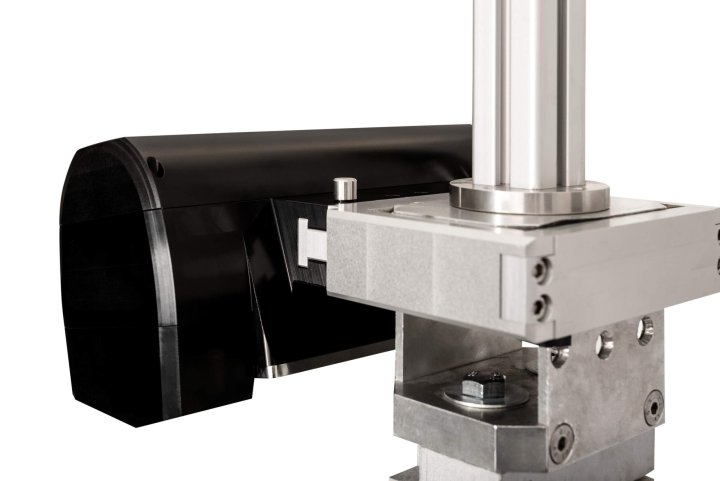

The Mast Camera 200 HD is a high radiation tolerant Full-HD camera designed for permanent or temporary installation on a BWR refueling machine mast. It enables the machine operator to read the serial number on the upper tie plate / bail handle. It also helps the operator to view the lower tie plate / nose cone area when guiding the fuel back through the top guide. The Mast Camera 200 HD is excellent in a BWR for supervision during fuel handling and core mapping.

Prefer units:

Technical specifications

  • Physical Characteristics

    Width
    Length
    Heigth
    Weight
    Housing material
    Stainless steel EN 1.4303 anodized aluminum
    Front glass material
    Polycarbonate

  • Optical Features

    Resolution
    1080p, 25/30 fps
    Zoom
    x10 optical x4 digital giving x40

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    1 000 Gy/h (100 000 rad/h)
    Radiation Tolerance (total dose)
    10 000 Gy (1 000 000 rad)
    Maximum Operating Temperature
    Water Tightness

  • Integrated Lightning

    Type
    6 LED-lights
    Output
    5400 lumen

Areas of application

More information about Mast Camera 200HD

Applications

  • Supervision during fuel handling
  • Core mapping

Benefits

  • The new Mast Camera 200 HD can easily be incorporated to existing Mast Camera systems
  • Auto-positioning functions of zoom, tilt, and focus

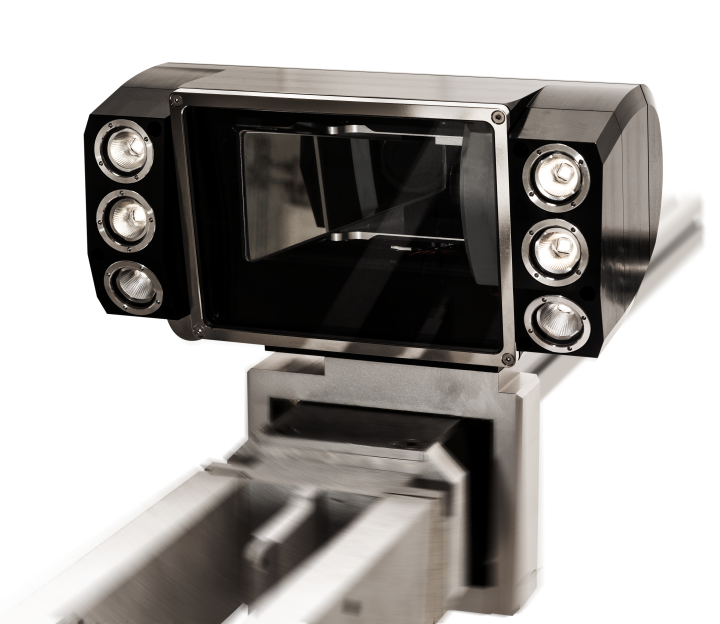

  • 4 lights aimed at fuel assembly lower end at 4-5m (13-16 ft), 2 lights aimed at gripper at 0,5-1,0m (1.6-3.3 ft)
  • 10x more light sensitive than previous Mast Camera version
