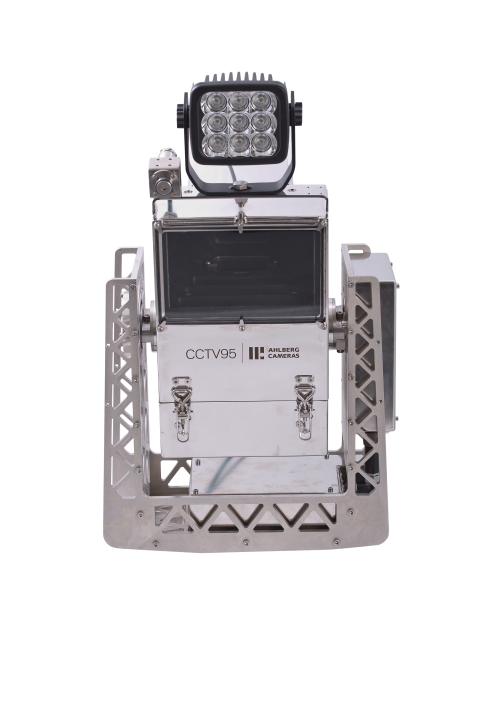

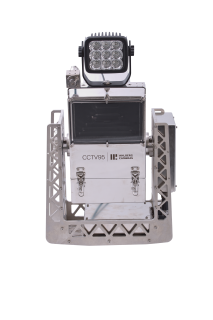

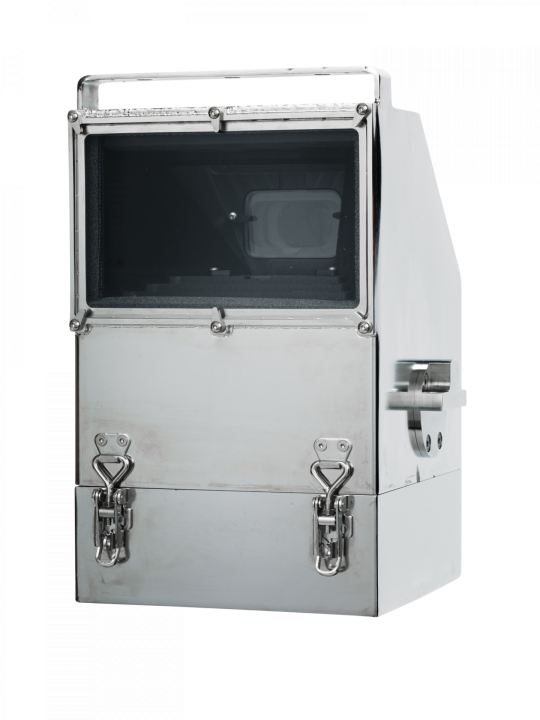

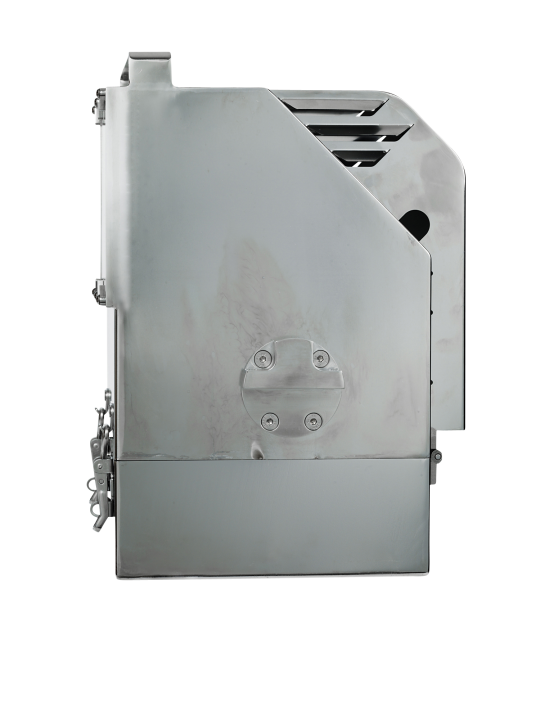

CCTV95

HIGH TEMPERATURE GAMMA AND NEUTRON TOLERANT CCTV CAMERA

The CCTV95 is designed for areas with high levels of temperature. gamma and neutron radiation. A typical surveillance area is the steam generator boxes of VVER reactors. The camera features an internal cooling system for handling high temperatures and humidity in the containment during a potential loss of cooling accident (LOCA).

Prefer units:

Technical specifications

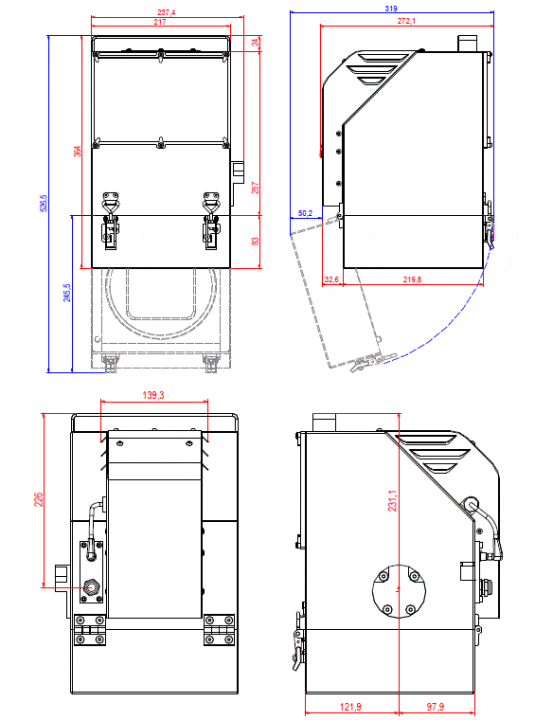

  • Physical Characteristics

    Width
    Length
    Height
    Weight
    Housing material
    Stainless steel EN 1.4301
    Front glass material
    Polycarbonat

  • Optical Features

    Resolution SD
    720 TV-lines
    Zoom
    x100 (x10 optical, x10 digital)
    Horizontal Angle View SD
    37.5° (wide end), 4° (tele end)

  • Environmental Tolerances

    Radiation Tolerance (dose rate)
    1 800 Gy/h (180 000 rad/h)
    Radiation Tolerance (total dose)
    18 000 Gy (1 800 000 rad)
    Maximum Operating Temperature

  • Cooling

    Cooling type
    Peltier elements

Areas of application

More information about CCTV95

Applications

  • CCTV camera for nuclear plant areas with high levels of temperature, gamma and neutron radiation
  • Surveillance of containment or drywell where possible high temperature is handled by the camera´s internal cooling system

Benefits

  • Auto-focus and auto-iris
  • Gamma and neutron-protection
  • Easy maintenance
  • Active cooling for high ambient temperatures
  • Available in SD/HD video versions
